GGP800/1200/130H-E hose grout station for sale

grout station sale
  • grout station sale
  • grout station sale
  • grout station sale
  • grout station sale
  • grout station sale
  • grout station sale
  • grout station sale
Model No.︰GGP800/1200/130
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 9500 / set
Minimum Order︰1 set
Share on:

 Total 73 Related Items
Prev3738394041Next

Product Description

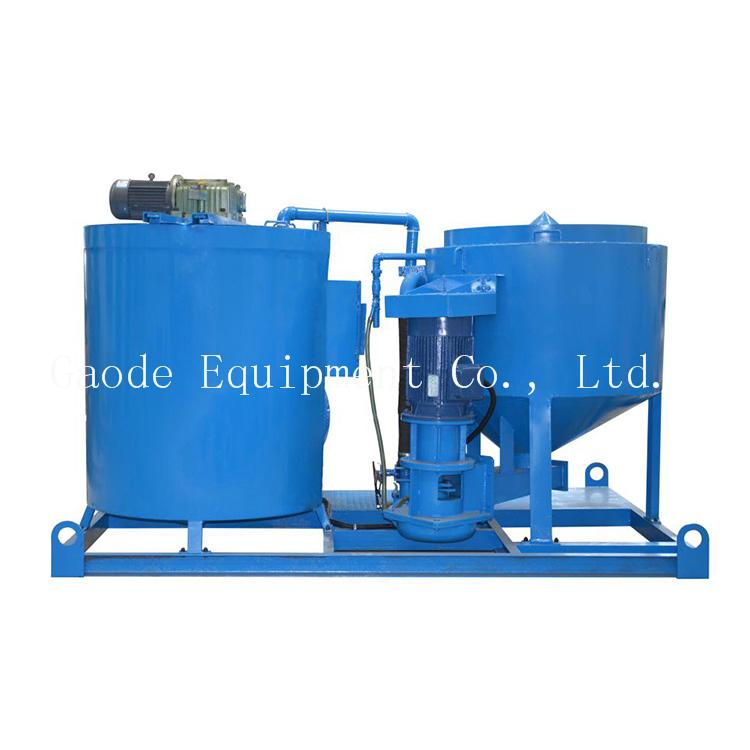

GGP800/1200/130H-E hose grout station for sale

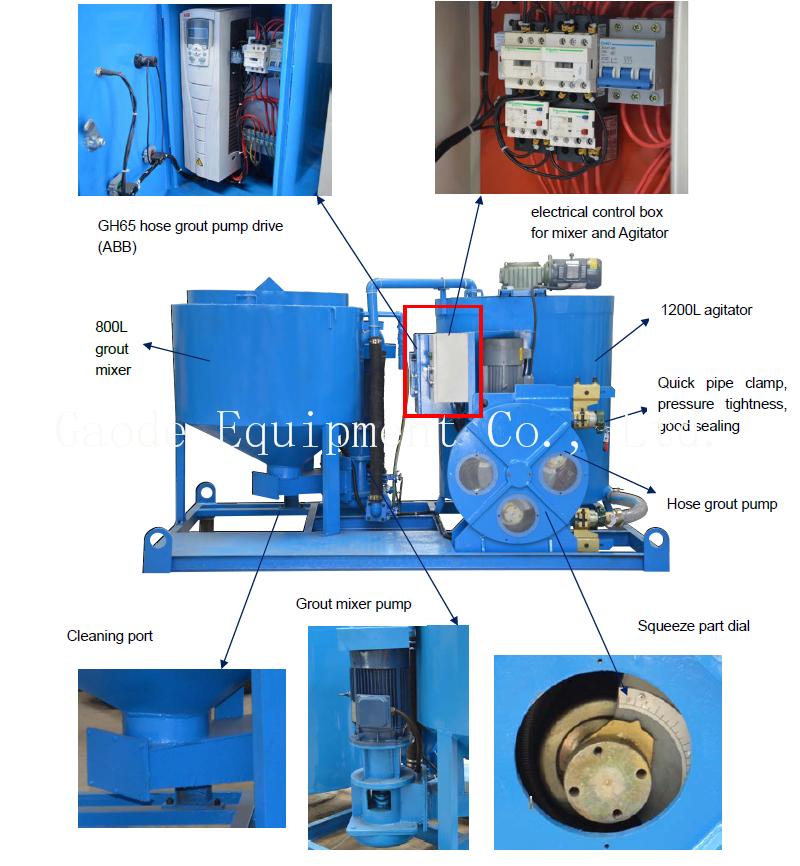

Hose grout station feature:

1. Compact size, It is combination of mixer, agitator and squeeze hose pump and power in one base frame;

2. Flow is adjustable;

3. Squeeze hose pump, hose is the only spare part. It is easy to operate and maintenance;

4. Butterfly connection mixer and agitator, flexible switching;

5. Imported electrical components, it is safe and reliable;

6. High-power and high-speed eddy current pulping, it is fast and evenly;

7. With CE ISO etc. certification.

Hose grout station application:

1. Civil Engineering - dam foundations, tunnels, mining, soil nails, tiebacks, earth anchors, cable and rock bolts;

2. Structural – building and bridge restoration, foundation stabilization, foundation raising, soil compaction grouting; soil & rock grouting;

3. Construction - pavement under sealing, slab jacking and slab raising;

4. Marine - underwater foundations, piers, breakers, shoreline foundations;

5. Mining - tunnel lining, contact grouting, shaft waterproofing;

6. Utilities - encasements, waterproofing, slope line grouting;

7. Geotechnical - deep well casing, monitor wells, well sealing and abandonment;

Hose grout station technical data:

Description

Data

grout station type

GGP800/1200/130H

Mixer Volume

800L

Mixer production(w/c ratio=1)

16m3/h

Circulation capacity

1500l/min

Suitable W/C Ratio

0.5 to 1

Mixer electric motor power

15kw, 1450rpm

Agitator Volume

1200L

Agitator Speed

36rpm

Agitator electric motor power

2.2kw, 1450rpm

Grout Pump Type

hose grout pump

Grout pump output and pressure

30-130L/min

0-1.5Mpa

Grout pump electric motor power

7.5kw, 1450rpm

hose grout station Overall dimension

2900*1920*1860mm

hose grout station weight

1770kg

 Contact Supplier:

Many thanks for visiting our web, we can supply grout station for you. Before we send quotation, please let me know the following question:

1. How about the flow and pressure of the pump you want, please?

2. How about the water and cement ratio, does any sand in?

3. About the power: electric (voltage and frequency) or diesel?

Please tell us your requirements and we will provide you with the corresponding product parameters and quotations. We have many standard models for your option, and we also could customize as per your requirement. If you have any questions, please contact us.

Payment Terms︰TT/LC
Packing︰plastic wrap, plywood case, free-fumigation, standard export packing. as shown below. Or customized.
Lead Time︰in stock. common type 7 working days once confirm
Standards Certificate︰CE ISO
