Thailand GGP500/700/100PI-E Grout Mixer Pump Price

grout mixer price
  • grout mixer price
  • grout mixer price
  • Thailand Grout
  • grout mixer pump
  • grout mixer pump plant
  • grout pump price
  • grout pump price
  • Thailand Grout
  • grout mixer pump
Model No.︰GGP500/700/100
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 8200 / set
Minimum Order︰1 set
Share on:

 Total 73 Related Items
Prev4344454647Next

Product Description

Thailand GGP500/700/100PI-E Grout Mixer Pump Price

Please copy the link to the product website for more products and information

Our website: www.gaodetec.net

Description:

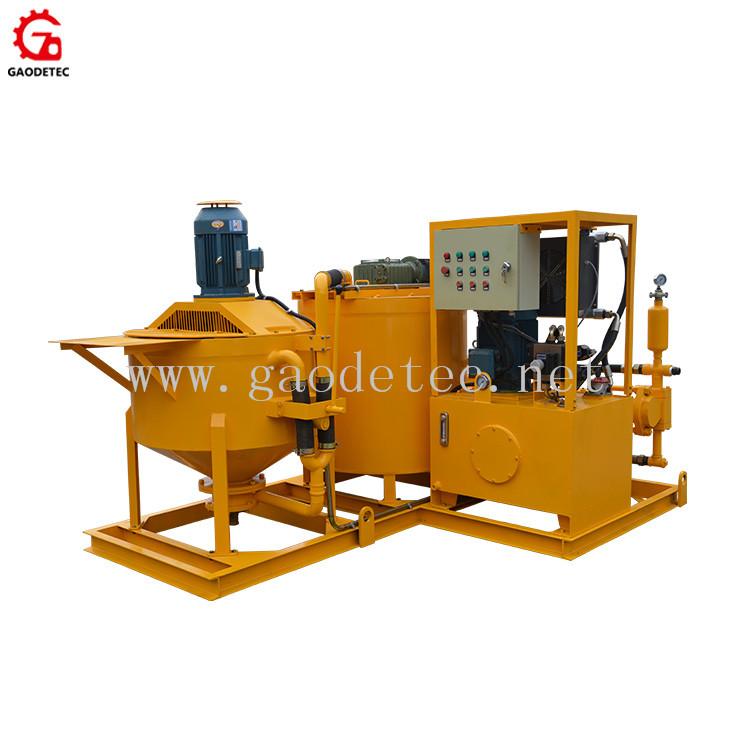

GGP500/700/100PI-E grout station is a combination of mixer, agitator and grout pump in one plant. It is mainly used in highway, railway, hydropower, construction, mining and other ground and underground construction. High speed vortex mixer ensures mix quickly and evenly. Water, cement and other media are quickly mixed into a homogeneous slurry. Then the mixed slurry was delivered to the agitator. Grout pump injects from the mixing drum (storage tank). This ensures a continuous mixing and grouting operations. The grouting pump is hydraulic drive. Grouting pressure and displacement is stepless adjustable. Compact size and it is easy to operate. It also takes up a small space.

Grout Mixer Pump Price Feature:

1. Grouting pressure, displacement is stepless adjustable;

2. Simple structure, light weight, easy maintenance;

3. Double grouting cylinder, continuous output with small pulse;

4.  Less spare parts ensure low maintenance costs;

5. High speed vortex mixer ensures mix quickly and evenly;

6. Mixer and agitator switch by using squeeze handle, it is safe, reliable and easy to operate;

7. The motor has an overload protection function. Hydraulic system with oil temperature overheating protection;

8. With CE, ISO certification.

Grout Mixer Pump Price Application:

1. Civil Engineering - dam foundations, tunnels, mining, soil nails, tiebacks, earth anchors, cable and rock bolts;

2. Structural – building and bridge restoration, foundation stabilization, foundation raising, soil compaction grouting; soil & rock grouting;

3. Construction - pavement under sealing, slab jacking and slab raising;

4. Marine - underwater foundations, piers, breakers, shoreline foundations;

5. Mining - tunnel lining, contact grouting, shaft waterproofing;

6. Utilities - encasements, waterproofing, slope line grouting;

7. Geotechnical - deep well casing, monitor wells, well sealing and abandonment;

Grout Mixer Pump Price Technical data:

Description

Data

Grout Mixer Pump type

GGP500/700/100PI-E

Mixer Volume

500L

Mixer production(w/c ratio=1)

7m3/h

Circulation capacity

1100l/min

Suitable W/C Ratio

0.5 to 1

Mixer electric motor power

7.5kw, 1450rpm

Agitator Volume

700L

Agitator Speed

36rpm

Agitator electric motor power

1.5kw, 1450rpm

Grout Pump Type

piston grout pump

Grout pump output and pressure

0-100L/min

0-5Mpa

Grout pump electric motor power

15kw, 1450rpm

Grout Mixer Pump Overall Dimension

2700x175x1650mm

Grout Mixer Pump Weight

1440kgs

 Contact Supplier:

Many thanks for visiting our web, we can supply grout station for you. Before we send quotation, please let me know the following question:

1. How about the flow and pressure of the pump you want, please?

2. How about the water and cement ratio, does any sand in?

3. About the power: electric (voltage and frequency) or diesel?

Please tell us your requirements and we will provide you with the corresponding product parameters and quotations. We have many standard models for your option, and we also could customize as per your requirement. If you have any questions, please contact us.

Payment Terms︰TT/LC
Packing︰plastic wrap, plywood case, free-fumigation, standard export packing. as shown below. Or customized.
Lead Time︰in stock. common type 7 working days once confirm
Standards Certificate︰CE ISO
