High efficient electric grout equipment to Thailand

  • High efficient electric grout equipment to Thailand
  • grout equipment
  • grout equipment
  • grout equipment
  • grout equipment
  • grout equipment
  • grout equipment
  • grout equipment
  • grout equipment
Model No.︰GGP500/700/100
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 13800 / set
Minimum Order︰1 set
Share on:

 Total 64 Related Items
Prev1011121314Next

Product Description

High Efficient Electric  Grout Equipment to Thailand



Grout Equipment Feature:

1. Grouting pressure, displacement is stepless adjustable;

2. Simple structure, light weight, easy maintenance;

3. Double grouting cylinder, continuous output with small pulse;

4.  Less spare parts ensure low maintenance costs;

5. High speed vortex mixer ensures mix quickly and evenly;

6. Mixer and agitator switch by using squeeze handle, it is safe, reliable and easy to operate;

7. The motor has an overload protection function. Hydraulic system with oil temperature overheating protection;

8. With CE, ISO certification.

Grout Equipment Application:

1. Civil Engineering - dam foundations, tunnels, mining, soil nails, tiebacks, earth anchors, cable and rock bolts;

2. Structural – building and bridge restoration, foundation stabilization, foundation raising, soil compaction grouting; soil & rock grouting;

3. Construction - pavement under sealing, slab jacking and slab raising;

4. Marine - underwater foundations, piers, breakers, shoreline foundations;

5. Mining - tunnel lining, contact grouting, shaft waterproofing;

6. Utilities - encasements, waterproofing, slope line grouting;

7. Geotechnical - deep well casing, monitor wells, well sealing and abandonment;

Grout Equipment Technical data:

Description

Data

Grout plant type

GGP500/700/100PI-E

Mixer Volume

500L

Mixer production(w/c ratio=1)

7m3/h

Circulation capacity

1100l/min

Suitable W/C Ratio

0.5 to 1

Mixer electric motor power

7.5kw, 1450rpm

Agitator Volume

700L

Agitator Speed

36rpm

Agitator electric motor power

1.5kw, 1450rpm

Grout Pump Type

piston grout pump

Grout pump output and pressure

0-100L/min

0-5Mpa

Grout pump electric motor power

15kw, 1450rpm

Grout equipment overall dimension

2700x175x1650mm

Grout equipment weight

1440kgs

Contact Supplier:

Many thanks for visiting our web, we can supply grout station for you. Before we send quotation, please let me know the following question:


1. How about the flow and pressure of the pump you want, please?
2. How about the water and cement ratio, does any sand in?
3. About the power: electric (voltage and frequency) or diesel?


Please tell us your requirements and we will provide you with the corresponding product parameters and quotations. We also could customize as per your requirementIf you have any questions, please contact us.



Payment Terms︰TT/LC
Packing︰plastic wrap, plywood case, free-fumigation, standard export packing. as shown below. Or customized.
Lead Time︰in stock. common type 7 working days once confirm
Standards Certificate︰CE ISO

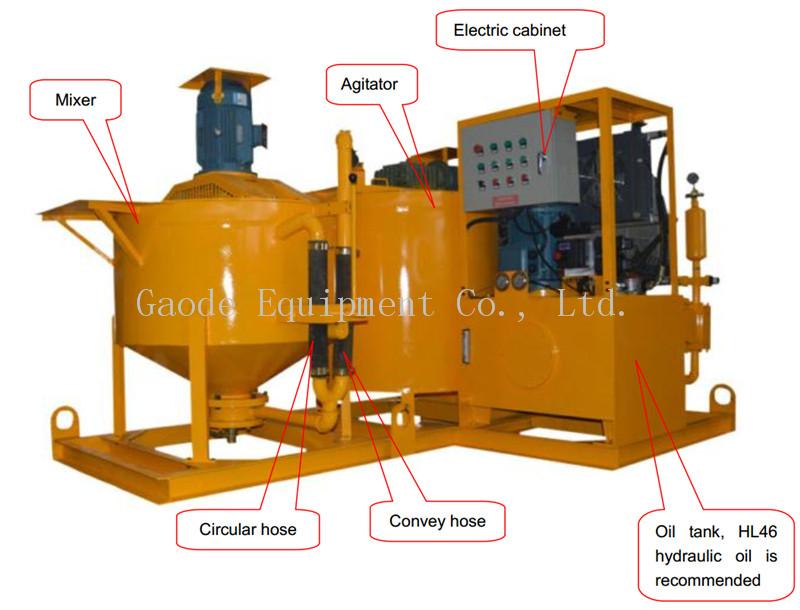

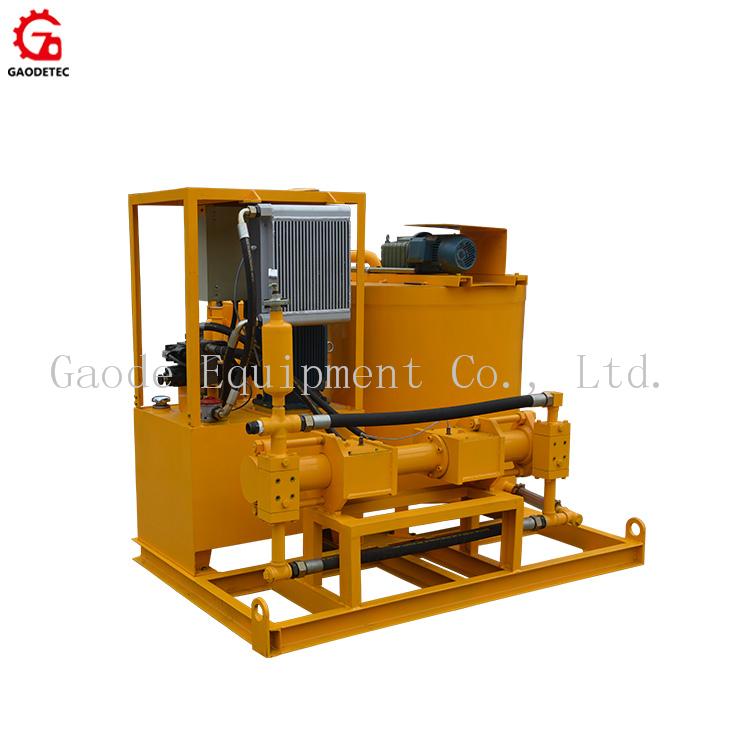

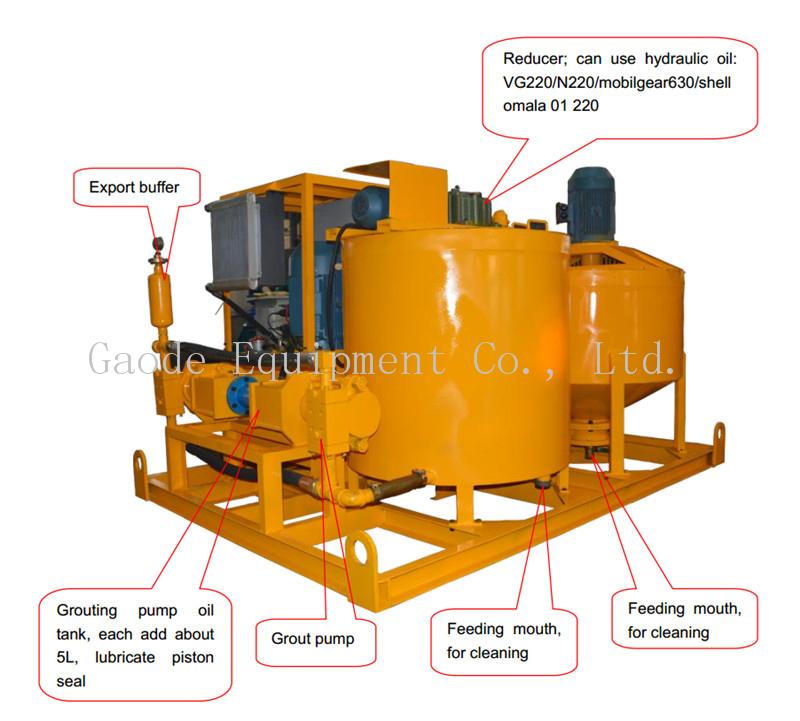

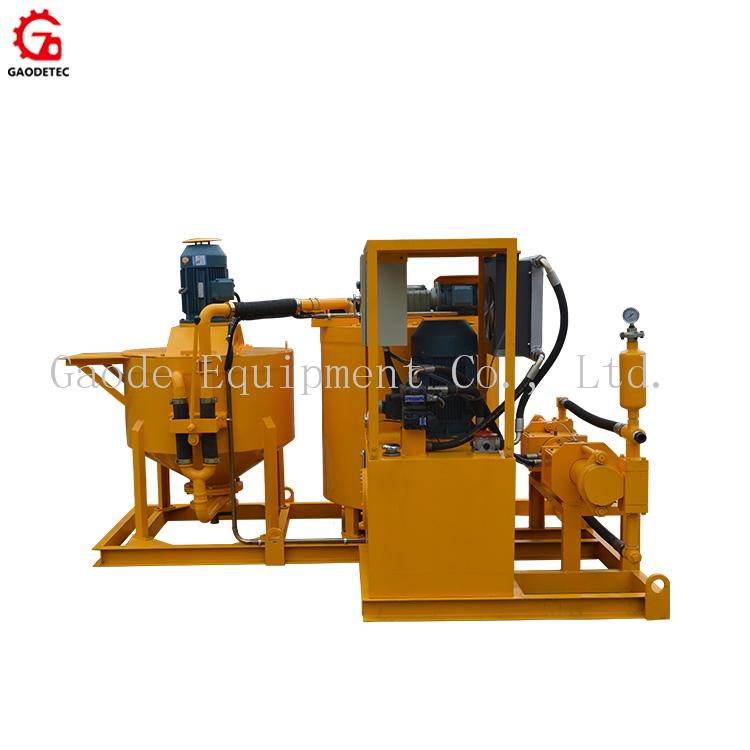

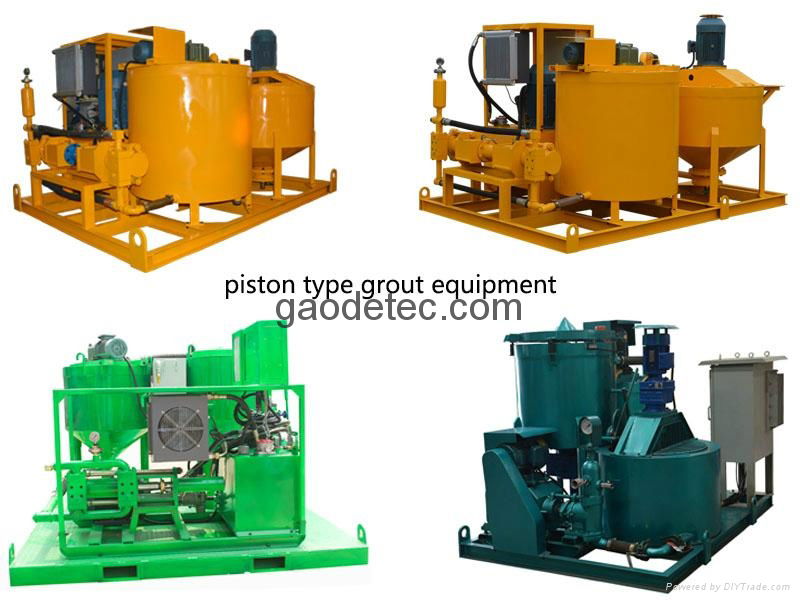

Product Image
