Supply GGP400/700/80 PL-E grout station with factory price

  • Supply GGP400/700/80 PL-E grout station with factory price
  • Supply GGP400/700/80 PL-E grout station with factory price
  • grout station detailed view, grout station with grout record
  • Supply GGP400/700/80 PL-E grout station with factory price
  • Supply GGP400/700/80 PL-E grout station with factory price
  • Supply GGP400/700/80 PL-E grout station with factory price
Model No.︰GGP400/700/80
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 14100 / set
Minimum Order︰1 set
Share on:

 Total 62 Related Items
Prev2728293031Next

Product Description

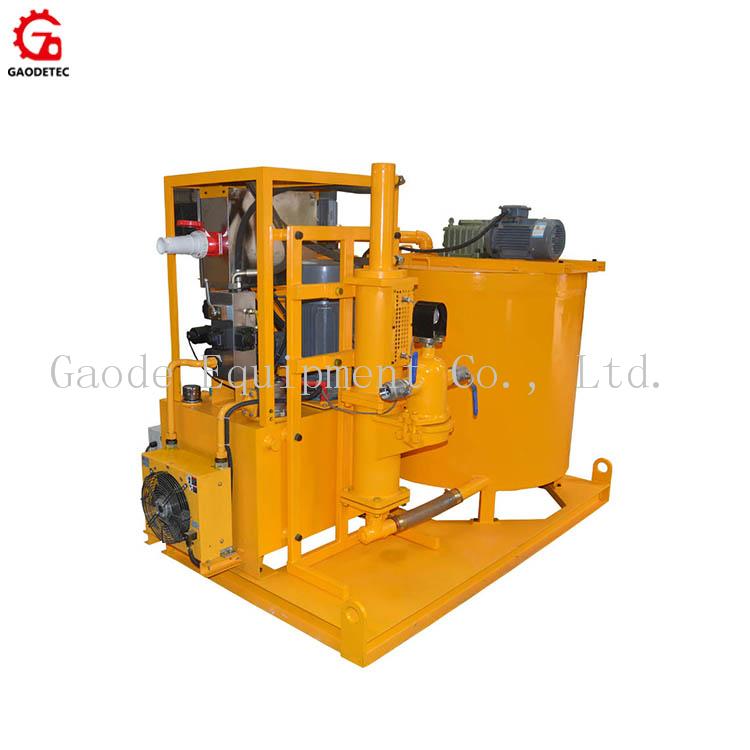

Supply GGP400/700/80 PL-E grout station with factory price

Grout Station Description:

The GGP400/700/80 PL-Egrout plant is combination of mixer, agitator and hydraulic plunger grout pump in one plant. Mainly suitable for mixing and pumping water, cement, sand, bentonite, filler, clay power, silicates and other additives.

Grout Station Feature:

1. Grouting pressure, displacement is stepless adjustable;

2. Simple structure, light weight, easy maintenance;

3. Continuous output with small pulse;

4. Less spare parts ensure low maintenance costs;

5. High speed vortex mixer ensures mix quickly and evenly;

6. Mixer and agitator switch by using squeeze handle, it is safe, reliable and easy to operate;

7. The motor has an overload protection function. Hydraulic system with oil temperature overheating protection;

8. With high-speed, low-speed mode, by using ball valve to achieve two-function switch;

9. With CE, ISO certification.

Grout Station Technical data:

Type

GGP400/700/80 PL-E Grout Station

Voltage

3 phase, 380V, 50HZ

Dimensions

2500x2200x1730mm

Weight

1350kg

  Mixer

Capacity

400L

Power

7.5kw

Rated Rev.

1450

Agitator

Volume

700L

Power

1.5kw

Rated Rev.

36rpm

Pump

Type

Hydraulic Plunger pump

Pressure and Output

High speed: 0-2.5MPa  0-80L/min

Low speed: 0-4.5MPa   0-58L/min

Payment Terms︰TT/LC
Packing︰plastic wrap, plywood case, free-fumigation, standard export packing. as shown below. Or customized.
Lead Time︰in stock. common type 7 working days once confirm
Standards Certificate︰CE ISO
Product Image

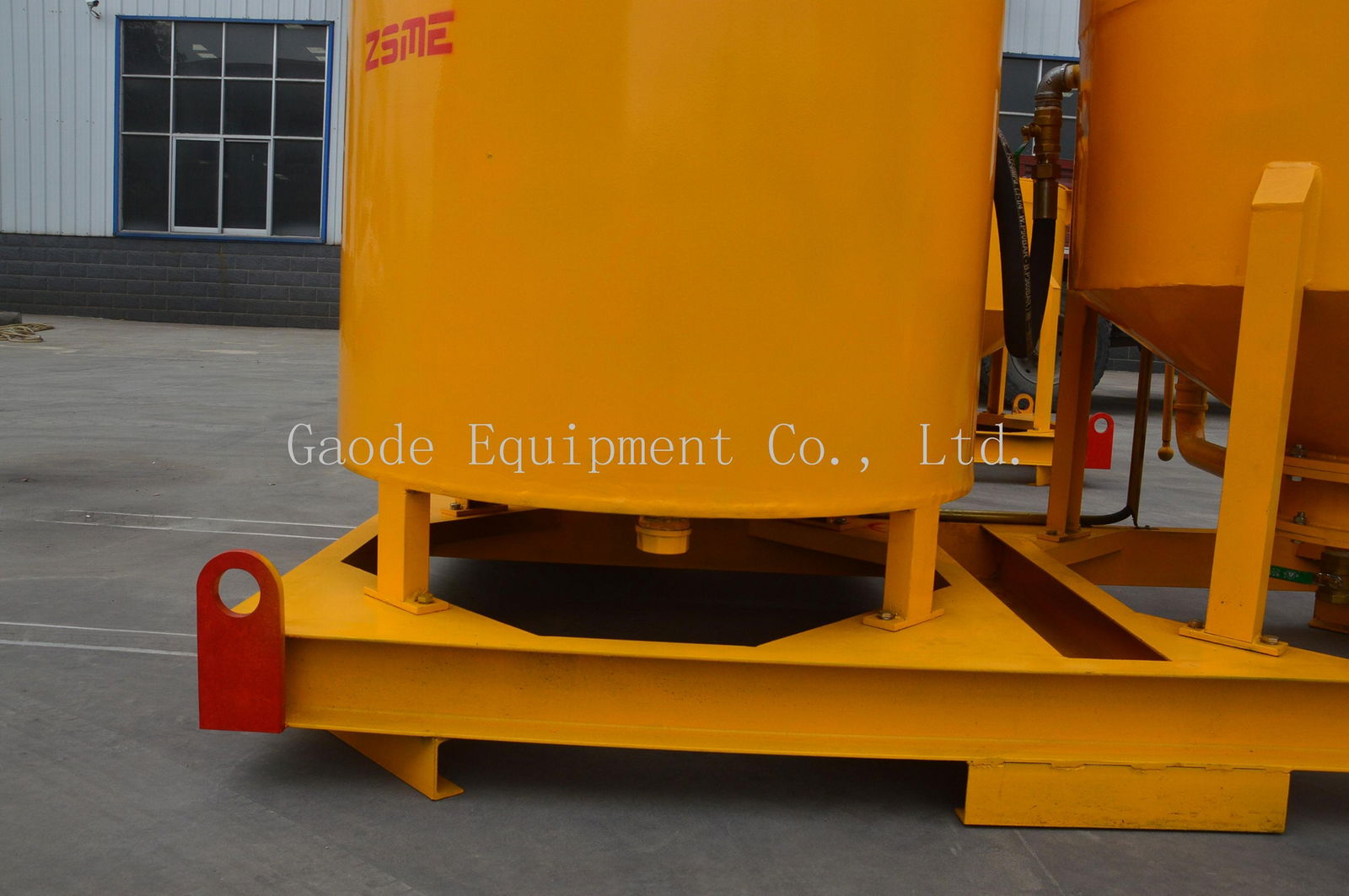

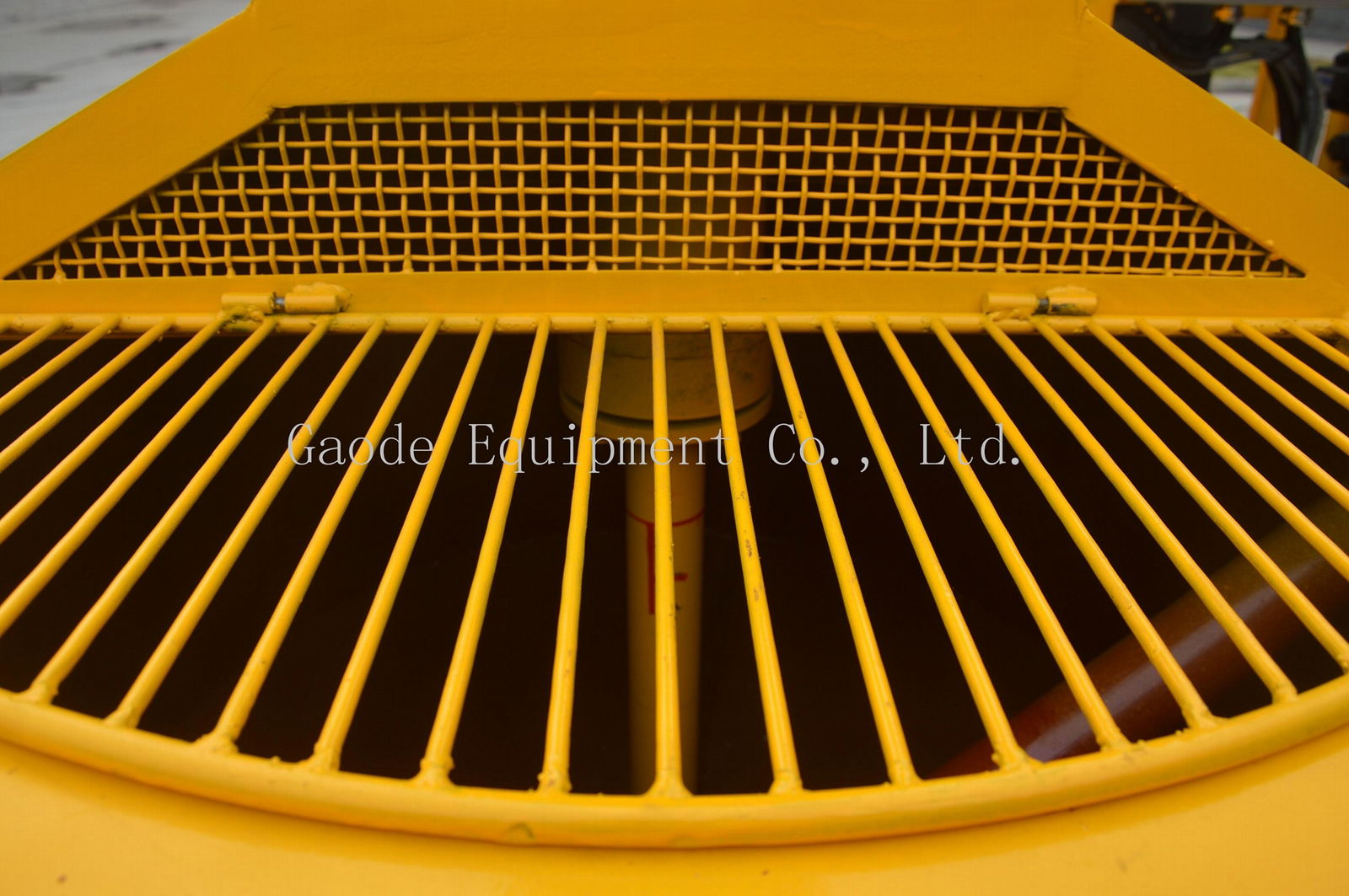

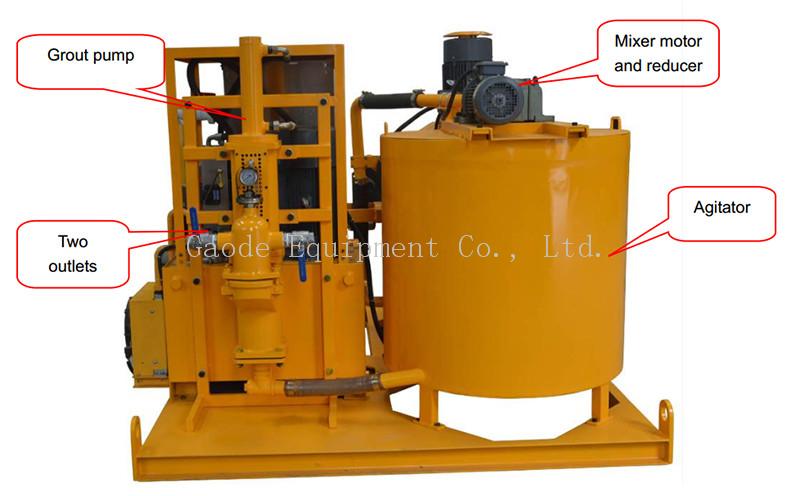

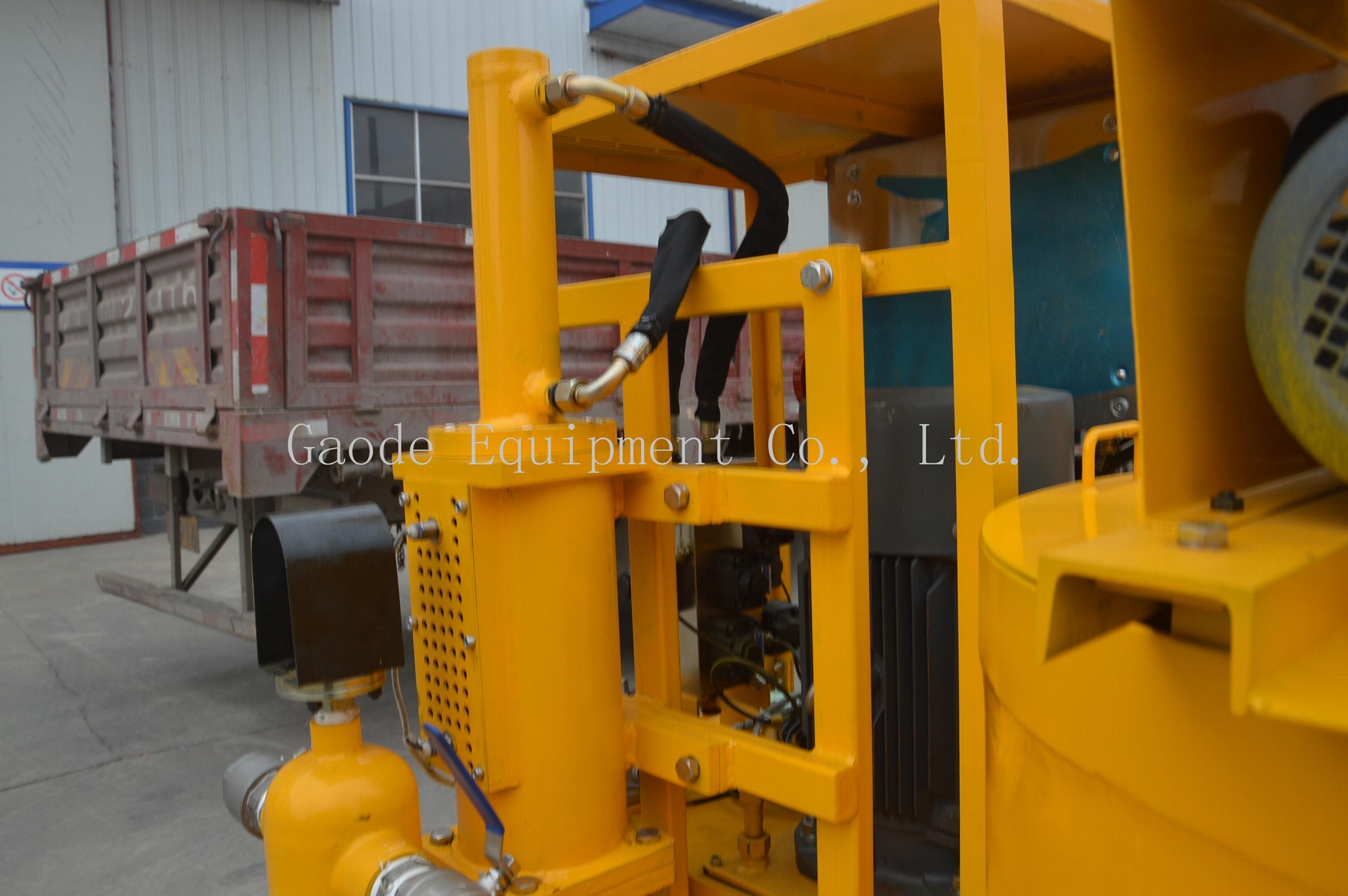

grout station detailed view, grout station with grout record
grout station detailed view, grout station with grout record
