GGP350-800-70PI-E High mixing speed Cement Grout Station Price

cement grout station
  • cement grout station
  • cement grout station
  • cement grout station
  • cement grout station
  • cement grout station
  • cement grout station
  • cement grout station
  • cement grout station
  • cement grout station
  • cement grout station
  • cement grout station
Model No.︰GGP350-800-70PI
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 9500 / pc
Minimum Order︰1 pc
Share on:

 Total 64 Related Items
Prev910111213Next

Product Description

Description:

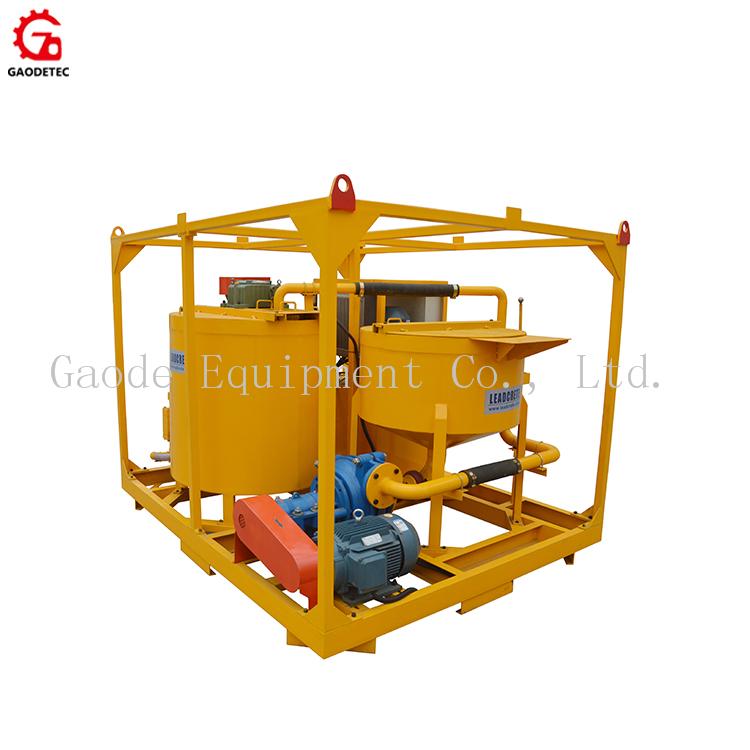

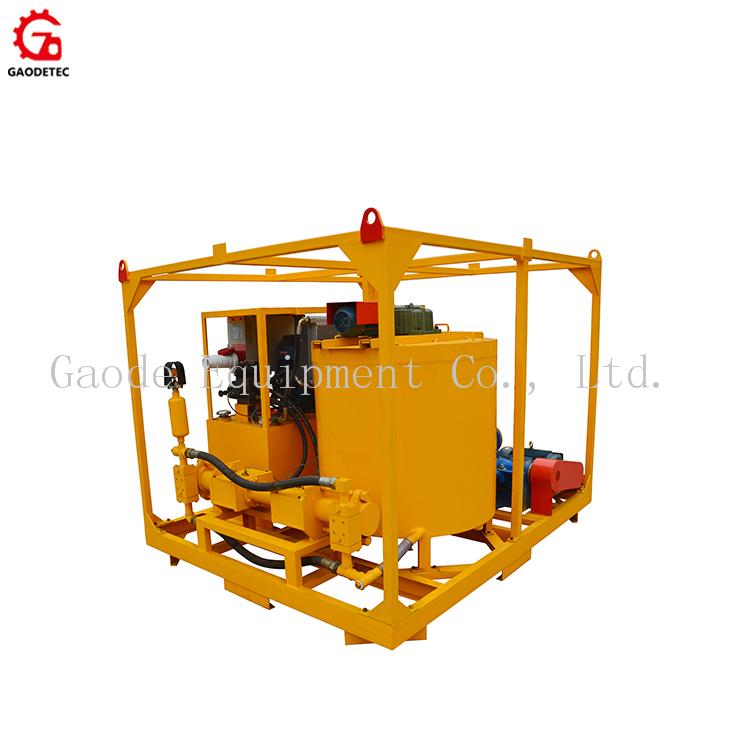

GGP350/800/70PI-E grout station is a combination of mixer, agitator and grout pump in one base frame. It is mainly used to be made bentonite slurry, cement slurry, etc, in the application highway, railway, hydropower, construction, mining and other ground and underground construction.

High speed vortex mixer ensures mix quickly and evenly. Water, cement or bentonite is quickly mixed into a homogeneous slurry. Then the mixed slurry was delivered to the agitator. Grout pump injects from the mixing drum (storage tank). This ensures a continuous mixing and grouting operations. The grouting plant is full hydraulic drive with electric motor. Grouting pressure and displacement is step-less adjustable. Compact size and it is easy to operate. It also takes up a small space.

Feature:

★Pump output is 0-70L/min. Pump pressure is 0-7Mpa. All step-less adjustable.

★Simple structure, light weight, easy maintenance.

★Double-cylinder and single-acting grouting pump: grouting continuous and low pulse.

★The latest improvement design of valve chamber: It is quickly convenient cleaning.

★Grouting pump outlet is equipped with buffer. This can further reduce the grouting pressure fluctuations.

★Delivery with special tools. This can ensure change the pistons rapidly, reduce the time of replacing.

★Less spare parts ensure low maintenance costs.

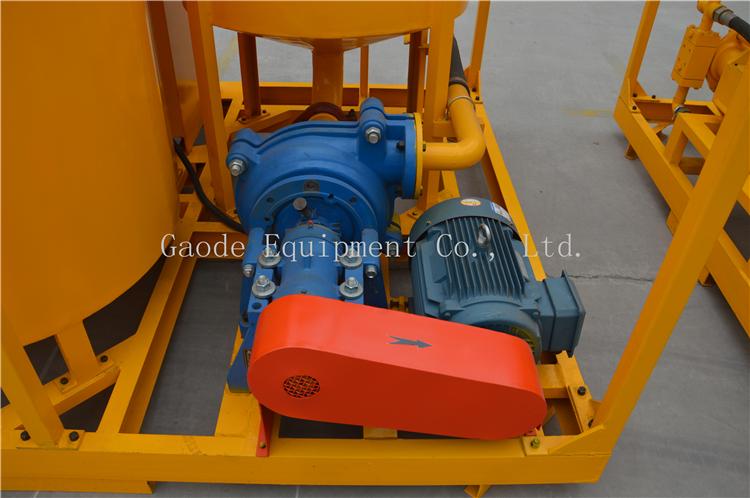

★High speed slurry pump vortex mixer ensures mix quickly and evenly.

★Mixer and agitator switch by using squeeze handle, it is safe, reliable and easy to operate.



Application

★Civil engineering - dam, tunnel, subway, mine, soil nailing wall, curtain,      anchor, cable trench and anchor grouting;

★Building structure - building and bridge repair, foundation reinforcement, slope support, soil compaction, rock grouting;

★Engineering - underwater foundation, offshore platform, coast foundation grouting reinforcement

★Mine application - roadway reinforcement, backfill, waterproof grouting.

★Acted as a grouting plant in the Pipe Jacking Machine.

Specification:

Description

Data

Grout Station model

GGP350/800/70PI-E

Dimensions

2590*2100*1980mm

Weight

1950kg

Mixer

Capacity

350L

Output

 5m3/h

Suitable water/cement ratio

≥0.5:1

Motor Power

15Kw

Rated Rev.

1450rpm

Agitator

Capacity

800L

Motor model

1.5KW

Rated Rev.

35rpm

Pump(hydraulic twin-cylinder)

Output

0-70L/min (70L/min, at 3Mpa)

Pressure

0-7MPa

Power

15Kw

Contact Supplier:

Many thanks for visiting our web, we can supply grout station for you. Before we send quotation, please let me know the following question:


1. How about the flow and pressure of the pump you want, please?
2. How about the water and cement ratio, does any sand in?
3. About the power: electric (voltage and frequency) or diesel?


Please tell us your requirements and we will provide you with the corresponding product parameters and quotations. We also could customize as per your requirementIf you have any questions, please contact us.

Payment Terms︰TT/LC/DP/DA
Standards Certificate︰ISO,CE
