large output wet mix shotcrete machine for spraying concrete in Mine project

  • large output wet mix shotcrete machine for spraying concrete in Mine project
  • large output wet mix shotcrete machine for spraying concrete in Mine project
  • large output wet mix shotcrete machine for spraying concrete in Mine project
  • large output wet mix shotcrete machine for spraying concrete in Mine project
  • large output wet mix shotcrete machine for spraying concrete in Mine project
  • large output wet mix shotcrete machine for spraying concrete in Mine project
Model No.︰GSZ3000E
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 7500 / pc
Minimum Order︰1 pc
Share on:

 Total 22 Related Items
Prev12345Next

Product Description

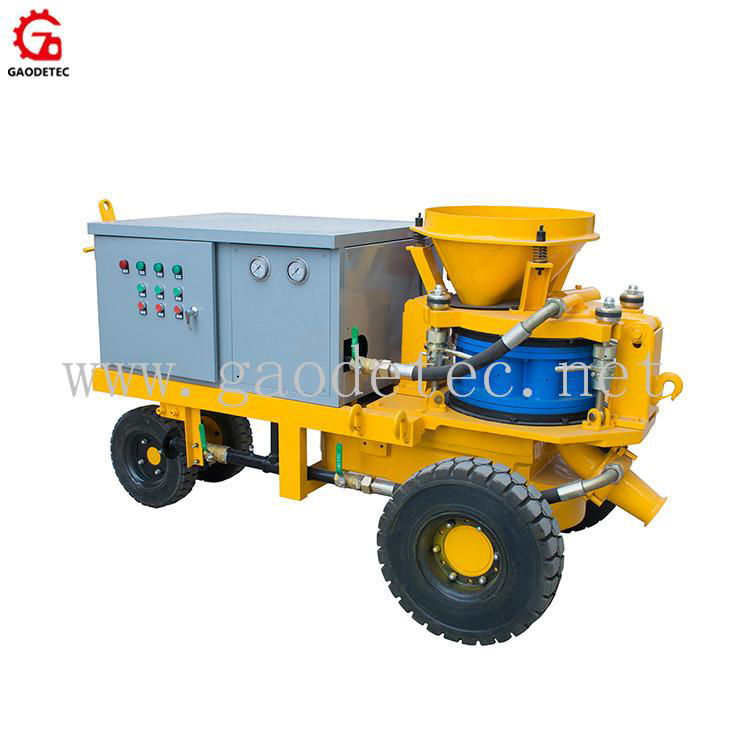

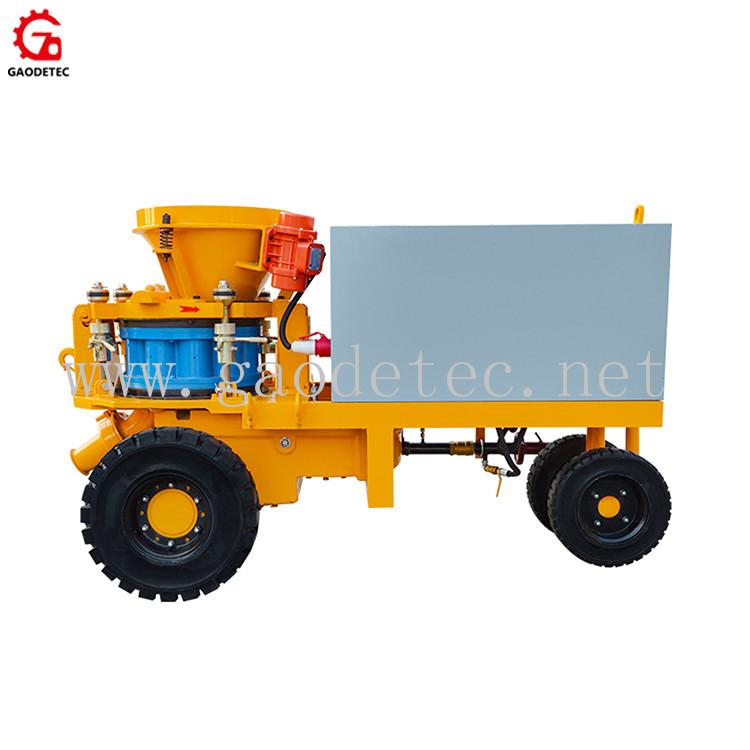

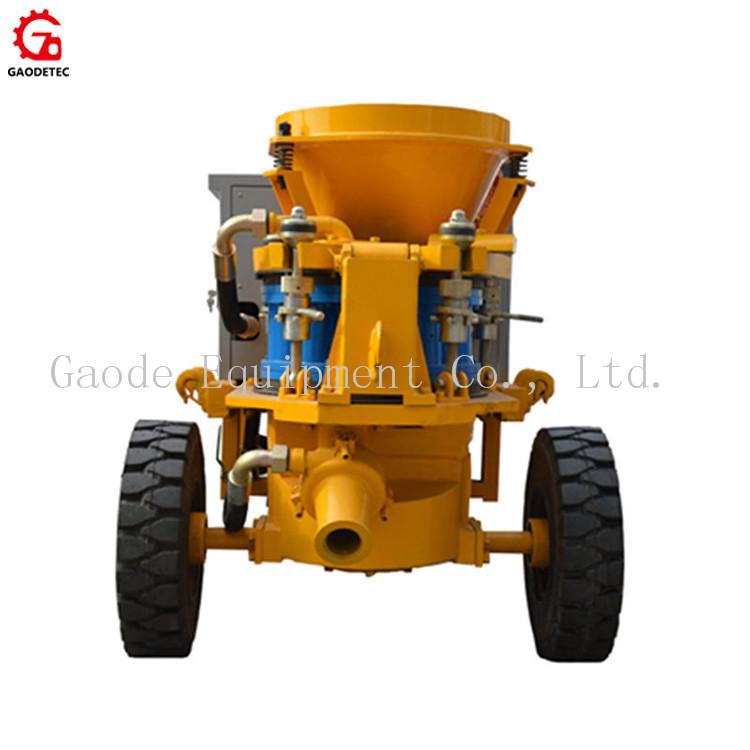

LSZ3000 Shotcrete Machine

LSZ3000 shotcrete machine description:

LSZ3000 shotcrete machine is a universal concrete spraying machine for the processing of wet or dry mix.

The machine is suitable either for manual spraying or by means of a robotic arm.

LSZ3000 is developed for the application of shotcrete in tunnel building, mines and slopes. This machine has been designed especially for fibre spraying. And the dosing unit is combined with this machine.

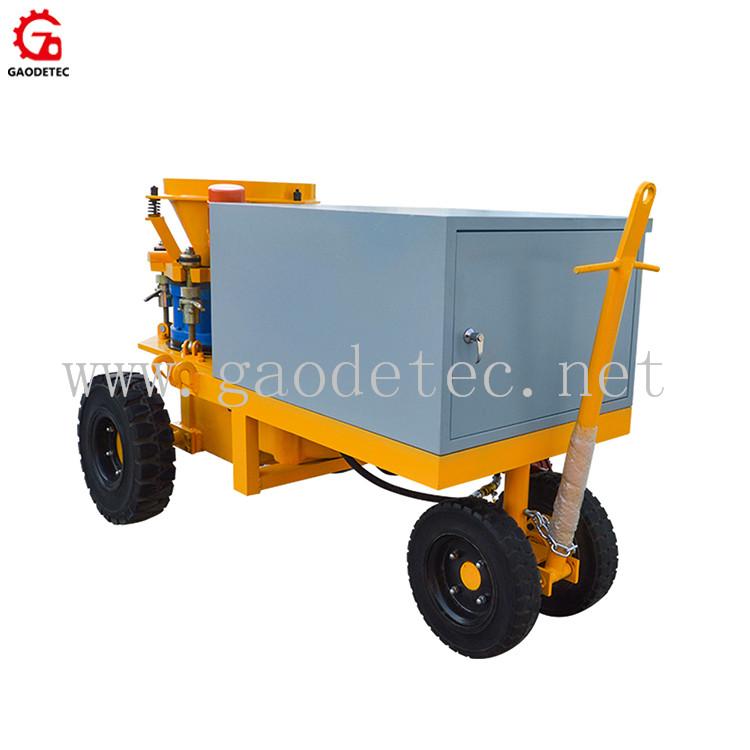

Basic: Electric drive can be combined with tyre chassis.

Extended (optional):

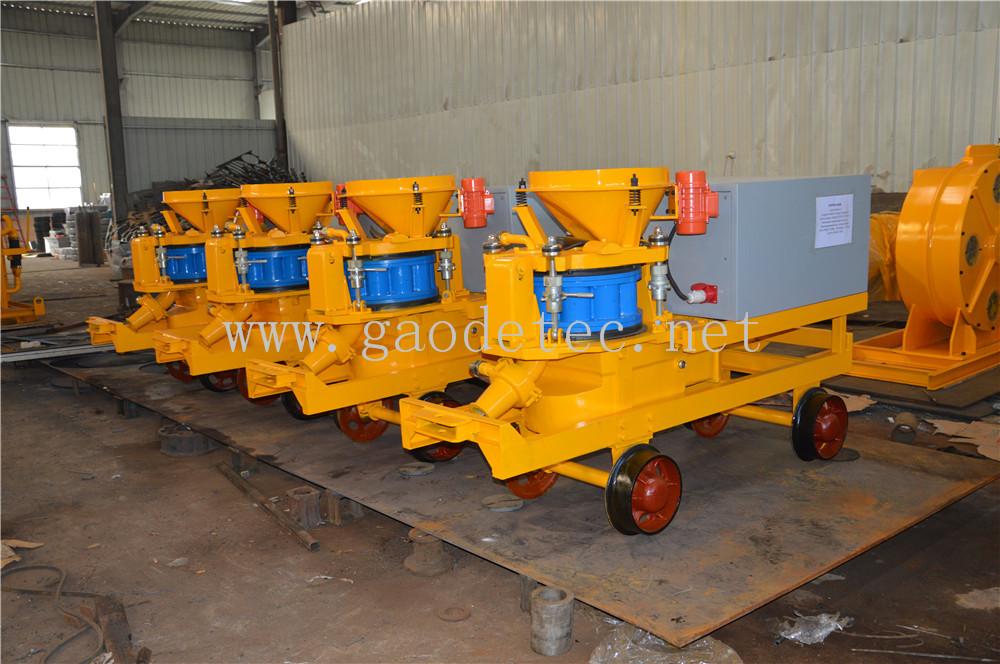

Air motor drive or diesel drive combined with Skid or Rail-wheel



LSZ3000 shotcrete machine main technical data:



Electric drive:

Rated Output

5m3 /h

Max. Horizontal Conveying Distance

35m(wet)/200m(dry)

Max. Aggregate Size

15mm

Concrete Slump

8 -15cm

Conveying Hose Inner Diameter

51/ 64mm

Operating air Pressure

0.3-0.6MPa (43-86PSI)

Air Consumption

10~ 12m3 /min(357-430CFM)

Main Motor Power

7.5kW(10hp)

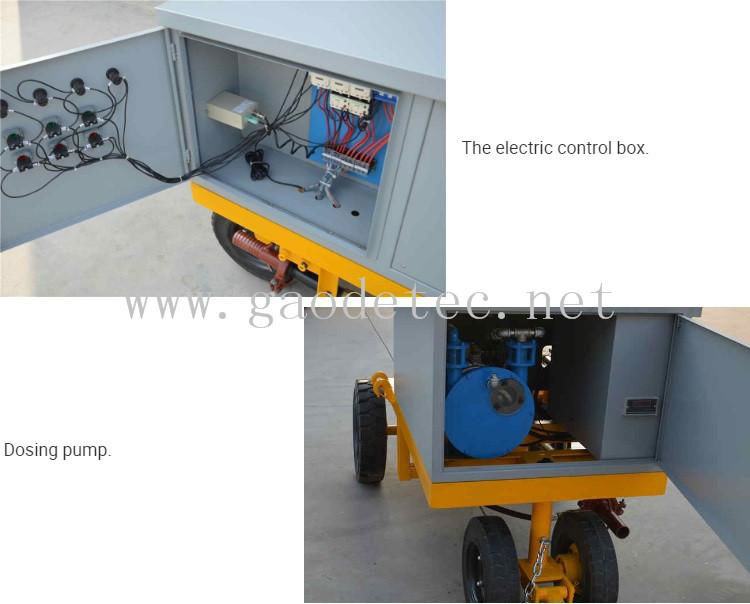

Dosing Pump:

BRJ15

Dosing Pump Rated Pressure

0.6MPa(86PSI)

Dosing Pump Output

17.5 -88L /h

Voltage

220V, 380V, 440V, 660V, 50Hz/60Hz

Material Charging Height

1.17m

Rotor Speed

11r/mi

Overall Dimension(L × W × H)

2.05× 0.95× 1.18m

Net Weight

1200kg



Air motor drive:



Due to its full pneumatic driven unit, for the required anti-explosion applications, such as coal mining, tunnel and underground engineering, this unit is perfect and specific one.



Rated output

5m3/h

Max. horizontal conveying distance

35m(wet)/200m(dry)

Max. aggregate size

Dia.15mm

Concrete slump

815cm

Conveying hose

Dia.50/65mm

Operating air pressure

0.20.6MPa

Air consumption

22m3/min (12+10)

Loading height

1.17m

Rotor Rev.

11r/min

Rebound

≤10

Air motor power

8kW

Dosing pump model

BHA530 Dosing pump

Dosing pump rated pressure

0.5MPa

Dosing pump output

0100L/h

Overall dimensionL×W×H

1950×1050×1360mm

Weight

1200Kg



Diesel drive:

Output Capacity

3-5m3 /h

Max. Horizontal Conveying Distance

35m(wet)/200m(dry)

Suitable Mix Ratio(Cement/Sand)

1:4~5

Max. Aggregate Size

15 mm

Conveying Hose Inner Diameter

Dia.64 mm

Conveying Pressure

0.2-0.4MPa(29-58PSI)

Air Consumption

10~12m3/min(357-430CFM)

Material Charging Height

1.1m

Rotor Speed

7.5-11r/min

Diesel Engine

20hp,2200rpm, Yanmar diesel

Diesel Engine Starting

Electric start

Clutch Type in Diesel Engine

Automatic Clutch

Air Vibrator

OR100,Oli

Overall Dimension(length×width×height)

2.55×1.05×1.25m

Dosing pump model

BHA530 Dosing tank

Net Weight

1300kg

 A complete set of LSZ3000 shotcrete machine:



No.

Description

Quantity

Unit

Remarks

1

 Main Machine

1

set



2

Nozzle Assy.

1

set



3

Conveying Hose, ID64mm, 50ft.Length

1

piece



4

Rubber Hose Joint

3

piece

Fitting

5

Quick Coupling

3

piece



6

Upper Sealing Plate

1

piece



7

Lower Sealing Plate

1

piece



8

Dosing pump tube

1

piece



Payment Terms︰TT/LC/DP/DA

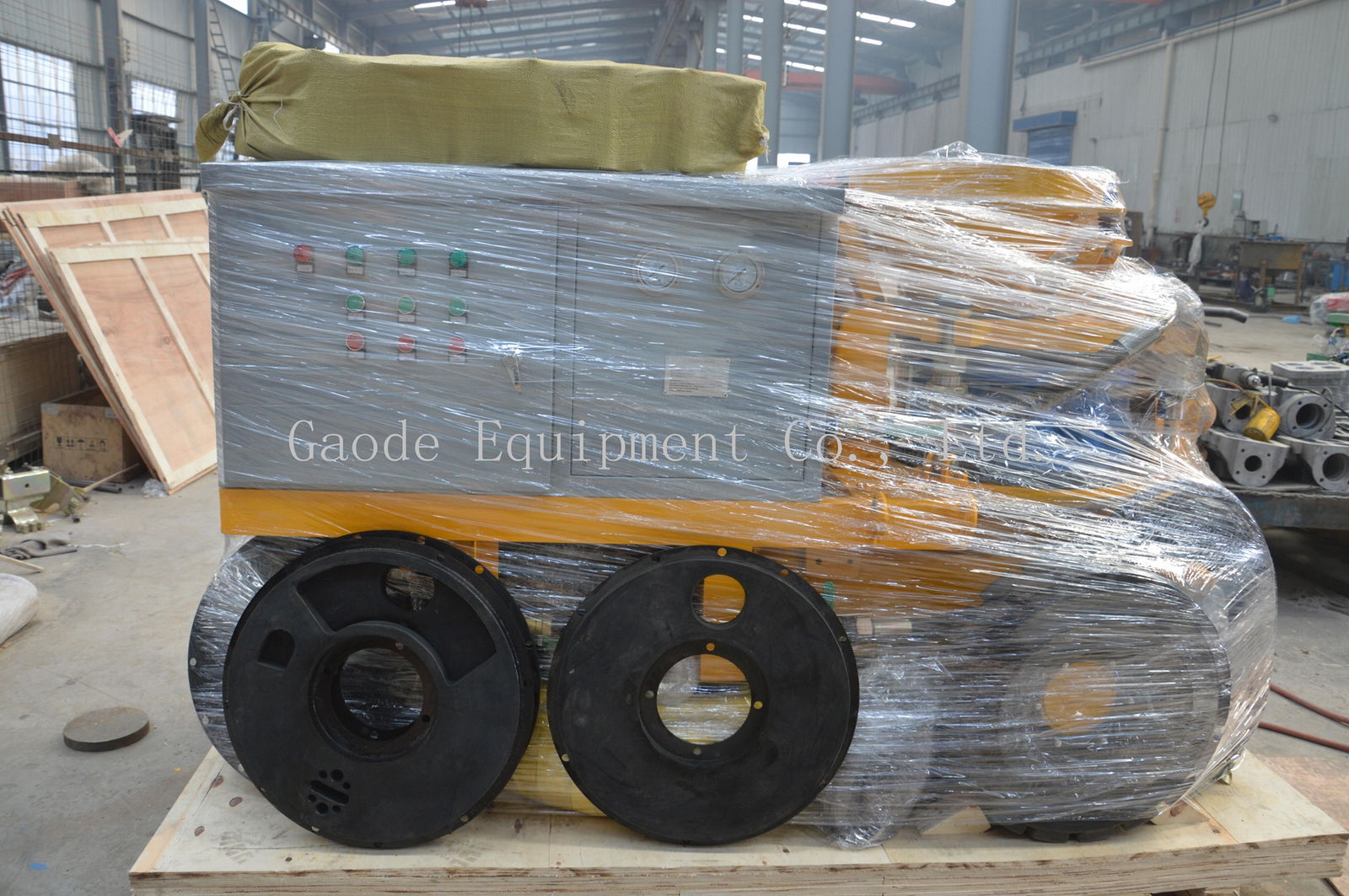

Packing︰standard export packing or as your request
Standards Certificate︰CE,ISO
