GMA850-1500E Bentonite cement grout mixer and agitator
Please copy the link to the product website for more products and information
Our website: www.gaodetec.net
Product description:

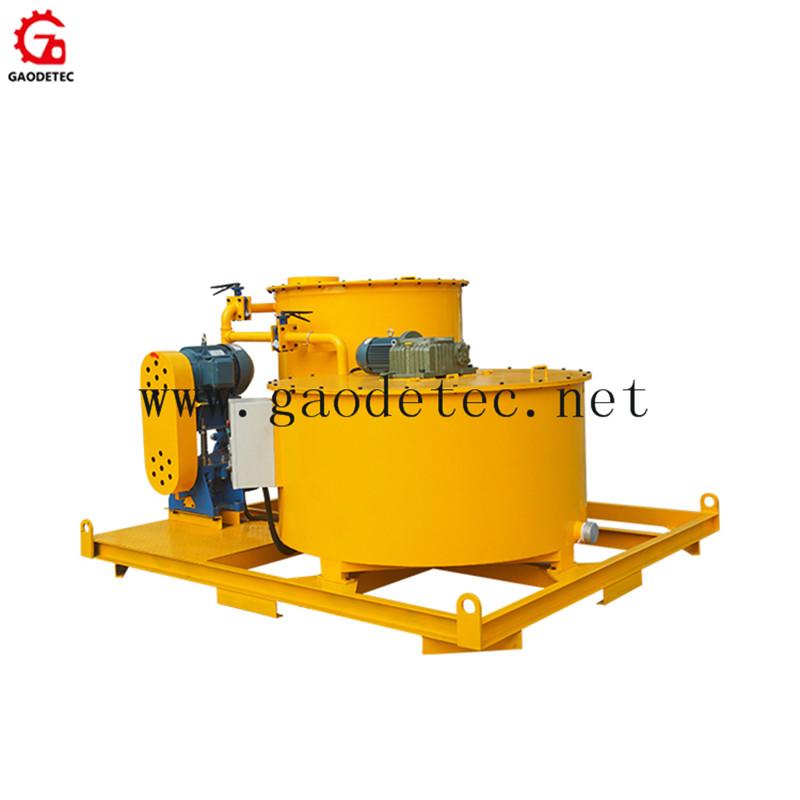

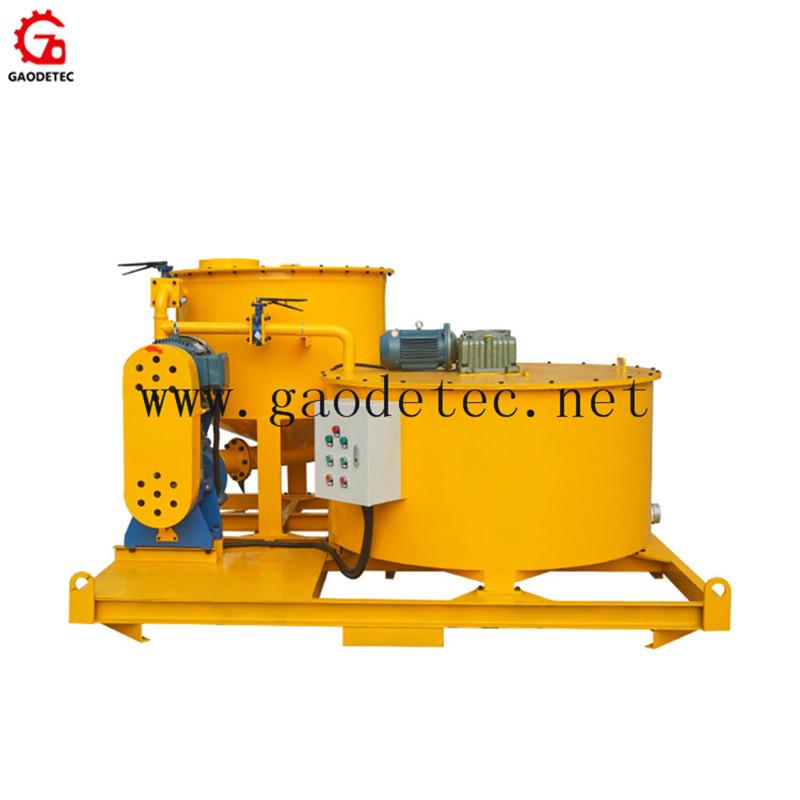

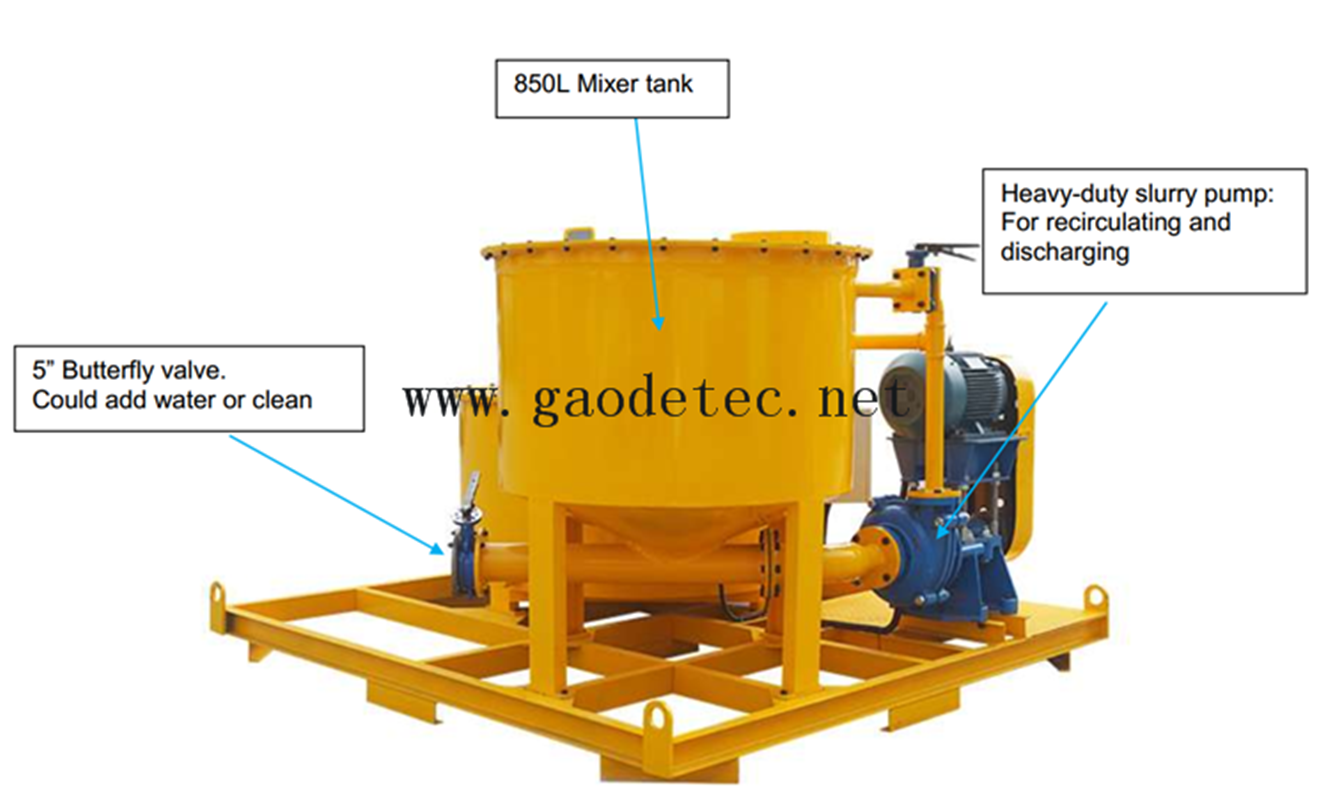

GMA850-1500E grout mixer and agitator is a skid mounted, colloidal grout unit. This system is designed to provide a continuous mixing operation. It is a combination consist of a steel sheet cylindrical mixer tank, heavy-duty slurry pump, and agitator tank, set-up on a strong base frame.
The water, cement and bentonite are mixed through a high speed vortex produced by a special pump. As soon as the mixing process is over, the mixing is transferred into the agitator. The slow stirring paddle prevents the grout from settling out of suspension and removes any air bubbles from the mix. Mixer and agitator is switch by using butterfly valve.
For the power, also there is diesel engine motor for option.
Technical Parameter:
|
Model
|
GMA850-1500E
|
|
Output
|
11~14m3/h
|
|
Mixer volume
|
850L
|
|
Agitator volume
|
1500L
|
|
Pump delivery
|
700L/min
|
|
Motor power
|
11+3 Kw
|
|
Overall dimension
|
2200*2750*1600mm
|
|
Weight
|
1600KG
|
Features:
- Simple structure, easy assemble;
- Extremely fast mixing, mixing time just about 1-2 minutes
- Less spare parts, low maintenance. Lower using cost.

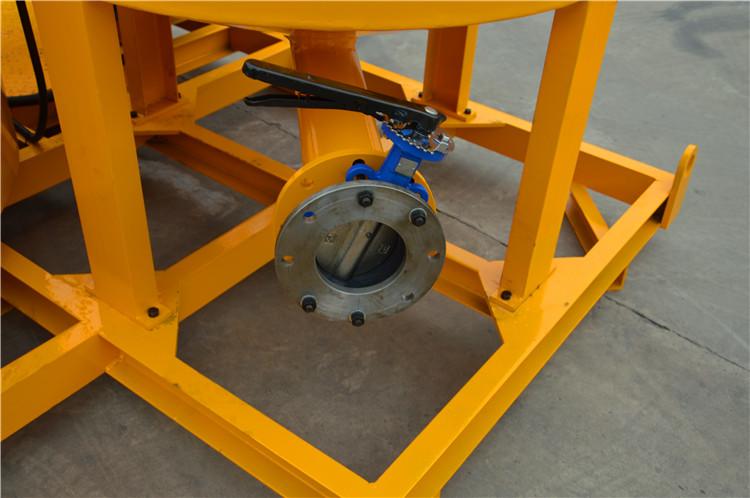

- Mixer and agitator switch by using butterfly valve, simple to operate.
Contact Supplier:
Many thanks for visiting our web, we can supply grout mixer and agitator for you. Before we send quotation, please let me know the following question:
1. Mixer only or mixer with agitator ？
2. How about the grouting liquid ? Just water and cement ? Any sand in ?
3. How about the water cement ratio ? More than 0.45: 1 ?
We have many standard models for your option, and we also could customize as per your requirement. Please tell us your requirements and we will provide you with the corresponding product parameters and quotations. If you have any questions, please contact us.
