Easy Operation Diesel Mini Concrete Pump for Masonry Block Filling

mini concrete pump
  • mini concrete pump
  • mini concrete pump
  • mini concrete pump
  • mini concrete pump
  • mini concrete pump
  • concrete pump
  • concrete pump
  • Easy Operation Diesel Mini Concrete Pump for Masonry Block Filling
  • Easy Operation Diesel Mini Concrete Pump for Masonry Block Filling
  • Easy Operation Diesel Mini Concrete Pump for Masonry Block Filling
  • Easy Operation Diesel Mini Concrete Pump for Masonry Block Filling
  • Easy Operation Diesel Mini Concrete Pump for Masonry Block Filling
  • Easy Operation Diesel Mini Concrete Pump for Masonry Block Filling
Model No.︰GCP8/80-30D
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 19000 / pc
Minimum Order︰1 pc
Share on:

 Total 12 Related Items
Prev12345Next

Product Description

Easy Operation Diesel Mini Concrete Pump for Masonry Block Filling

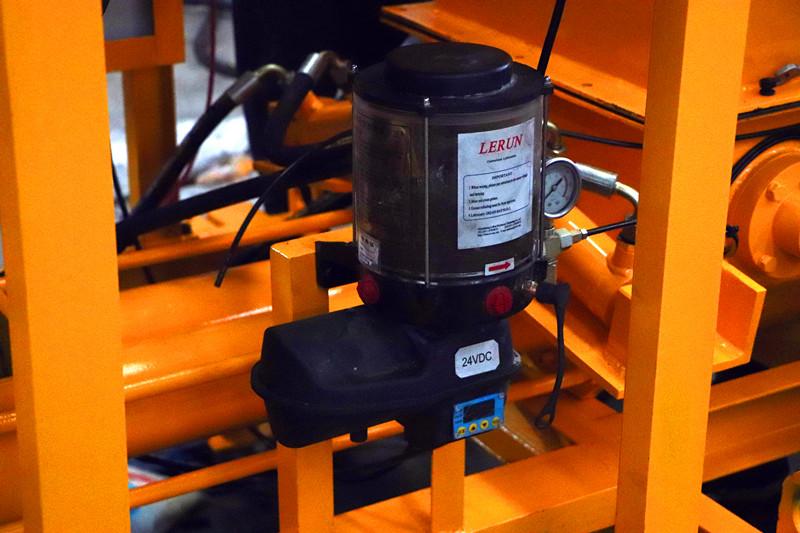

GCP8/80-30D Concrete Pump is a multi-purpose heavy-duty Swing-Valve concrete pump with air cooling diesel engine, hopper mixer, hopper vibrator, automatic lubrication and LS variable output. Concrete convey, Swing valve and hopper mixer are respectively driven by three hydraulic pump, among them, the concrete convey hydraulic pump is LS piston high pressure pump.

Technical data sheet:

Model

GCP8/80-30D

Rated Output

3-8m3 /h (LS)

Pump work pressure

38 Bar

Acceptable Max. Aggregate Size

20mm

Cylinder diameter

100mm

Cylinder Stroke

550mm

Pump Valve

S Valve

Max. Horizontal Conveying Distance

200m

Max. Vertical Conveying Distance

100m

Concrete Slump

7 -15cm

Conveying Hose Inner Diameter

100/80/50mm

Diesel engine

30kw@1800rpm 4-cylinder, air cooling

Dimension(L × W × H)

3000*1600*1900mm

Net Weight

1650kg

Applications:

  • Concrete wall construction
  • Masonry block filling,
  • Concrete wall grouting,
  • Concrete sidewalk
  • Refractory castable&shotcrete
  • Concrete shotcrete
  • Tunneling construction;
  • Mining support (sprayed concrete walls and ceilings)
  • Swimming pool (sprayed concrete shells);
  • Excavation-protection;
Payment Terms︰TT/LC/DP/DA
Packing︰standard export packing or as your request
Lead Time︰15
Standards Certificate︰CE,ISO
Product Image

mini concrete pump
mini concrete pump

mini concrete pump
mini concrete pump

mini concrete pump
mini concrete pump

mini concrete pump
mini concrete pump

mini concrete pump
mini concrete pump

concrete pump
concrete pump

concrete pump
concrete pump
