Factory supply cheap price GZ-3A shotcrete machine for sale

Shotcrete Sprayers
  • Shotcrete Sprayers
  • Shotcrete Sprayers
  • shotcrete machine
  • shotcrete machine
  • shotcrete machine application
  • shotcrete machine application
  • shotcrete machine
Model No.︰GZ-3A
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 4600 / set
Minimum Order︰1 set
Share on:

 Total 16 Related Items
Prev45678Next

Product Description

Factory supply cheap price GZ-3A shotcrete machine for sale

GZ-3A gunite machine description:

GZ-3A Shotcrete machine/Gunite machine /Concrete Spraying Machine is small-sized shotcrete machine for the dry spraying process.

GZ-3A gunite machine can be used as well for small jobs, such as joint filling, swimming pool, refractory application and extensive slope consolidation work, etc.

GZ-3A gunite machine is available in following versions:

Basic: electric drive can be combined with tyre chassis

Extended (optional): air motor or diesel drive combined skid or rail-wheel

GZ-3A gunite machine technical parameters:

Electric Motor Driven:

Output Capacity

3m3 /h

 Max. Horizontal Conveying Distance

200m

 Suitable Mix Ratio(Cement/Sand)

≤1:3~5

 Max. Aggregate Size

Φ10 mm

 Conveying Hose Inner Diameter

Φ38/Φ50mm

 Conveying Pressure

0.2-0.4MPa(29-58PSI)

 Air Consumption for conveying material

5~6m3/min(180-215CFM)

 Material Charging Height

0.9m

 Rotor Speed

14r/min

 Motor Power

3kW(4hp),IP55

Available Voltage

220V,380V,440V,660V 50Hz/60Hz

 Overall Dimension(length×width×height)

1.13×0.54×1.02m

 Net Weight

430kg

Air Motor Driven:

Output Capacity

1.5-3m3 /h

 Max. Horizontal Conveying Distance

200m

 Suitable Mix Ratio(Cement/Sand)

≤1:3~5

 Max. Aggregate Size

Φ10 mm

 Conveying Hose Inner Diameter

Φ50mm

 Conveying Pressure

0.2-0.4MPa(29-58PSI)

 Air Consumption for conveying material

5~6m3/min(180-215CFM)

Air Motor Air Pressure

0.5MPa(71PSI)

 Material Charging Height

0.9m

 Rotor Speed

14r/min

 Air Motor Type

TMH3.2

 Air Motor Air Consumption

4.8m3/min(171CFM)

 Overall Dimension(length×width×height)

1.13×0.54×1.02m

 Net Weight

430kg(947lbs)

 Diesel driven:

Rated Output

2-3m 3 /h

Max. Horizontal Conveying Distance

200m

Suitable Mix Ratio(Cement/Sand)

≤ 1: 3~5

Max. Aggregate Size

Φ 10 mm

Conveying Hose Inner Diameter

38/51mm

Operating air Pressure

0.2-0.4MPa(29-58PSI)

Air Consumption

5~6m 3 /min(180-215CFM

Diesel Engine

10hp,2200rpm

Diesel Engine Starting

Electric start

Clutch Type in Diesel Engine

Automatic Clutch

Material Charging Height

0.9m

Rotor Speed

9-13r/min

Overall Dimension(L× W× H)

1.8× 0.8× 1.2m

Net Weight

480kg



Contact Supplier:

Many thanks for visiting our web, we can supply shotcrete machine for you. Before we send quotation, please let me know the following question:


1. What's the project you will use the machine do, for slope protect, or other?
2. Do you need dry-mix shotcrete machine or wet-mix shotcrete machine?
3. What's the output you need, 3m3/h, 5m3/h, 9m3/h, or other?
4. What's the maximum particle size of the material, less than 10mm, 15mm, or 20mm?
5. About the engine, do you need air motor, electric or diesel ? What voltage it is on your local? It is 3 phase 380V 50Hz in China.


We have many standard models for your option, and we also could customize as per your requirement. Please tell us your requirements and we will provide you with the corresponding product parameters and quotations. If you have any questions, please contact us.

Payment Terms︰LC TT
Packing︰plastic wrap, plywood case, free-fumigation, standard export packing. as shown below. Or customised.
Lead Time︰in stock. Or 7 working days after get payment
Standards Certificate︰CE ISO

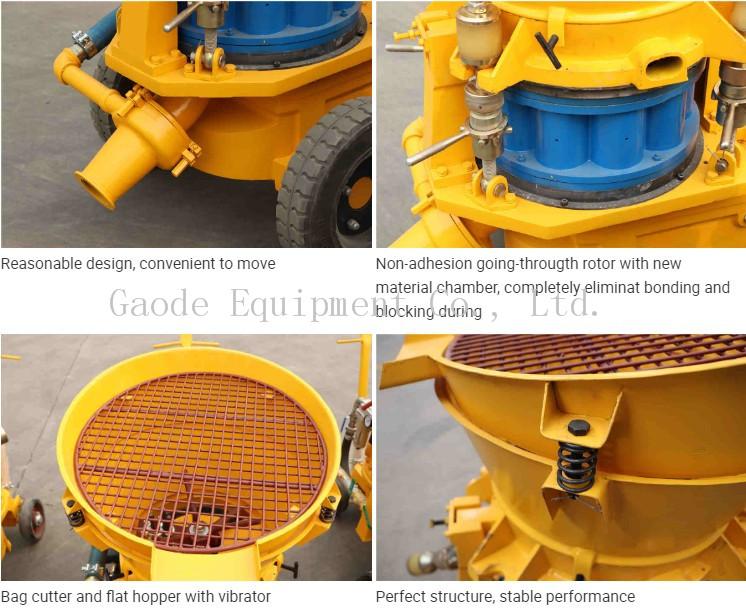

Product Image

Shotcrete Sprayers
Shotcrete Sprayers

Shotcrete Sprayers
Shotcrete Sprayers

shotcrete machine
shotcrete machine

shotcrete machine
shotcrete machine

shotcrete machine application
shotcrete machine application

shotcrete machine application
shotcrete machine application

shotcrete machine
shotcrete machine
