GGM80/50 PLD-E Double-Plunger Hydraulic Grout Injection Pump

Description:

GGM80/50 PLD-E Double-Plunger Hydraulic Grout Pump is designed with two low-wear plungers pump. With the features of double acting, ball valves, low pressure surge, variable pressure and flow. Therefore, this pump is suitable for all grouting work, up to 8mm particle size , such as, for the pumping of backfill mortar behind tunnel liners, grouting in soil, earth foundation stabilization, waterproofing, tunnel lining, underwater foundations, bridge decks, deep well casing, slope line grouting, etc.

Feature:

The Plunger Pump System;

Comparing with the piston pump system, the plunger system does not

require any close tolerance parts such as cylinders or precise piston seals, etc. The plunger is sealed by a simple maintenance-free seal;

Double Plungers and acting;

Vertical type pump with compact size;

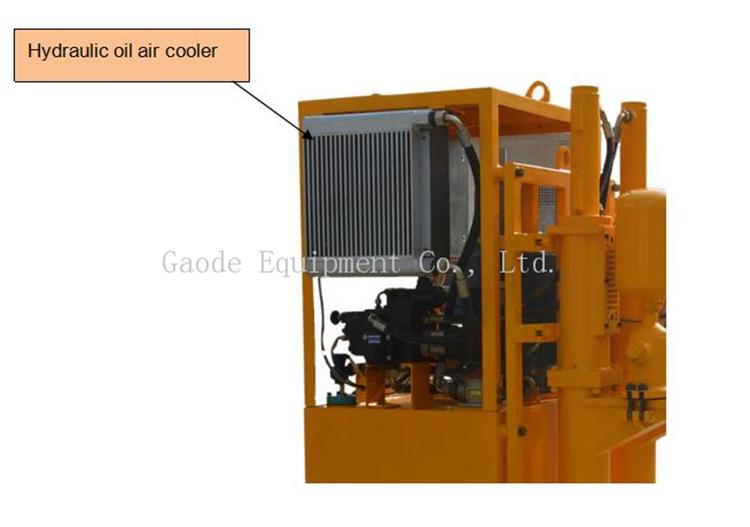

Hydraulic drive Safely releasing pressure when pumping block;

Ball valve;

up to 8mm particle size;

Low wear plunger system;

Low flow pressure surge system.

Specification:

Item

GGM80/50PLD-E

Rated output

0-80 L/Min

Rated pressure

0-50 Bar

W/C ratio

≥0.5:1

Plunger Dia.

85mm

Stroke

190mm

Inlet Dia.

2’’

Outlet Dia.

BSP1.5’’

Power unit

11kW

Transmission

Hydraulic drive

Max. particle size

8mm

Chassis

Skid

Note: double cylinders double plunger vertical type pump

Pressure and flow could be adjustable step-less

 Contact Supplier:

Many thanks for visiting our web, we can supply grout pump for you. Before we send quotation, please let me know the following question:


1. What's pressure and flow of the pump you need ?
2. The water cement ratio, any sand in ?
3. About the power: electric (voltage and frequency) or diesel or air motor ?


We have many standard models for your option, and we also could customize as per your requirement. Please tell us your requirements and we will provide you with the corresponding product parameters and quotations. If you have any questions, please contact us.

Payment Terms︰TT/LC/DP/DA
Packing︰standard export packing or as your request
Lead Time︰15
Standards Certificate︰ISO,CE
