Factory supply cheap price clc foam concrete machine

  • Factory supply cheap price clc foam concrete machine
  • Factory supply cheap price clc foam concrete machine
  • Factory supply cheap price clc foam concrete machine
  • Factory supply cheap price clc foam concrete machine
Model No.︰GF-10B
Brand Name︰Gaode
Country of Origin︰China
Unit Price︰US $ 5100 / pc
Minimum Order︰1 pc
Share on:

 Total 40 Related Items
Prev1617181920Next

Product Description

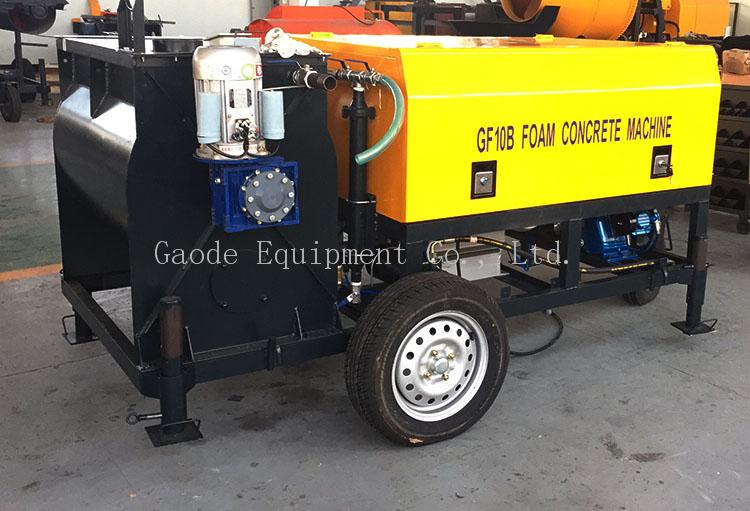

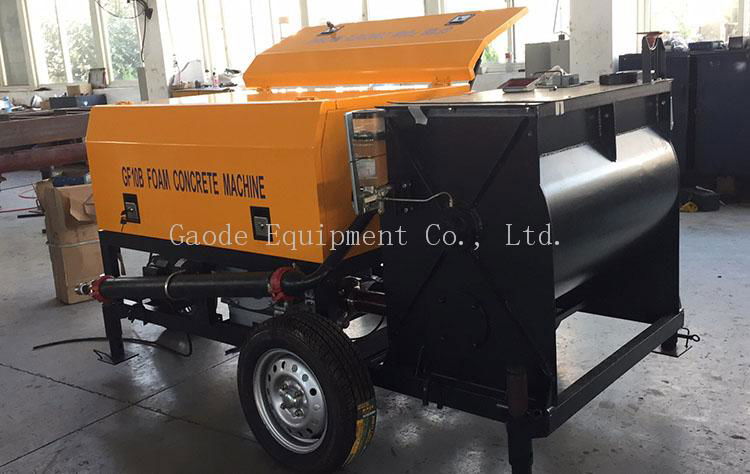

GF10B foam concrete machine



Foam concrete, also called Cellular Light weight Concrete, has been used in over 40 countries for building houses, apartments, schools, hospitals, industrial buildings, etc.



Brief Instruction:

GF10B foam concrete mixing machine is a kind of small one according our many years of working experience. It includes a feeder, a mixer, a set of foaming system and a pump, adopts digital control technology, can exactly adjust foam cement density; it also meets different density of foam concrete product manufacturing. This machine capacity is 10 cubic meter per hour, which is special design for village and county market. It can put directly on the truck for working. At present, our products have already big batch export to overseas market, achieving a historic breakthrough that China cement foam machine from import to export.



Working Principle:

Foam concrete specially made by foam concrete mixer is a kind of advanced lightweight and insulated material. And this material has a great number of closed pores. With the help of foaming system of foaming machine, foam agent can foam fully and mechanically. Then foam and cement paste are mixed evenly. Next, the mixture will be out from pumping system to cast in place construction or form mold. After natural conservation, foam concrete forms.



Technical parameters:



Model

GF10B

Max. theoretical concrete put(m³/h)

10

Motor power(kw)

13.2

Theoretical vertical conveying height(m)

40

Theoretical level transmission distance(m)

300

Mixer tank capacity(L)

350

Filling height(mm)

1000

Feeder size(mm)

2990*760*830

Overall dimension(mm)

2390*1490*1440

Total weight(kg)

1000

Payment Terms︰TT / LC / DP / DA
Packing︰Wooden packing
Lead Time︰15
Standards Certificate︰ISO CE
