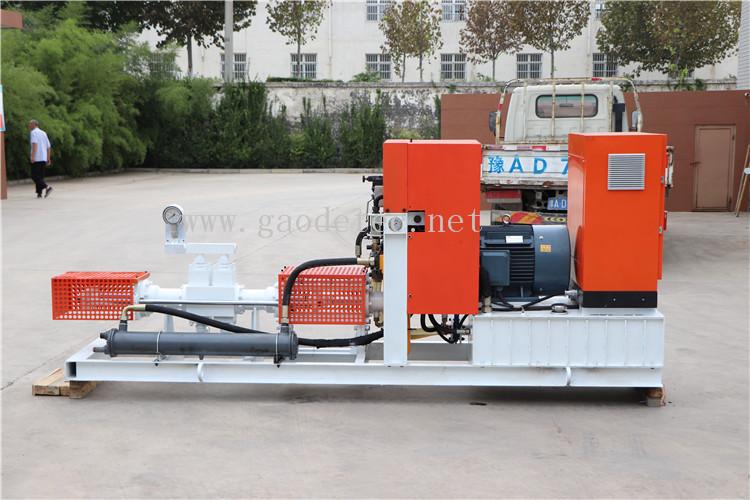

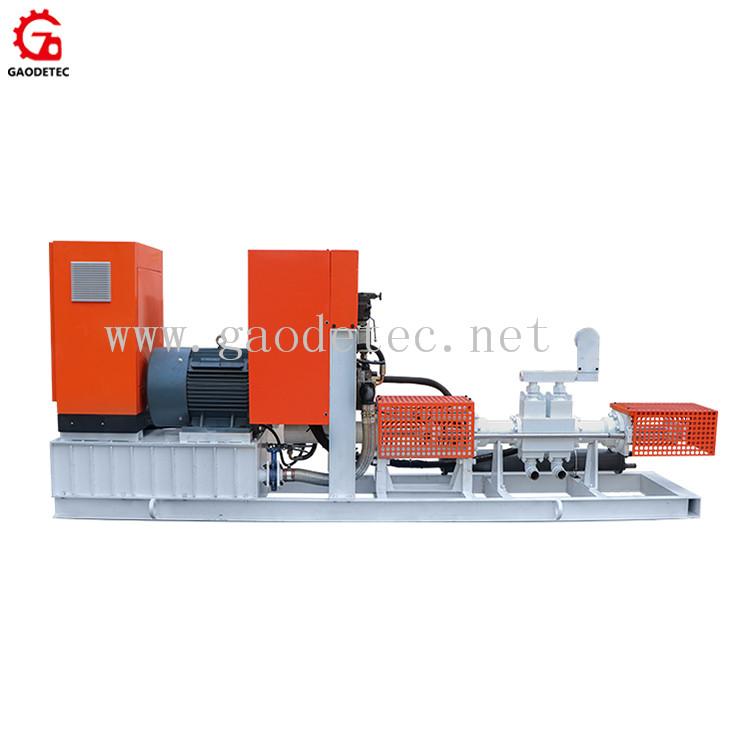

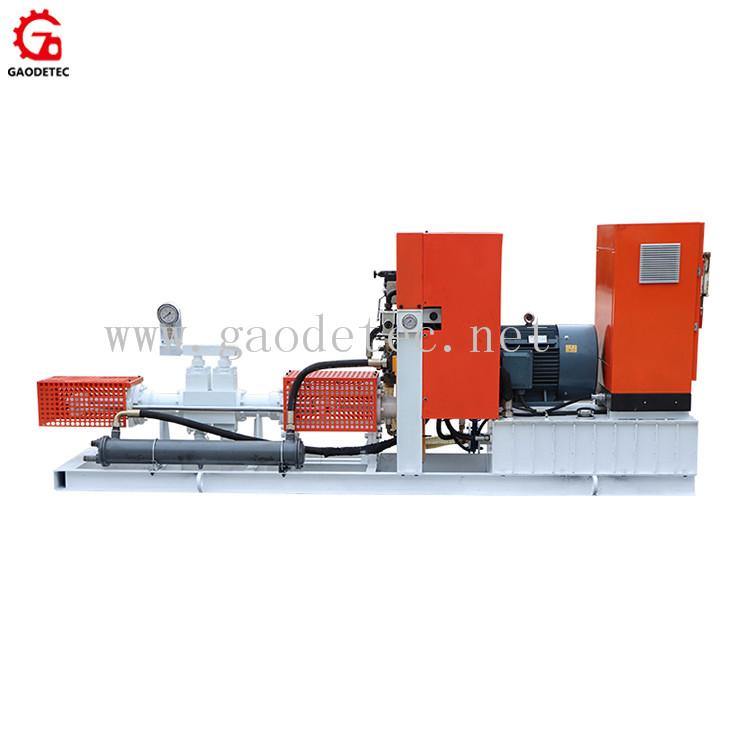

GGP95/165PL-E High Pressure Grout Pump is an horizontal hydraulic pump used for pumping fluid mixtures, such as cement slurry or bentonite slurry, ect. For injecting in the sub-soil for soil consolidation, piling or even for long transport of material. The equipment adopts two pieces of High Pressure Plungers to stabilize the consistency of the grouting flow. Grouting pressure and displacement is step-less adjustable. Compact size and it is easy to operate. It also takes up a small space.
- Grouting pressure, displacement is step-less adjustable;
- Simple structure, light weight, easy maintenance;
- Double grouting plungers, continuous output flow with less pulse;
- Less spare parts ensure low maintenance costs;
- With the function of record and display grouting pump reciprocating times by a counter;

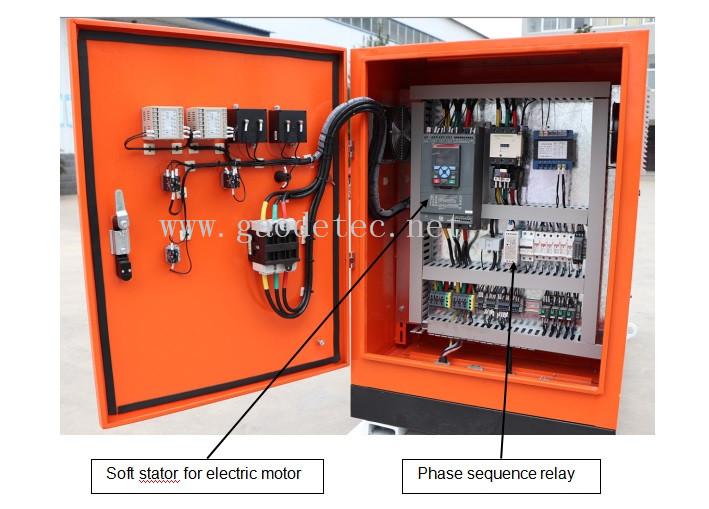

- The motor has an overload protection function. Hydraulic system with oil temperature overheating protection;

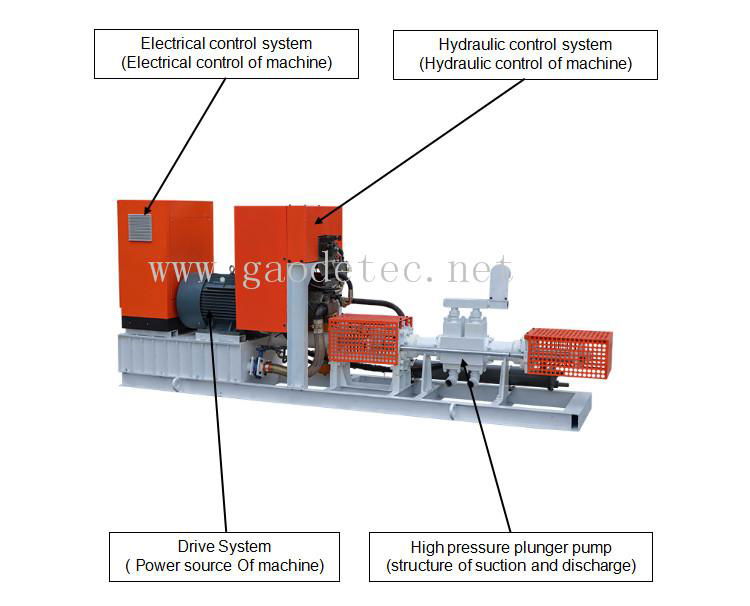

- Electric motor and hydraulic driven. Anytime, overpressure occurred, the hydraulic safety protection will be worked.
|
Description
|
Date
|
|
Type
|
GGP95/165PL-E
|
|
Plunger diameter
|
85mm
|
|
Plunger stroke
|
300mm
|
|
Adjustable pressure
|
0-16.5MPa
|
|
Adjustable flow rate
|
0-95L/min
|
|
Discharge pipe size
|
G1 1/4＂
|
|
Inlet pipe size
|
G2＂
|
|
Oil tank
|
200L
|
|
Power Unit
|
37Kw,3-400V,50Hz
|
|
Max. grain size
|
2mm
|
|
Working pressure
|
16.5MPa
|
|
Weight
|
1400kg
|
|
Overall dimensions
|
3760x1480x750mm
|
|
We also could according to your demands to customize
|
Contact Supplier：
Many thanks for visiting our web, we can supply grout pump for you. Before we send quotation, please let me know the following question:
1. What's pressure and flow of the pump you need ?
2. The water cement ratio, any sand in ?
3. About the power: electric (voltage and frequency) or diesel or air motor ?
We have many standard models for your option, and we also could customize as per your requirement. Please tell us your requirements and we will provide you with the corresponding product parameters and quotations. If you have any questions, please contact us.
