less storage ISO GM2000 lightweight foam concrete machine

clc foam machine
  • clc foam machine
  • clc foam machine
  • clc foam machine
  • clc foam machine
  • clc foam machine
  • clc foam machine
  • clc foam machine
  • clc foam machine
  • clc foam machine
  • clc foam machine
  • clc foam machine
  • clc foam machine
Model No.︰GM2000
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 8500 / pc
Minimum Order︰1 pc
Share on:

 Total 40 Related Items
Prev1213141516Next

Product Description

Less storage ISO GM2000 lightweight foam concrete machine

GM2000 lightweight concrete mixer includes feeding system-Track and Hopper, foaming system-Foam Generator, mixing system-Foam Concrete Mixer, controlling system-Control Panel and storing system-Stotage Tank. It is used to make lightweight foam concrete. The excellent integrity and easy operation means low labour intensity and low building cost. Besides, good strength characteristics with reduced weight, excellent sound and thermal insulation, and water proof, etc, all these performances make it an ideal substitute of present traditional walls.

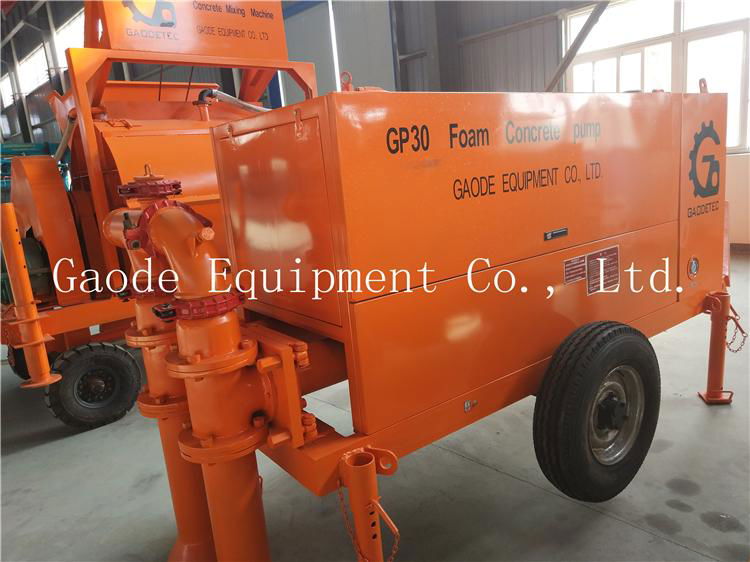

GP30 foam concrete pump is used for pumping foam concrete slurry. This foam concrete pump adopts hydraulic piston system to pump foam concrete, more powerful, easy to pour roof, floor and wall.

Model

GM2000

Production

15-20m3/h

Mixer tank

2000L

Main shaft revolution

32r/min

Hopper lifting speed

22m/min

Voltage

3 phase,380V,50Hz

Total power

23.7kw

Overall dimension

2.6*2.25*3m

Total weight

3000kg

Model

GP30

Max.Output

30m3/h

Max.Conveying pressure

4MPa

Max.Vertical transporting height

180m

Max.Horizontal transporting range

500m

Max.Particle size of aggregates

8mm

Total power

30.18kw

Overall dimension

4.2*1.4*1.7m

Total weight

2000kg



Payment Terms︰TT / LC / DP / DA
Packing︰Wooden packing
Lead Time︰15
Standards Certificate︰ISO CE
Product Image

clc foam machine
clc foam machine

clc foam machine
clc foam machine

clc foam machine
clc foam machine

clc foam machine
clc foam machine

clc foam machine
clc foam machine

clc foam machine
clc foam machine

clc foam machine
clc foam machine

clc foam machine
clc foam machine

clc foam machine
clc foam machine

clc foam machine
clc foam machine

clc foam machine
clc foam machine

clc foam machine
clc foam machine
