output 20m3/h ISO GM2000 good quality foam cement machine

clc foam making
  • clc foam making
  • foam concrete hose pump
  • cement foam making machine
  • cement foam making machine
  • clc foam making
  • clc foam making
  • foam concrete machine
  • cement foam making machine
  • cement foam making machine
  • clc foam making
  • clc foam making
Model No.︰GM2000
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 8500 / pc
Minimum Order︰1 pc
Share on:

 Total 40 Related Items
Prev12345Next

Product Description

Output 20m3/h ISO GM2000 good quality foam cement machine

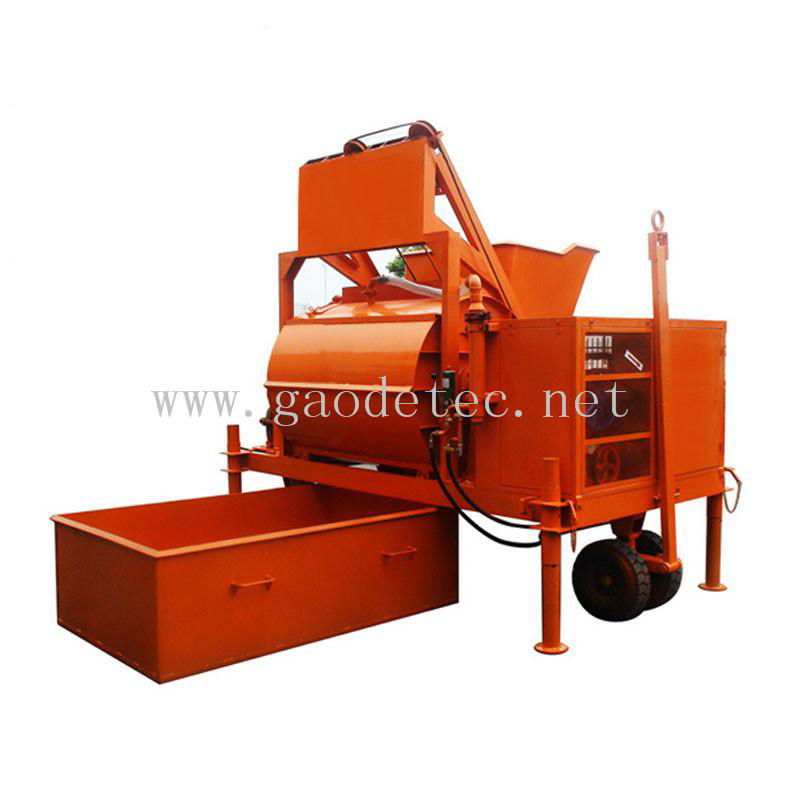

GM2000 lightweight concrete mixer includes feeding system-Track and Hopper, foaming system-Foam Generator, mixing system-Foam Concrete Mixer, controlling system-Control Panel and storing system-Stotage Tank. It is used to make lightweight foam concrete. The excellent integrity and easy operation means low labour intensity and low building cost. Besides, good strength characteristics with reduced weight, excellent sound and thermal insulation, and water proof, etc, all these performances make it an ideal substitute of present traditional walls.

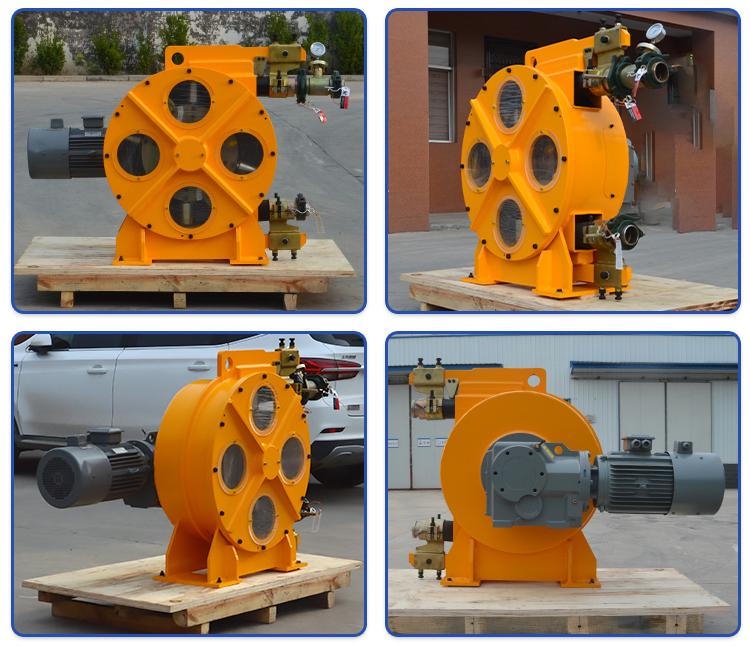

GH76 foam concrete hose pump consists mainly of pump house, rotor,roller, idle roller,squeeze tube and driving unit. It is the most suitable pump for pumping foam concrete, foam loss rate is greatly reduced.



Model

GM2000

Production

15-20m3/h

Mixer tank

2000L

Main shaft revolution

32r/min

Hopper lifting speed

22m/min

Voltage

3 phase,380V,50Hz

Total power

23.7kw

Overall dimension

2.6*2.25*3m

Total weight

3000kg



Contact Supplier:

Many thanks for visiting our web, we can supply foam concrete machine for you. Before we send quotation, please let me know the following question:

1. What project you will do? CLC , walls, floor, roof, or other?
2. How much capacity do you need?  We have 5m3/h, 10m3/h, 20m3/h, 30m3/h, 40m3/h for your choice.
3 .What materials you use to make foam concrete? Cement, sand, foam agent, water?
4. How much density of the foam concrete you want to make? We always make 400-1600kg/m3.


We have now developed full series of products with different of models. Max. output from 5-40m3 /h. Power , output, pressure and voltage are available options for customization. Of course, we also provide foam agent and foam concrete pump. I sincerely want to do business with you. If you have any questions, please contact us.

Payment Terms︰TT / LC / DP / DA
Packing︰Wooden packing
Lead Time︰15
Standards Certificate︰ISO CE
