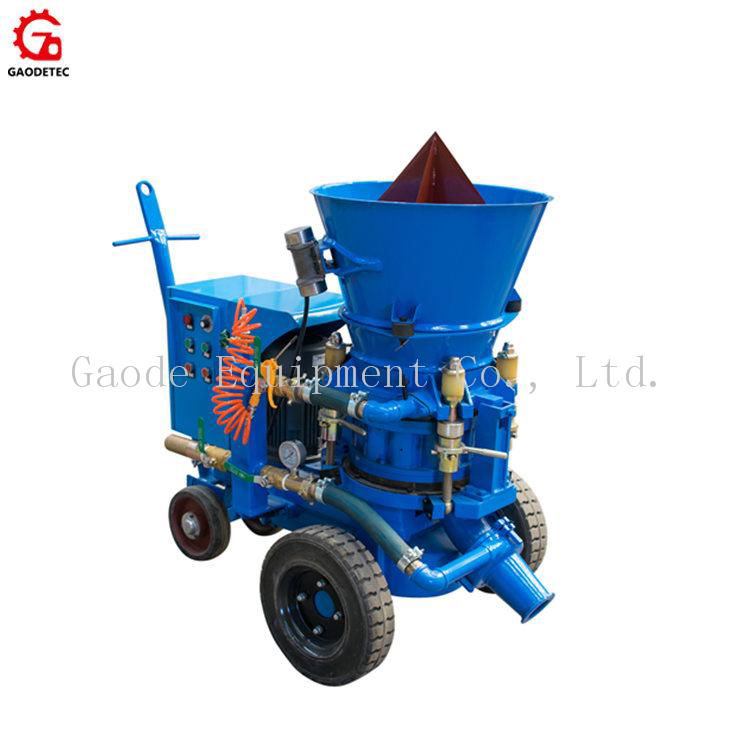

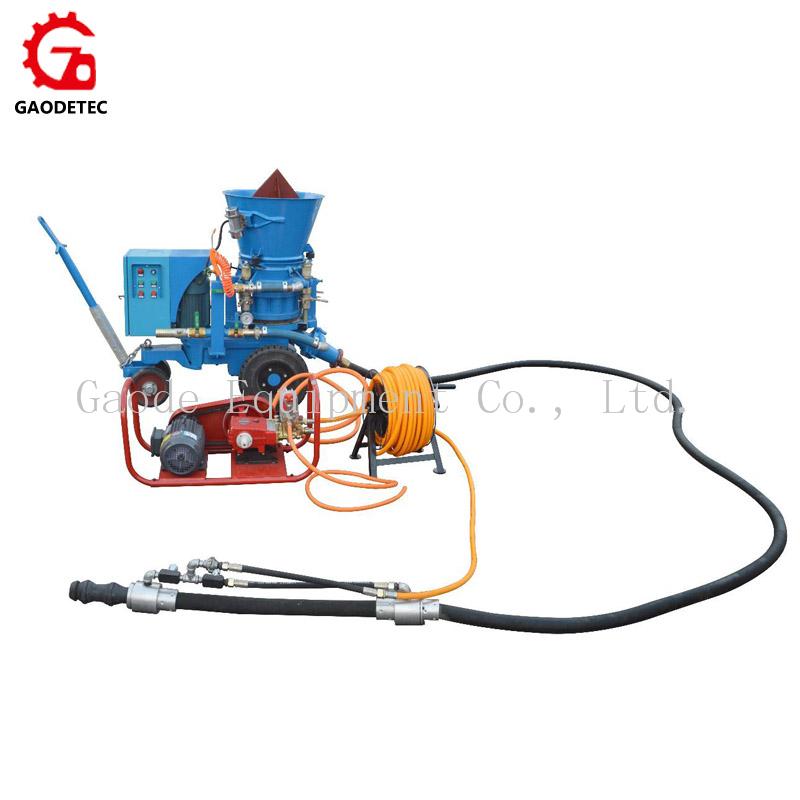

Variable output dry spraying refractory shotcrete gunning castable gunite

refractory spraying
  • refractory spraying
  • refractory shotcrete machine
  • refractory gunite machine
  • refractory gunite machine
  • refractory gunite machine
  • refractory shotcrete machine
  • refractory shotcrete machine
  • refractory shotcrete machine
Model No.︰GZ-3ER
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 5500 / pc
Minimum Order︰1 pc
Share on:

 Total 14 Related Items
Prev34567Next

Product Description

GZ-3ER is specifically designed for refractory dry-mix shotcrete applications, as well as for concrete shotcrete application.With this GZ-3ER, you can get low dust and high performance spraying flow in nozzle.

Model

GZ-3ER

Rate Output

1-3m3/h(2-6 tons/h)

Max.conveying Distance

100m

Motor Power

4kw

Max.Aggregate Size

10mm

Conveying Hose ID

32/38mm

Air Consumption

5-6m3/min

Operating Air Pressure

0.2-0.4MPa

Rotor Speed

0-13.2r/min

Weight

500kg

Overall Dimension

1.35*0.7*1.3m

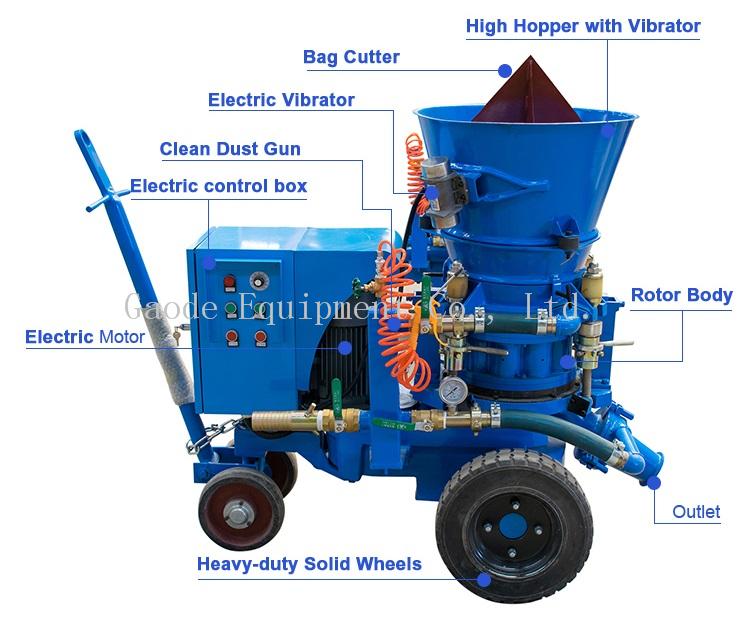

GZ-3 series refractory spraying machine has the following features:

1. Variable Output with ABB variable-frequency drive

2. Bag cutter and flat hopper with vibrator

3. Collect dust bag

4. Clean dust gun

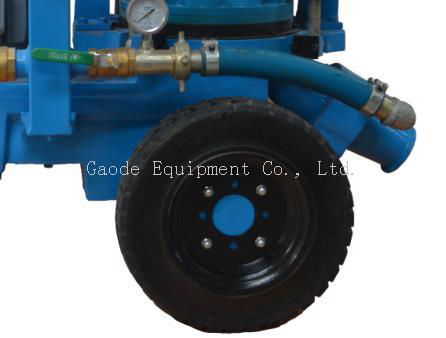

5. Heavy-duty solid wheels

6. Coupling and clamp

7. light weight nozzle

8. Blast rubber hose



Pre-sale and after-sales service:

1. Video technical support
2. Online support
3. Field installation.commissioning and training
4. Field maintenance and repair service



Contact Supplier:

Many thanks for visiting our web, we can supply refractory shotcrete machine for you. Before we send quotation, please let me know the following question:


1. What's the project you will use the machine do ?
2. What is the output do you need, 3m3/h, 5m3/h ?
3. Drive type mode? Do you want electric or air motor ?
4. Do you have any other special requirments for this machine ?


We can customize according to your requirements, just tell us the application of the product or the parameter information you need.



FAQ:
1.Q: Are you a manufacturer or a trade company?
A: We are a manufacturer, and we have our own foreign trade department, we market our own products.
2.Q: How long is your product warranty ?
A: 12 months is available from the date of shipment.
3.Q: I plan to put our label to your product ,is it possible ?
A: Of course, it is ok. OEM and ODM is available for us, please send your logo, brand name and other info to us , then we’ll produce them per your requires.
4.Q: How can you ensure your product quality?
A: We have our professional testing department, after finishing the machine,we’ll test the machine for twice before shipment
5.Q: Payment?
A: We will confirm the payment with you when quoting, like FOB, CIF or others. we accept 30% deposit, and shipping after paying the balance . T/T is the main payment, and L/C is acceptable as well.

Payment Terms︰TT / LC / DP / DA
Packing︰Wooden packing
Lead Time︰15
Standards Certificate︰ISO CE
