GH15-200B adjustable peristaltic pump for dosing of chemicals price

dosing hose pump
  • dosing hose pump
  • dosing hose pump
  • dosing hose pump
  • dosing hose pump
  • dosing hose pump
  • dosing hose pump
  • dosing hose pump
  • dosing hose pump
  • dosing hose pump
  • dosing hose pump
  • dosing hose pump
  • dosing hose pump
Model No.︰GH15-200B
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 2200 / pc
Minimum Order︰1 pc
Share on:

 Total 2 Related Items
12Next

Product Description

GH15-200B adjustable peristaltic pump for dosing of chemicals price

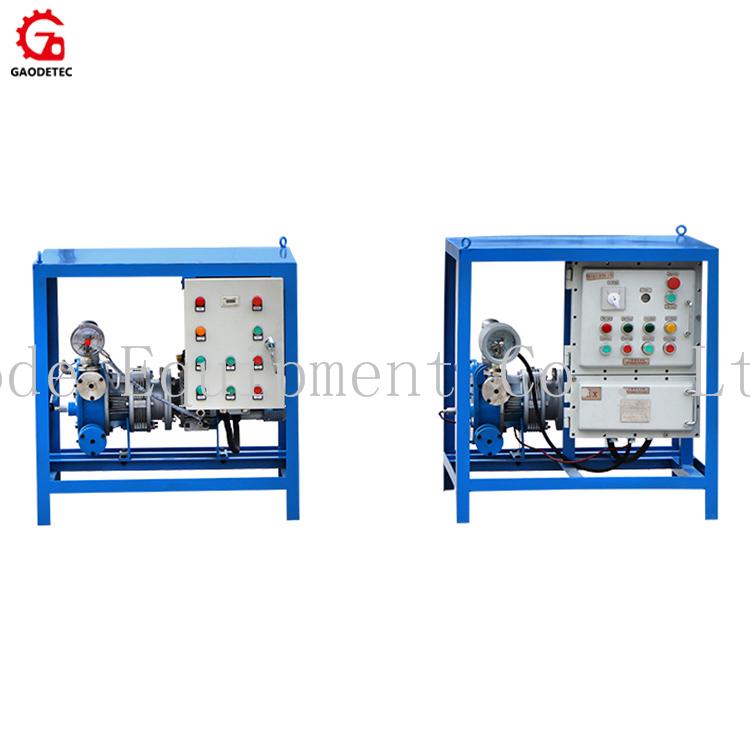

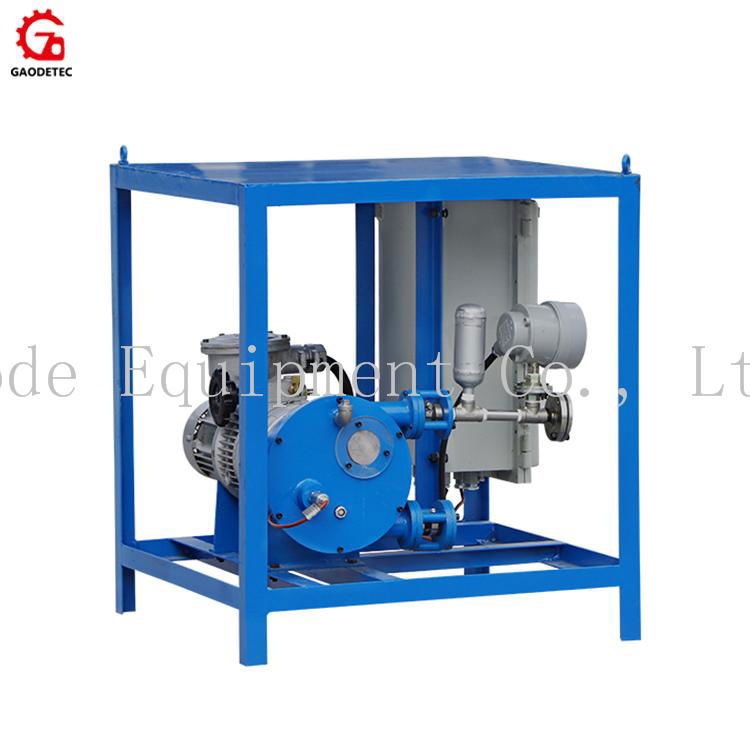

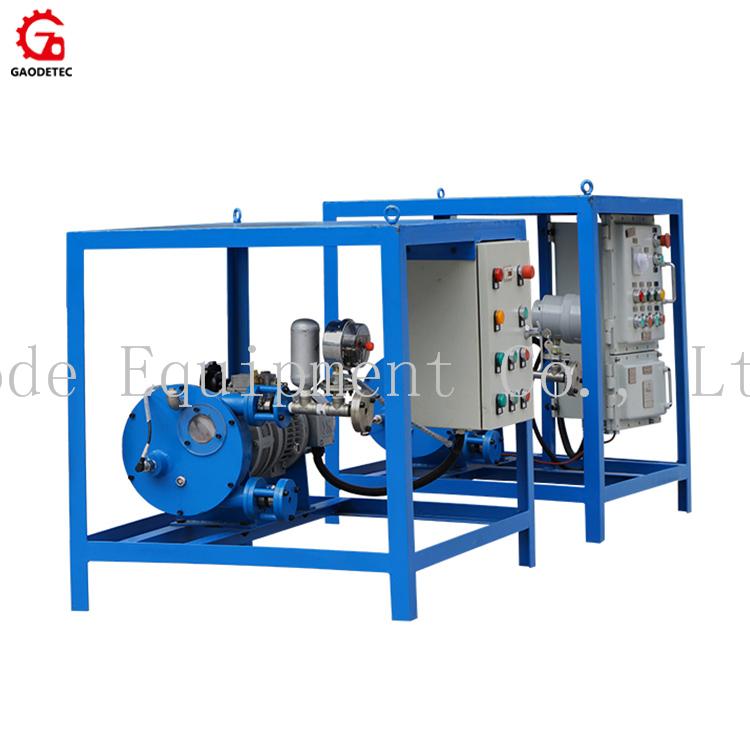

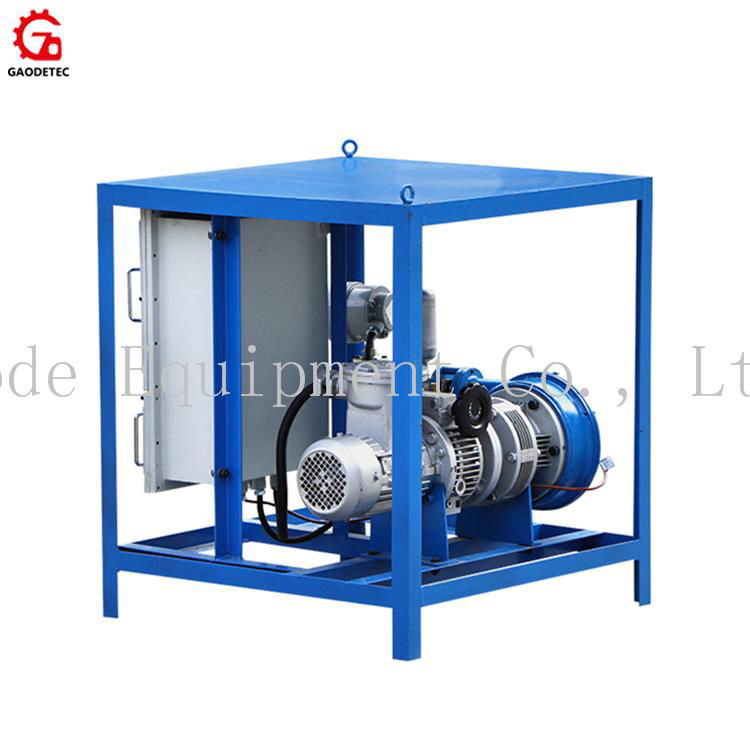

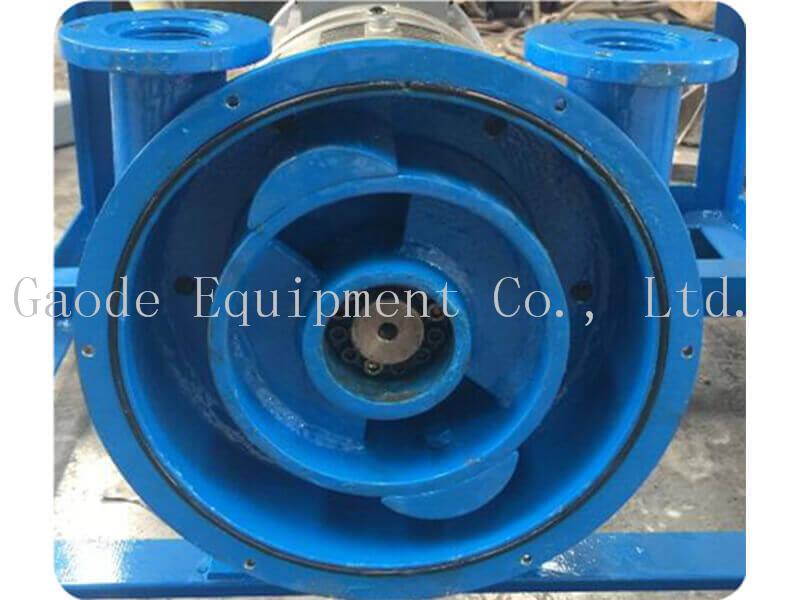

GH15-200 series dosing hose pump consists mainly of pump house, pressure shoes, driving plate, motors, variable speed gear box, reinforced hose etc.  simple structure, easy to maintain, dry-run without damage, no noise. This dosing hose pump output is 300L/h.

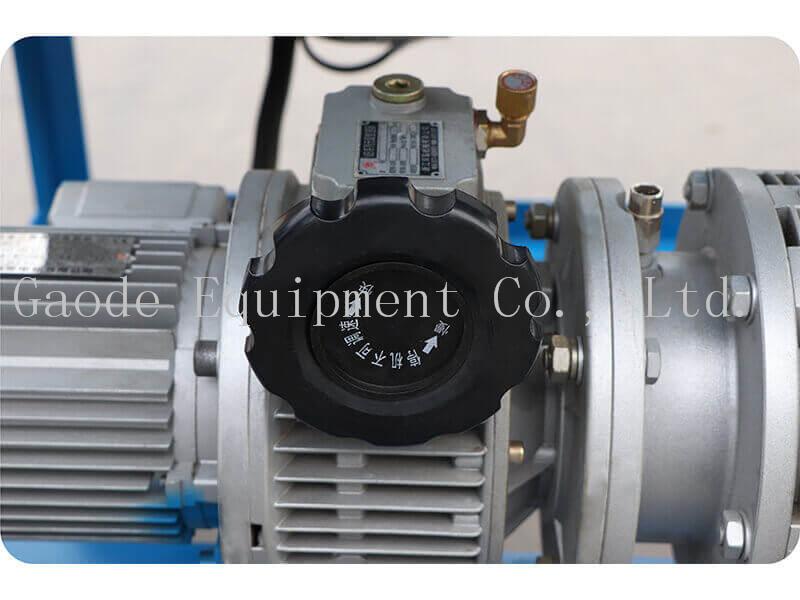

Flow rate can be adjusted by speed control handle, flow stability accuracy can up to ± 1%, specially suitable for viscous slurry dosing and pumping etc.

We are the factory, we can customize according to your requirements. If you have any questions, please contact us and we will provide you with the corresponding product parameters and quotations. Contact us for more information.

Description

Item

Dosing Pump

GH15-200

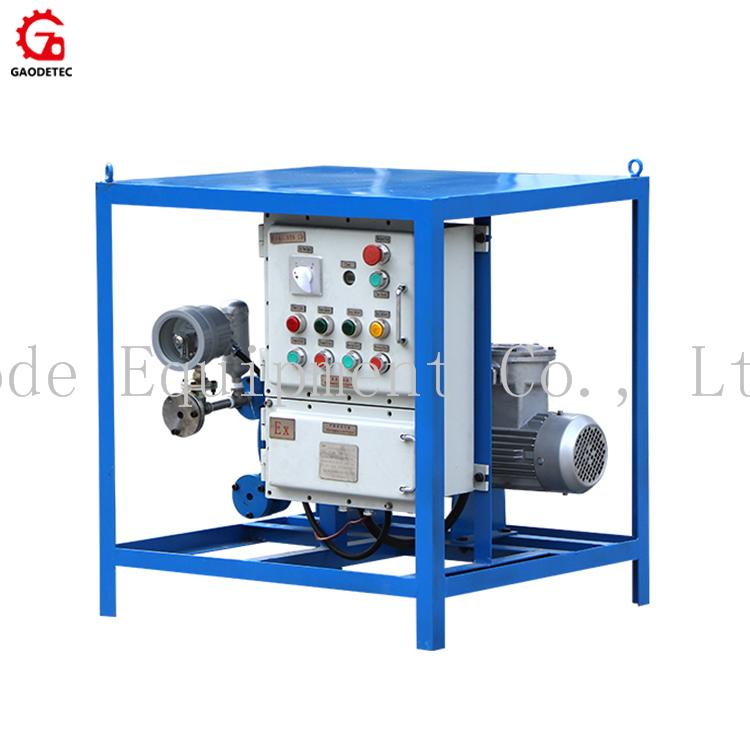

GH15-200 (EX)

Speed

60rpm

60rpm

Output

300L/h

300L/h

Pressure

15bar

15bar

Squeeze Hose ID

15mm

15mm

Power

0.75Kw

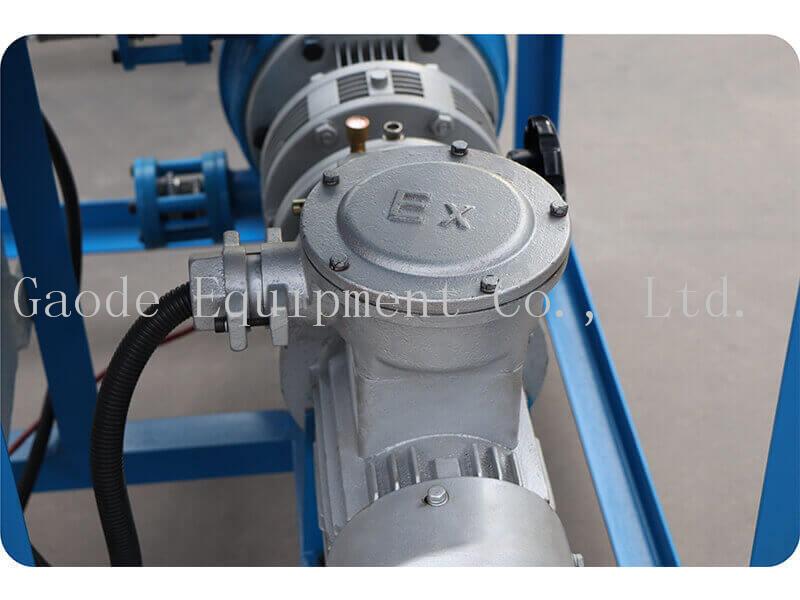

0.75Kw (explosion proof motor)

Overall Dimension

800×750×800mm

800×750×850mm

Weight

101kg

162kg

Payment Terms︰TT / LC / DP / DA
Packing︰Wooden packing
Lead Time︰15
Standards Certificate︰ISO CE
Product Image

dosing hose pump
dosing hose pump

dosing hose pump
dosing hose pump

dosing hose pump
dosing hose pump

dosing hose pump
dosing hose pump

dosing hose pump
dosing hose pump

dosing hose pump
dosing hose pump

dosing hose pump
dosing hose pump

dosing hose pump
dosing hose pump

dosing hose pump
dosing hose pump

dosing hose pump
dosing hose pump

dosing hose pump
dosing hose pump

dosing hose pump
dosing hose pump

Related Products
dosing pump
GH15 Dosing Pump Unit
US $ 1590
