Portable Air Drive Dry Refractory Gunning Concrete Shotcrete Machine

refractory shotcrete
  • refractory shotcrete
  • refractory shotcrete
  • refractory shotcrete
  • refractory shotcrete
  • refractory shotcrete
  • refractory shotcrete
  • refractory shotcrete
  • refractory shotcrete
Model No.︰GZ-3AR
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 5500 / pc
Minimum Order︰1 pc
Share on:

 Total 14 Related Items
Prev12345Next

Product Description

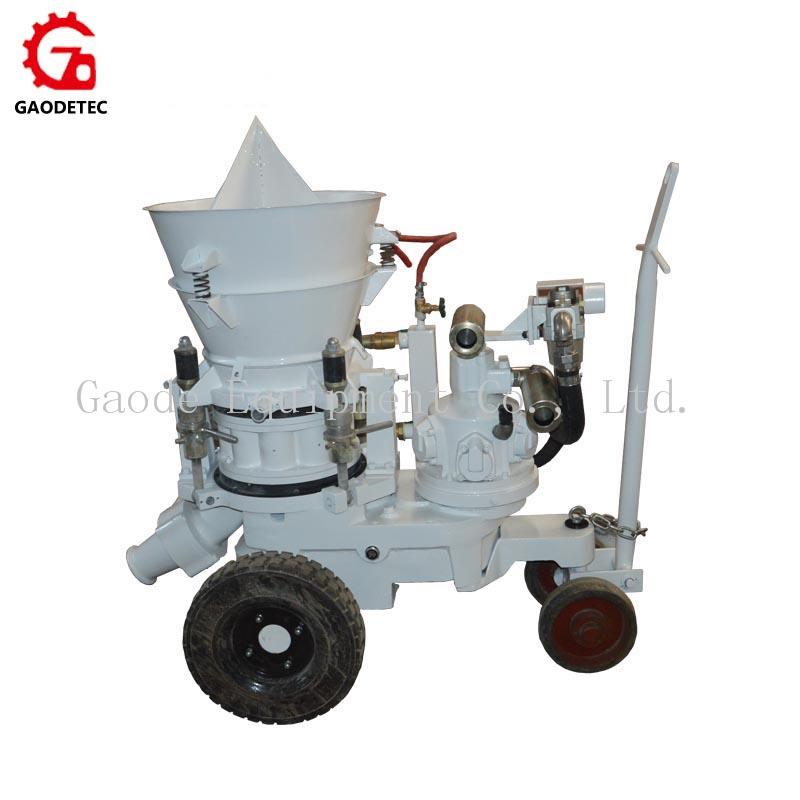

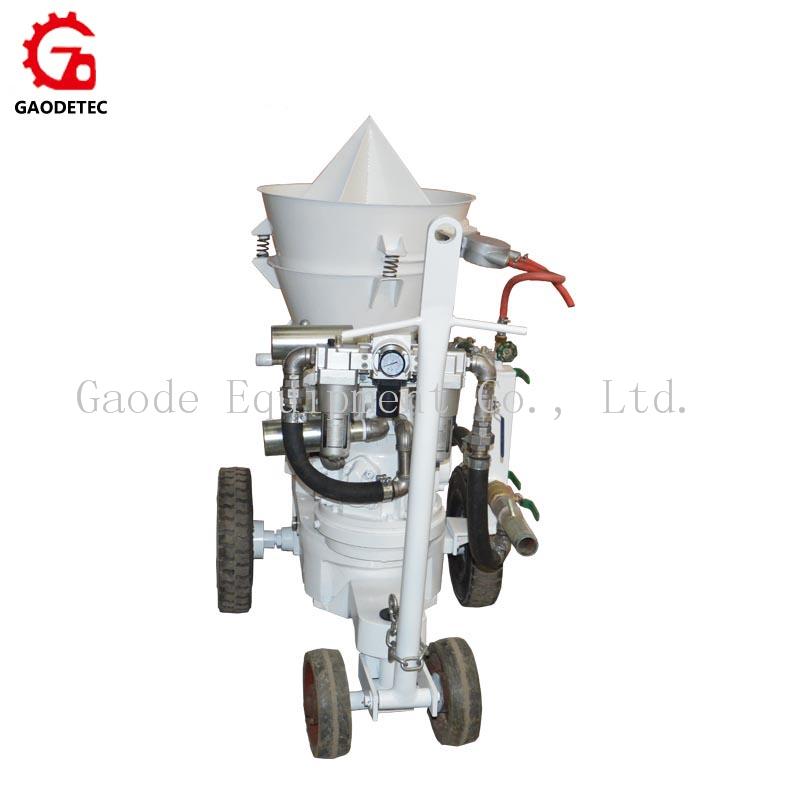

Portable Air Drive Dry Refractory Gunning Concrete Shotcrete Machine

Please copy the link to the product website for more products and information

Our website: www.gaodetec.net

Description:

GZ-3AR is specifically designed for Refractory Dry-mix shotcrete applications, as well as for concrete shotcrete application. With this GZ-3AR, you can get low dust and high performance spraying flow in nozzle.

And we also have electric drive refractory gunning concrete shotcrete machinefor option.

Parameters:

Model

GZ-3AR

GZ-3ER

GZ-5ER

Rate output

1-3m3/h

1-3m3/h

1-5m3/h

Motor drive

air

electric

electric

Max.horizontal converying distance

100m

100m

100m

Max. Aggregate size

10mm

10mm

15mm

Conveying hose inner diameter

38mm

38mm

51mm

Operating air pressure

0.2-0.4MPa

0.2-0.4MPa

0.2-0.4MPa

Air consumption

10-11m3/min

5-6m3/min

8-9m3/min

Motor power

/

4kw

5.5kw

Material charging height

1.3m

1.3m

1.4m

Rotor speed

0-13.2r/min

0-13.2r/min

0-13.2r/min

Overall dimensions

1.35*0.7*1.3m

1.35*0.7*1.3m

1.4*0.75*1.45m

weight

500kg

500kg

650kg



Feature:

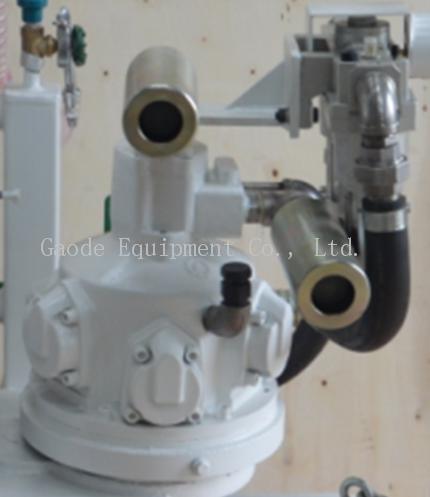

  • 5 cylinders piston air motor, more powerful
  • Straight chamber rotor type refractory gunning machine

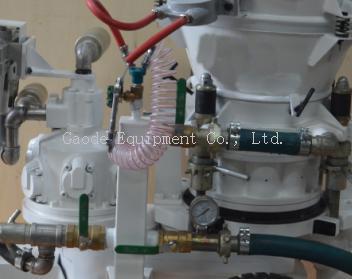

  • New type pre-dampening nozzle assy, less rebound, reduce dust emission
  • High pressure water pump, 30bar pressure make sure to add water fully atomize, mix evenly



Application:

The refractory gunning concrete shotcrete machine is widely used in:

  • Refractory spraying and repair for industrial kiln’s inner liner
  • Dry-mix shotcrete for tunnel building, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, ect
  • Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface

Contact Supplier:

Many thanks for visiting our web, we can supply refractory shotcrete machine for you. Before we send quotation, please let me know the following question:


1. What's the project you will use the machine do ?
2. What is the output do you need, 3m3/h, 5m3/h ?
3. Drive type mode? Do you want electric or air motor ?
4. Do you have any other special requirments for this machine ?


We can customize according to your requirements, just tell us the application of the product or the parameter information you need.

Payment Terms︰TT / LC / DP / DA
Packing︰Wooden packing
Lead Time︰12-15days
Standards Certificate︰ISO CE
