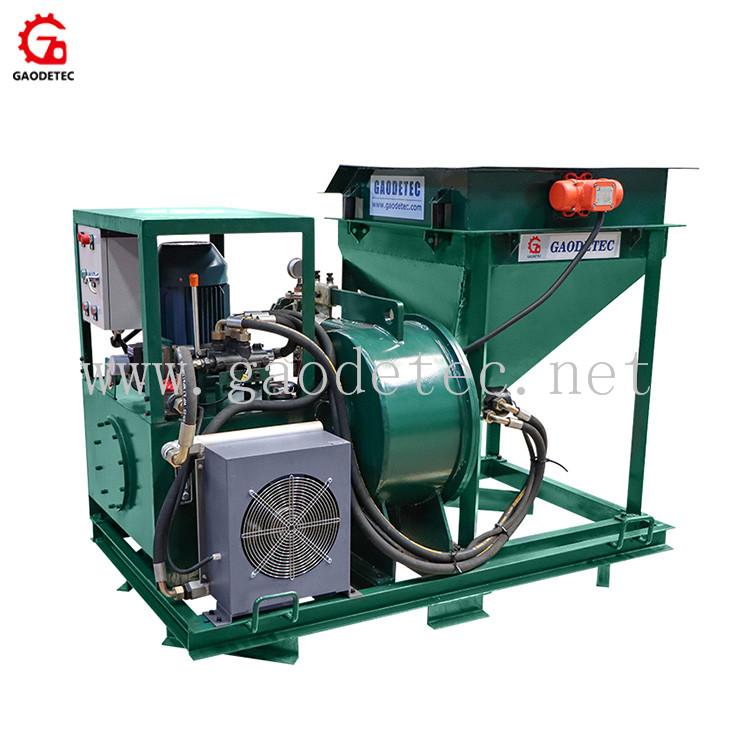

GDS1500E wet mix concrete electric motor shotcrete pump machine for sale
Please copy the link to the product website for more products and information
Our website: www.gaodetec.net
Introduction：

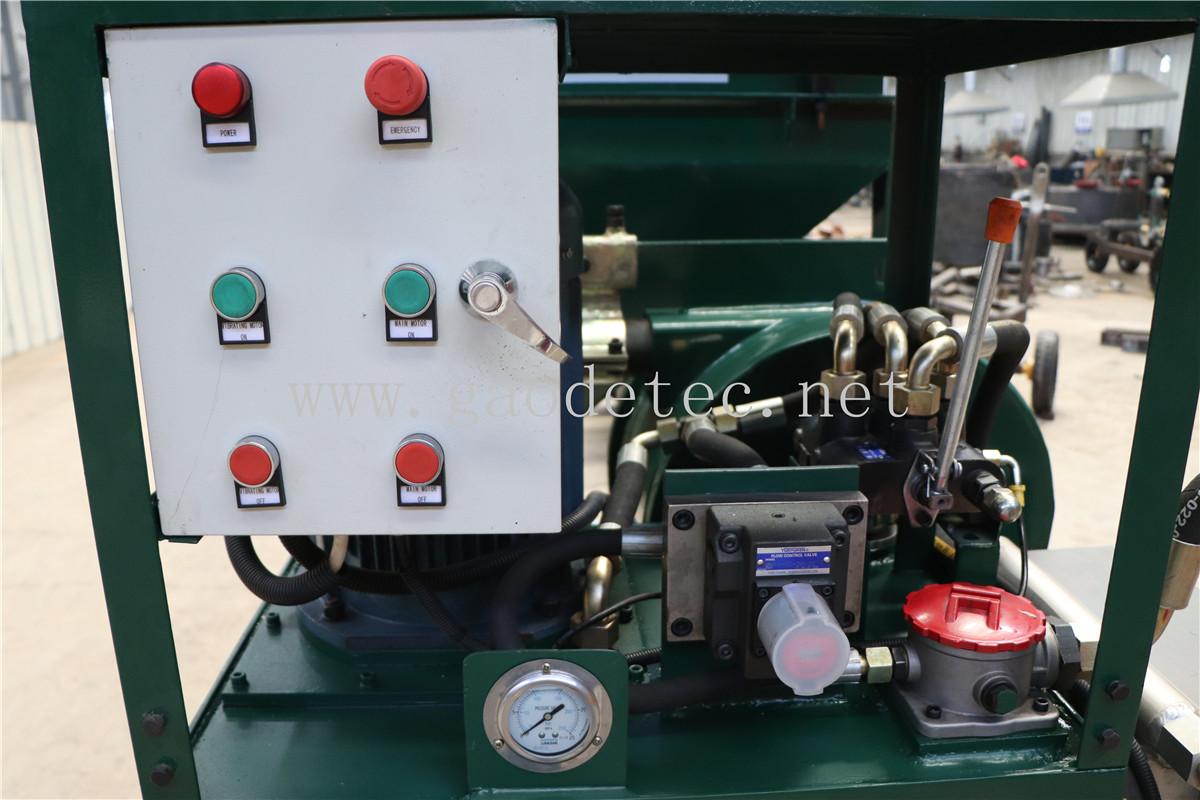

The GDS1500 is a lightweight shotcrete pump run by a highly-reliable direct drive planetary gearbox and hydraulic power pack. This sturdy workhorse is made better with the added improvement of a direct drive to the carousel.
Feature description：
1) Highly reliable direct drive planetary gearbox
2) Infinite speed variation
3) Easily operating on site work
4) Standard spare part supply
Data Sheet：
|
Pressure
|
1.5 Mpa (Chinese Hose)/ 3.5 Mpa (Trelleborg Hose)
|
|
Output
|
1.5-3m3/h
|
|
Max. Aggregate
|
10mm
|
|
The Squeeze Hose
|
ID 50mm
|
|
Conveying Hose
|
ID 38mm
|
|
Squeeze Pump
|
GH50-455
|
|
Power
|
5.5kw, electric motor
|
|
Overall Dimension
|
1900x850x1250mm
|
|
Hopper Volume
|
200 Liter
|
|
Weight
|
610kg
|
|
Requested air compressor:
|
3m3/min, 0.5Mpa Pressure
|
|
Vertical Conveying Distance
|
15 m (Chinese Hose)/30 m (Trelleborg Hose)
|
|
Horizontal Conveying Distance
|
40 m (Chinese Hose)/80 m (Trelleborg Hose
|
List of Parts in a Complete Set：
|
No.
|
Description
|
Qty.
|
Unit
|
Remarks
|
|
1
|
GDS1500 main machine
|
1
|
set
|
|
|
2
|
pump squeeze hose
|
1
|
pcs
|
|
|
3
|
conveying hose, ID38, L10m
|
2
|
pcs
|
|
|
4
|
reducer 2'/1.5'
|
1
|
pcs
|
|
|
5
|
shotcrete nozzle assy.
|
1
|
set
|
|
|
6
|
nozzle tip
|
1
|
pcs
|
|
|
7
|
clamp
|
1
|
pcs
|
|
|
8
|
clean ball
|
2
|
pcs
|
|
|
9
|
accessories
|
1
|
Set
|
|
Contact Supplier:
Many thanks for visiting our web, we can supply shotcrete machine for you. Before we send quotation, please let me know the following question:
1. What's the project you will use the machine do, for slope protect, or other?
2. Do you need dry-mix shotcrete machine or wet-mix shotcrete machine?
3. What's the output you need, 3m3/h, 5m3/h, 9m3/h, or other?
4. What's the maximum particle size of the material, less than 10mm, 15mm, or 20mm?
5. About the engine, do you need air motor, electric or diesel ? What voltage it is on your local? It is 3 phase 380V 50Hz in China.
We have many standard models for your option, and we also could customize as per your requirement. Please tell us your requirements and we will provide you with the corresponding product parameters and quotations. If you have any questions, please contact us.
