Professional Manufacturer 5m3/h electric drive wet shotcrete machine for mine

shotcrete machine
  • shotcrete machine
  • concrete shotcrete
  • concrete shotcrete
  • shotcrete machine factory
  • shotcrete machine
  • shotcrete machine
  • shotcrete machine packing
  • shotcrete machine
  • shotcrete machine
Model No.︰GSZ3000E
Brand Name︰gaodetec
Country of Origin︰China
Unit Price︰US $ 7500 / pc
Minimum Order︰1 pc
Share on:

 Total 20 Related Items
Prev1011121314Next

Product Description

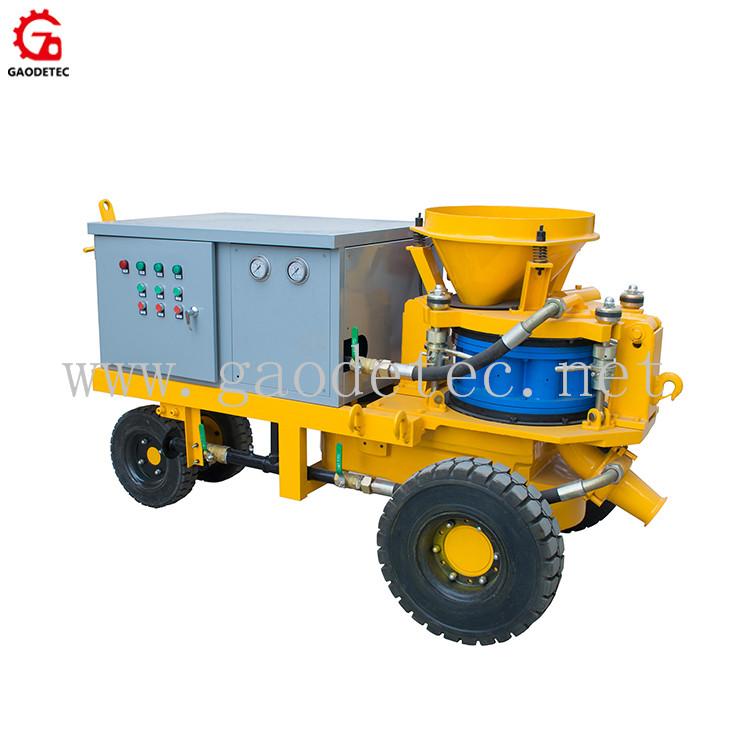

 Professional Manufacturer 5m3/h electric drive wet shotcrete machine for mine

Description:

GSZ3000E gunite machine is a universal concrete spraying machine for the processing of wet or dry mix.

The machine is suitable either for manual spraying or by means of a robotic arm.

GSZ3000E is developed for the application of shotcrete in tunnel building, mines and slopes. This machine has been designed especially for fibre spraying. And the dosing unit is combined with this machine.

Basic: Electric drive can be combined with tyre chassis.

Extended (optional):

Air motor drive combined with Skid or Rail-wheel

Specification:

GSZ3000 electric motor drive:

Specification (with Electric motor drive):

Rated Output

5m3 /h

Max. Horizontal Conveying Distance

35m

Max. Aggregate Size

15mm

Concrete Slump

8 -15cm

Conveying Hose Inner Diameter

51/ 64mm

Operating air Pressure

0.3-0.6MPa (43-86PSI)

Air Consumption

10~ 12m3 /min(357-430CFM)

Main Motor Power

7.5kW(10hp)

Dosing Pump:

BRJ15

Dosing Pump Rated Pressure

0.6MPa(86PSI)

Dosing Pump Output

17.5 -88L /h

Voltage

220V, 380V, 440V, 660V, 50Hz/60Hz

Material Charging Height

1.17m

Rotor Speed

11r/min

Overall Dimension(L × W × H)

2.05× 0.95× 1.18m

Net Weight

1200kg

You also have other option

GSZ3000 air motor drive:

Rated output

5m3/h

Max. horizontal conveying distance

35m

Max. aggregate size

Dia.15mm

Concrete slump

8~15cm

Conveying hose

Dia.50/65mm

Operating air pressure

0.2~0.6MPa

Air consumption

22m3/min (12+10)

Loading height

1.17m

Rotor Speed

11r/min

Rebound

≤10 %

Air motor power

8kW

Dosing pump model

BHA530 Dosing pump

Dosing pump rated pressure

0.5MPa

Dosing pump output

0~100L/h

Overall dimension(L×W×H)

1950×1050×1360mm

Weight

1200Kg

 A complete set of GSZ3000E gunite machine:

No.

Description

Quantity

Unit

Remarks

1

Main Machine

1

set



2

Nozzle Assy.

1

set



3

Conveying Hose, ID64mm, 50ft.Length

1

piece



4

Rubber Hose Joint

3

piece

Fitting

5

Quick Coupling

3

piece



6

Upper Sealing Plate

1

piece



7

Lower Sealing Plate

1

piece



8

Dosing pump tube

1

piece





Contact Supplier:

Many thanks for visiting our web, we can supply shotcrete machine for you. Before we send quotation, please let me know the following question:


1. What's the project you will use the machine do, for slope protect, or other?
2. Do you need dry-mix shotcrete machine or wet-mix shotcrete machine?
3. What's the output you need, 3m3/h, 5m3/h, 9m3/h, or other?
4. What's the maximum particle size of the material, less than 10mm, 15mm, or 20mm?
5. About the engine, do you need air motor, electric or diesel ? What voltage it is on your local? It is 3 phase 380V 50Hz in China.


We have many standard models for your option, and we also could customize as per your requirement. Please tell us your requirements and we will provide you with the corresponding product parameters and quotations. If you have any questions, please contact us.

Payment Terms︰TT / LC / DP / DA
Packing︰Wooden packing
Lead Time︰12-15days
Standards Certificate︰ISO CE
