transcrete concrete electric pump equipment for sale

concrete pump
  • concrete pump
  • concrete pump
  • concrete pump
  • concrete pump
  • concrete pump
Model No.︰GCP40H-E
Brand Name︰gaodetec
Country of Origin︰China
Unit Price︰US $ 6999 / pc
Minimum Order︰8500 pc
Share on:

 Total 12 Related Items
Prev45678Next

Product Description

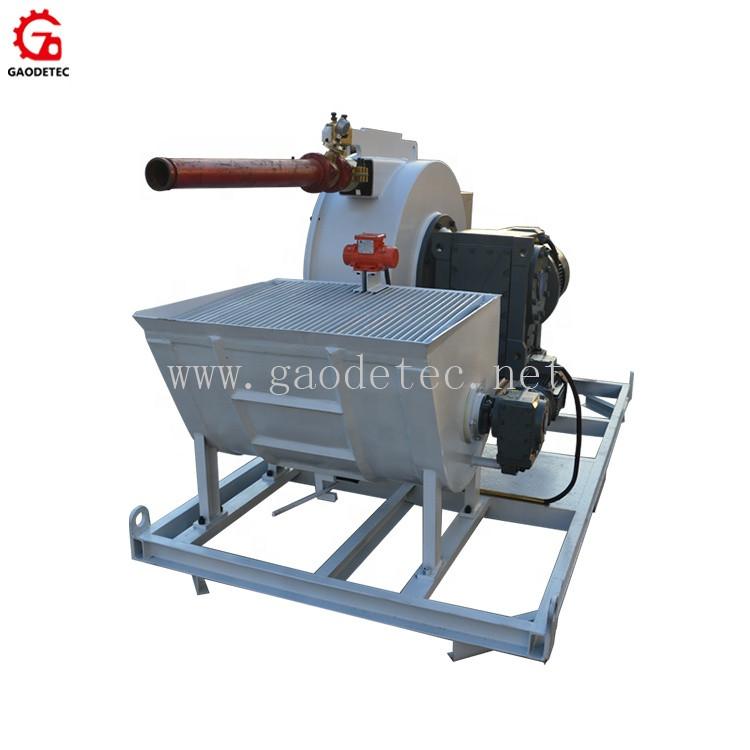

Transcrete concrete electric pump equipment for sale

GCP40H-E hose type concrete pump was designed based on the squeeze hose pump, this concrete pump uses high pressure, resisting wear squeeze concrete hose with steel wire reinforcement layers, the working pressure is up to 25 bars. More widely used for pumping foam concrete, lightweight form concrete, mortar and refractory materials. The concrete pump also could be used for spraying concrete or refractory materials.

Product Feature

1. Compact size: hopper with agitator, hose pump, power combined in a base frame.

2. Soft start: electric motor smoothly start and protect the motor

3. Low wear: the squeeze hose is the only wear part of the pump and can be replaced very quickly

4. Delivers even the most difficult materials

5. Quiet pumping process

6. Forwards and reverse, easily to removal the block.

7. Clean on the line: Quick and easy cleaning

8. No residual concrete remains in the system



Description

parameter

Squeeze Pump

GH100-1050

Hose ID

100mm (Trelleborg Squeeze hose)

Speed

39rpm

Output

40m3/h

Pressure

2.5Mpa

Max. Aggregate size

<25mm

Concrete Slump

15-23cm

Hopper Capacity

400L

Stirring speed

37rpm

Reducer Model

NR137

Voltage

45KW  50HZ  IP55  3~380V

Overall Dimension

3080x1560x1730mm

Weight

2840kg

Payment Terms︰TT / LC / DP / DA
Packing︰Wooden packing
Lead Time︰12-15days
Standards Certificate︰ISO CE
Product Image

concrete pump
concrete pump

concrete pump
concrete pump

concrete pump
concrete pump

concrete pump
concrete pump

concrete pump
concrete pump
