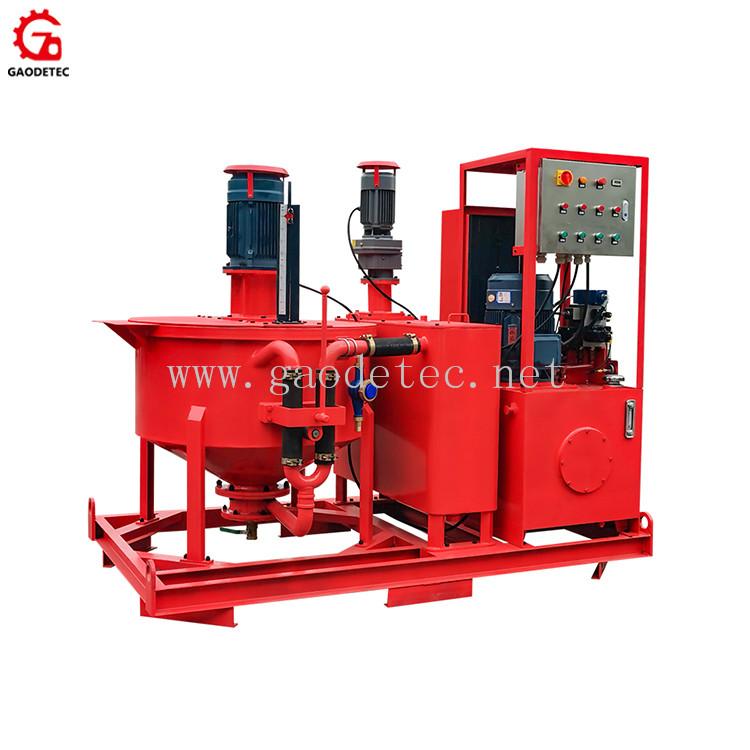

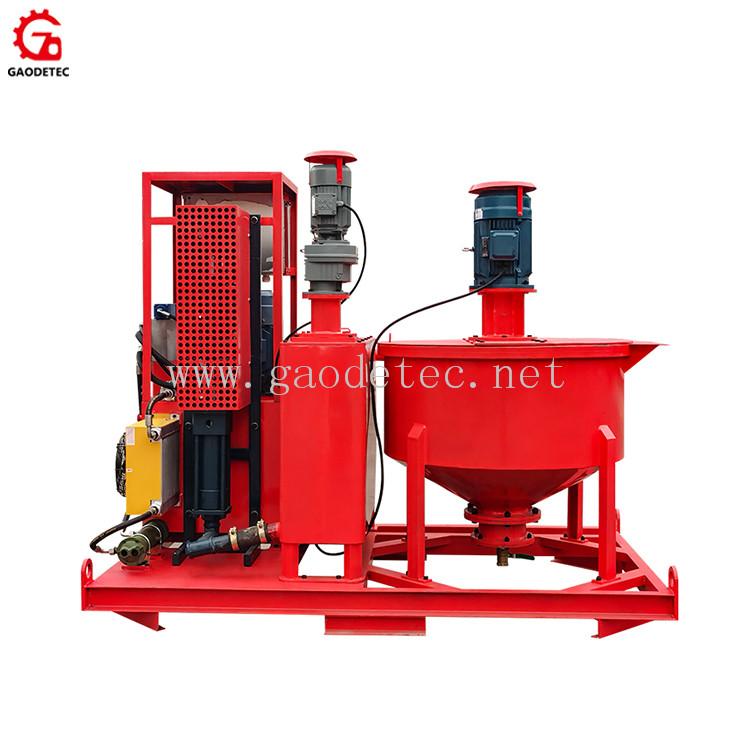

GGP300/300/75PI-E electric cement grout injection station machine for mine application
GGP300/300/75PI-E grout station is a combination of mixer, agitator and grout pump in one plant. It is mainly used in highway, railway, hydropower, construction, mining and other ground and underground construction.
Grout plant have special mixing effect of cement or bentonite with water is archived in mixer by a high turbulence created in the pump casing. This turbulence with its high shear forces separates the cement or bentonite particles which results in a fully hydrated suspension.
As soon as the mixing process is over, the mixing is transferred into the agitator. The slow stirring paddle prevents the grout from settling out of suspension and removes any air bubbles from the mix. Each machine incorporates mixers and pumps of matched capacity which together with an agitated storage tank enable virtually continuous operation once work has commenced.
|
Description
|
Data
|
|
Grout station model
|
GGP300/300/75PI-E
|
|
Dimensions
|
2330x1260x1790mm
|
|
Weight
|
1125kg
|
|
Mixer
|
|
Capacity
|
300L
|
|
Output
|
4.5m3/h
|
|
Power
|
7.5Kw, 1450rpm,50Hz,380V
|
|
Rated Rev
|
1450rpm
|
|
W/C
|
≥0.5~1
|
|
Agitator
|
|
Capacity
|
300L
|
|
Rated Rev.
|
36rpm
|
|
Power
|
1.5KW, 50Hz,50HZ ,380V
|
|
Pump
|
|
Output and pressure
|
0-75L/min,0-50Bar (high-speed)
|
|
0-38L/min ,0-100bar (low-speed)
|
|
Power
|
11kw, 50Hz,380V
|
GGP300/300/75 PI-E grout station feature:
1. Hydraulic reversing and Hydraulic drive for vertical grouting pump
2. Grouting pressure and output are step-less adjustable
3. Using rectangular agitator, makes the plant has compact structure, small size
4. With high speed and low speed, by rotating ball valve switch
5. With function of record and display grouting pump reciprocating times by a counter
6. High speed vortex mixer ensures mix quickly and evenly
7. Mixer and agitator switch by using squeeze handle, it is safe, reliable and easy to operate
8. The motor has an overload protection function. Hydraulic system with oil temperature overheating protection
Contact Supplier:
Many thanks for visiting our web, we can supply grout station for you. Before we send quotation, please let me know the following question:
1. How about the flow and pressure of the pump you want, please?
2. How about the water and cement ratio, does any sand in?
3. About the power: electric (voltage and frequency) or diesel?
Please tell us your requirements and we will provide you with the corresponding product parameters and quotations. We also could customize as per your requirement. If you have any questions, please contact us.
