Factory price cement injection grout pump mixer machine for sale

cement injection station
  • cement injection station
  • cement injection station
  • grout pump station
  • grout pump station
  • grout pump station
  • grout station price
  • grout station price
  • grout station price
  • grout station price
  • grout pump station
  • grout pump station
Model No.︰GGP300/300/75PI
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 11000 / pc
Minimum Order︰1 pc
Share on:

 Total 73 Related Items
Prev1516171819Next

Product Description

Factory price cement injection grout pump mixer machine for sale

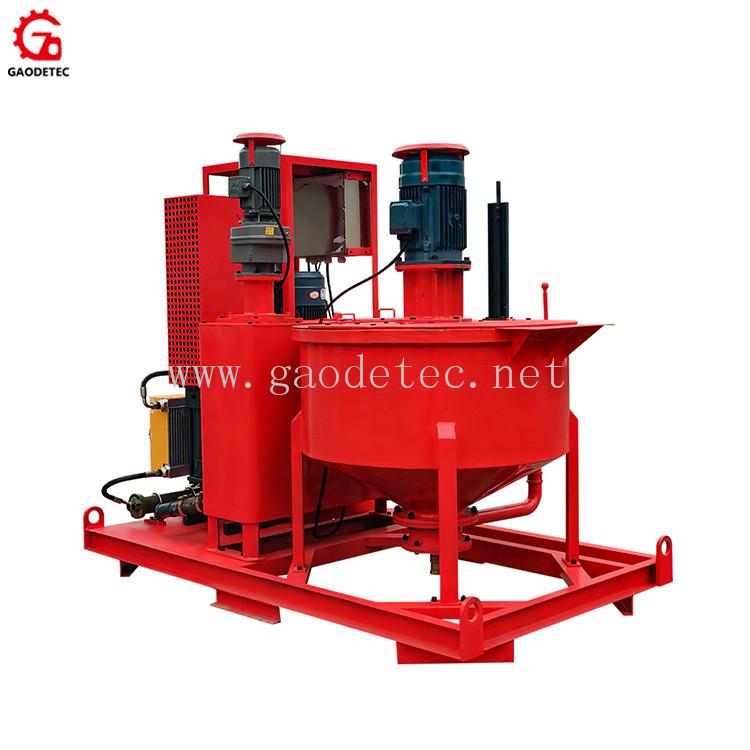

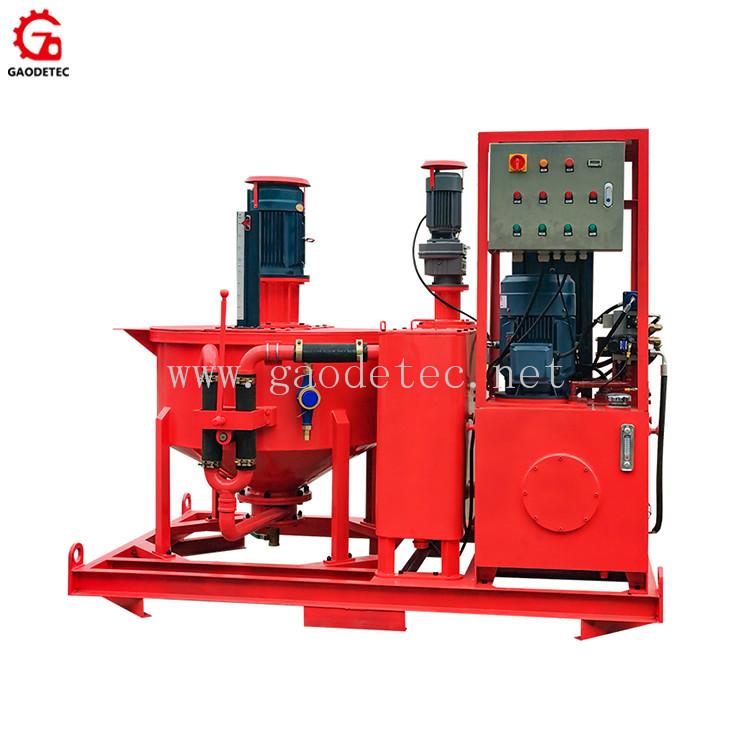

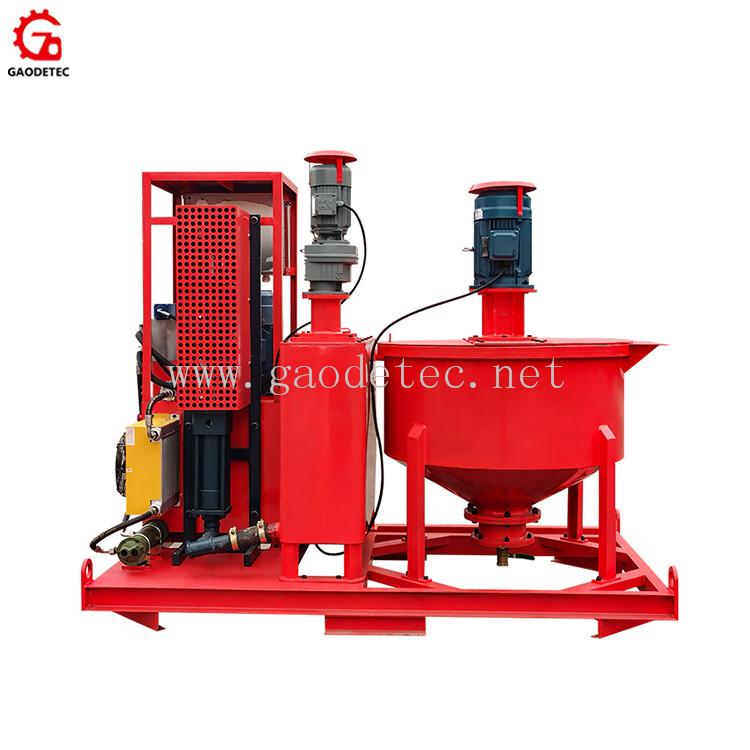

GGP300/300/75PI-E grout station is a combination of mixer, agitator and grout pump in one plant. It is mainly used in highway, railway, hydropower, construction, mining and other ground and underground construction.

Grout plant have special mixing effect of cement or bentonite with water is archived in mixer by a high turbulence created in the pump casing. This turbulence with its high shear forces separates the cement or bentonite particles which results in a fully hydrated suspension.

As soon as the mixing process is over, the mixing is transferred into the agitator. The slow stirring paddle prevents the grout from settling out of suspension and removes any air bubbles from the mix. Each machine incorporates mixers and pumps of matched capacity which together with an agitated storage tank enable virtually continuous operation once work has commenced.

Description

Data

Grout station model

GGP300/300/75PI-E

Dimensions

2330x1260x1790mm

Weight

1125kg

Mixer

Capacity

300L

Output

4.5m3/h

Power

7.5Kw, 1450rpm,50Hz,380V

Rated Rev

1450rpm

W/C

≥0.5~1

Agitator

Capacity

300L

Rated Rev.

36rpm

Power

1.5KW, 50Hz,50HZ ,380V

Pump

Output and pressure

0-75L/min,0-50Bar (high-speed)

0-38L/min ,0-100bar (low-speed)

Power

11kw, 50Hz,380V



GGP300/300/75 PI-E grout station feature:

1. Hydraulic reversing and Hydraulic drive for vertical grouting pump

2. Grouting pressure and output are step-less adjustable

3. Using rectangular agitator, makes the plant has compact structure, small size

4. With high speed and low speed, by rotating ball valve switch

5. With function of record and display grouting pump reciprocating times by a counter

6. High speed vortex mixer ensures mix quickly and evenly

7. Mixer and agitator switch by using squeeze handle, it is safe, reliable and easy to operate

8. The motor has an overload protection function. Hydraulic system with oil temperature overheating protection

We are the grout station factorywe can customize according to your requirements. If you have any questions, please contact us and we will provide you with the corresponding product parameters and quotations.

1. How about the flow and pressure of the pump you want, please ?

2. How about the water and cement ratio, does any sand in ?

3. About the power: electric (voltage and frequency) or diesel ?

Of course if you have special request for the mixer volume and agitator volume, please let us know.



Application:

1. Civil engineering - dam, tunnel, subway, mine, soil nailing wall, curtain, anchor, cable trench and anchor grouting

2. Building structure - building and bridge repair, foundation reinforcement, slope support, soil compaction, terrg grouting

3. Engineering - underwater foundation, offshore platform, coast foundation grouting reinforcement

4. Mine application - roadway reinforcement, backfill, waterproof grouting

5. Geotechnical - deep well casing, monitor wells, well sealing and abandonment

6. Acted as a grouting plant in the pipe jacking machine

Contact Supplier:

Many thanks for visiting our web, we can supply grout station for you. Before we send quotation, please let me know the following question:


1. How about the flow and pressure of the pump you want, please?
2. How about the water and cement ratio, does any sand in?
3. About the power: electric (voltage and frequency) or diesel?


Please tell us your requirements and we will provide you with the corresponding product parameters and quotations. We also could customize as per your requirement. If you have any questions, please contact us.

Payment Terms︰TT / LC / DP / DA
Packing︰Wooden packing
Lead Time︰12-15days
Standards Certificate︰ISO CE
