Grass Seed Spraying Machine Hydroseeding

China landscaping hydroseeder
  • China landscaping hydroseeder
  • China landscaping hydroseeder
  • Grass Seed Spraying Machine Hydroseeding
  • Grass Seed Spraying Machine Hydroseeding
  • Grass Seed Spraying Machine Hydroseeding
  • Grass Seed Spraying Machine Hydroseeding
  • Grass Seed Spraying Machine Hydroseeding
  • Grass Seed Spraying Machine Hydroseeding
Model No.︰GHS8380T
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 18000 / pc
Minimum Order︰1 pc
Share on:

 Total 9 Related Items
Prev45678Next

Product Description

Grass Seed Spraying Machine Hydroseeding

Product description:

GHS8380T hydroseeder is driven by single diesel, electronic control, easily operation. It's a better way to install residential and commercial lawns -- hydroseeder. It is especially suitable for outdoor conditions, applicable to all kinds of rock slope, hard soil, poor soil, acidic soil, arid zones, clay soil and coastal dam etc.

Product parameter:



Model

GHS8380T

Mixing tank

Geometric volume

8000L

Working volume

7600-7800L

Mixing mode

Hydraulic   infinitely variable, blades mixing and circular jet mixing

Power system

Power

83KW

Diesel engine

4RMAZG

Rotate speed

2400rpm

Pump system

Output

90m3/h

Exit pressure

1.05Mpa

Materials rate

60%

Max.  aggregate

25mm

Max. horizontal conveying distance

100m

Max.vertical conveying distance

50m

Other parameter

Dimension

5000*2100*2600mm

types of nozzles

fan60°,fan90°

spraying area

3000m2/tank

Spraying material(for slope greening):



Spraying material mixture is composed of grass seeds, grass fiber, peat, water retention agent, adhesives, fertilizers, local soil and water. Grass seeds are selected according to local climatic conditions, grass fibers contain straw and bellflower by crushing, water retention agent commonly contain synthetic polymers (acrylic acid / propylene acrylamide polymer). Adhesive usually contains cellulose or glue solution, fertilizer generally uses NPK. Mix the mixture should refer to the design specifications or determined through field test.



1) Common clay (40 to 50%), choose clay with a strong bond adhesion, and a large amount of sand, good permeability after mixed with other improved materials. You’d better make use of local loam or mellow as local soil material.

2) Organic nutrient soil (25-35%), mainly containing organic matter such as peat and loam absorption that absorb long-term organic nutrients. Peat organic component content is larger than 80%; N, P, K content: not less than 5%; PH value: 4.5 to 6.0.

3) Soil improvement material (15 to 25%), mainly wood, plant fiber, poultry manure, extruded material and other supporting materials. The purpose is to increase the ability to keep the water and permeability of soil fertility, increase the buffering capacity of the soil, and microbial activity and nutrient supply, and thus make root growth, reproduction and interludes easy.

4) Multi-content fertilizer (0.6 to 0.8%), mainly ordinary fertilizer and Fertilizer with long-term manure, and not easy to loss. General fertility effect can last up to 2 to 3 years

5) Water retention agent (0.25%): Efficient soil moisture, water decomposition that particle expanded body absorb and release enables soil keep water, and make it available for growing plants to absorb repeatedly.

For Spraying Machine with 8m3 tank capacity, spraying ingredients are: first add 3m3 water( basically up to the position of stir axis line), and then add 5m3 local soil materials, wood fiber of 12 packs, water retention agent and adhesives according to ratio of 3: 1.

Payment Terms︰TT / LC / DP / DA
Packing︰hydroseeder shipped by a 20" container.
Lead Time︰7-15days
Standards Certificate︰ISO CE

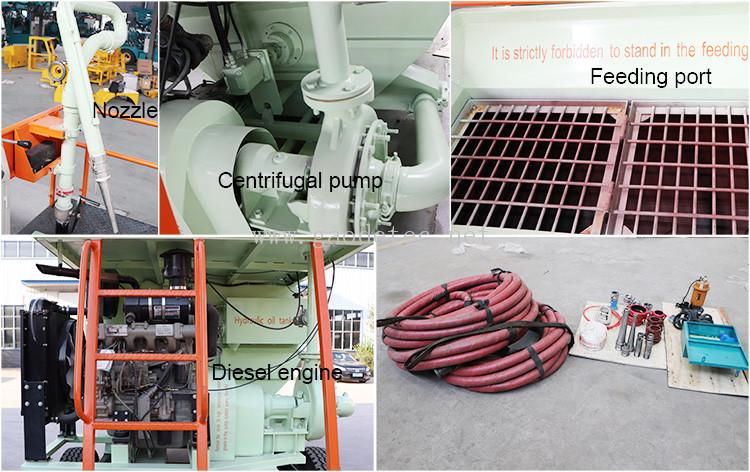

Product Image

China landscaping hydroseeder
China landscaping hydroseeder

China landscaping hydroseeder
China landscaping hydroseeder

Grass Seed Spraying Machine Hydroseeding
Grass Seed Spraying Machine Hydroseeding

Grass Seed Spraying Machine Hydroseeding
Grass Seed Spraying Machine Hydroseeding

Grass Seed Spraying Machine Hydroseeding
Grass Seed Spraying Machine Hydroseeding

Grass Seed Spraying Machine Hydroseeding
Grass Seed Spraying Machine Hydroseeding

Grass Seed Spraying Machine Hydroseeding
Grass Seed Spraying Machine Hydroseeding

Grass Seed Spraying Machine Hydroseeding
Grass Seed Spraying Machine Hydroseeding
