Hot sale Chinese CE hydroseeder spray grass seed

hydroseeder spray grass seed
  • hydroseeder spray grass seed
  • hydroseeder spray grass seed
  • Chinese CE hydroseeder spray grass seed
  • hydroseeder spray grass seed
  • hydroseeder spray grass seed
  • hydroseeder spray grass seed
  • CE hydroseeder spray grass seed
  • CE hydroseeder spray grass seed
  • Chinese CE hydroseeder spray grass seed
  • hydroseeder spray grass seed
  • hydroseeder spray grass seed
Model No.︰PB series
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 15000 / pc
Minimum Order︰1 pc
Share on:

 Total 8 Related Items
12345Next

Product Description

Hot sale Chinese CE hydroseeder spray grass seed

Technical Data of hydroseeder spray grass seed:

Model

PB4083

PB6083

PB8083

Diese engine

LRC4108T

LR4A3Z

LR4A3Z

Power

63kw

83kw

83kw

Tank capacity

4m3

6m3

8m3

Output

1350L/min

Output pressure

8kgf/cm2

Max.Solid Content

Volume ratio 30%, weight ratio 60%

Max.aggregate

20mm

Mixing mode

Hydraulic infinitely variable, blades mixing and circular jet mixing

Rotating speed of mixer shaft

0-110rpm

Max. horizontal conveying distance

38-45m with gun

100-120m with hose

Max. vertical conveying distance

40m with gun

80m with hose

Spraying guns type

Fixed standing gun and pipe gun

Height of fence

800mm

Net weight

2650kg

3200kg

Dimension

4600*2200*2400mm

5500*2200*2500mm

Application of hydroseeder spray grass seed:

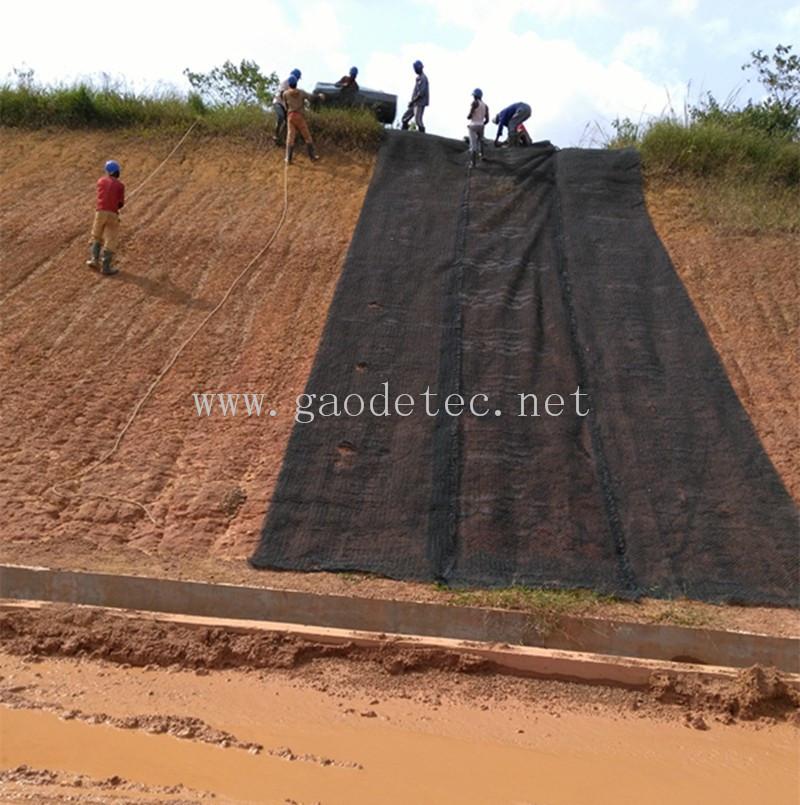

     1. spray seeding is more and more applied in road greening. The application of seeding spraying technology in vegetation restoration and slope protection project.

    2. PB series artificial soil spraying seeder involves in planting permanent vegetation, spraying slurry, slope protection, grassing and erosion prevention.

    3. Soil spraying seeder driven by single diesel, electronic control, easy operation, especially suitable for outdoor conditions, applicable to all kinds of rock slope, hard soil, poor soil, acidic soil, arid zones, clay soil and coastal dam.etc

Feature of hydroseeder spray grass seed:

    1. The material of main structure is made of high quality structural steel. No matter how worse the conditions are, it ensure seeder sturdy and solid. And it has reasonable, generous appearance. Painted with imported painting to guarantee of three-year no fading.

    2. Advanced technology, it even works for mud materials which have poor mobility, no blocking, and no stopping, well adaptation of various materials, big output pressure.

    3. Two mixing models, blades mixing and circular spray, are powerful enough to ensure the spraying mixture in the planting process is in fully suspended and fully mixed stated, evenly emitting the mixture of raw materials at one time.

    4.It has strong power, the maximum head can be above 60m, and be equipped with many types of spraying guns, which extend the maximum operation scope from 200m to 300m; fan-shaped spray nozzle or mist spraying is more suitable for colse-distance planting to meet various requirements.

    5.This machine has wide usage, not only can be applied in spraying planting for rice, grass, tress, flowers, seeds, and other crops, but also in irrigation, fertilize, pesticide spraying and other daily care, soil improvement work. This machine can also mix different materials like seeds, fertilizer, soil conditioner, seed adhesives, moisturizer, straw, fiber covering materials, yellow soil, red soil, sandy soil and clay, evenly emitting slurry materials with big proportion, high and super concentration

     6. Our soil spraying seeder also can use as a hydroseeder.



Spraying material(for slope greening):

Spraying material mixture is composed of grass seeds, grass fiber, peat, water retention agent, adhesives, fertilizers, local soil and water. Grass seeds are selected according to local climatic conditions, grass fibers contain straw and bellflower by crushing, water retention agent commonly contain synthetic polymers (acrylic acid / propylene acrylamide polymer). Adhesive usually contains cellulose or glue solution, fertilizer generally uses NPK. Mix the mixture should refer to the design specifications or determined through field test.



1) Common clay (40 to 50%), choose clay with a strong bond adhesion, and a large amount of sand, good permeability after mixed with other improved materials. You’d better make use of local loam or mellow as local soil material.

2) Organic nutrient soil (25-35%), mainly containing organic matter such as peat and loam absorption that absorb long-term organic nutrients. Peat organic component content is larger than 80%; N, P, K content: not less than 5%; PH value: 4.5 to 6.0.

3) Soil improvement material (15 to 25%), mainly wood, plant fiber, poultry manure, extruded material and other supporting materials. The purpose is to increase the ability to keep the water and permeability of soil fertility, increase the buffering capacity of the soil, and microbial activity and nutrient supply, and thus make root growth, reproduction and interludes easy.

4) Multi-content fertilizer (0.6 to 0.8%), mainly ordinary fertilizer and Fertilizer with long-term manure, and not easy to loss. General fertility effect can last up to 2 to 3 years

5) Water retention agent (0.25%): Efficient soil moisture, water decomposition that particle expanded body absorb and release enables soil keep water, and make it available for growing plants to absorb repeatedly.

For Spraying Machine with 8m3 tank capacity, spraying ingredients are: first add 3m3 water( basically up to the position of stir axis line), and then add 5m3 local soil materials, wood fiber of 12 packs, water retention agent and adhesives according to ratio of 3: 1.

Contact Supplier:

Our hydroseeder is driven by a diesel engine, electronic control, and easy operation. And it is especially suitable for outdoor conditions, applicable to all kinds of rock slope, hard soil, poor soil, acidic soil, arid zones, clay soil and coastal dam etc.
In order to confirm which type hydroseeder machine suitable for your job, could you please help us to confirm the following information:


1. The project you do: for slope greening or playground greening or other?
2. The total working area.
3. The mixing material do you need? 6000L, 8000L or more bigger or more samller?
4. could you please offer the slope photo which you will spraying to us for reference, and what's the height of the slope?
suitable type and the best price will be offered to you once get your confirmation. thank you.

Payment Terms︰TT / LC / DP / DA
Packing︰hydroseeder spray grass seed: container or other
Lead Time︰7-15days
Standards Certificate︰ISO CE
Product Image

hydroseeder spray grass seed
hydroseeder spray grass seed

hydroseeder spray grass seed
hydroseeder spray grass seed

Chinese CE hydroseeder spray grass seed
Chinese CE hydroseeder spray grass seed

hydroseeder spray grass seed
hydroseeder spray grass seed

hydroseeder spray grass seed
hydroseeder spray grass seed

hydroseeder spray grass seed
hydroseeder spray grass seed

CE hydroseeder spray grass seed
CE hydroseeder spray grass seed

CE hydroseeder spray grass seed
CE hydroseeder spray grass seed

Chinese CE hydroseeder spray grass seed
Chinese CE hydroseeder spray grass seed

hydroseeder spray grass seed
hydroseeder spray grass seed

hydroseeder spray grass seed
hydroseeder spray grass seed
