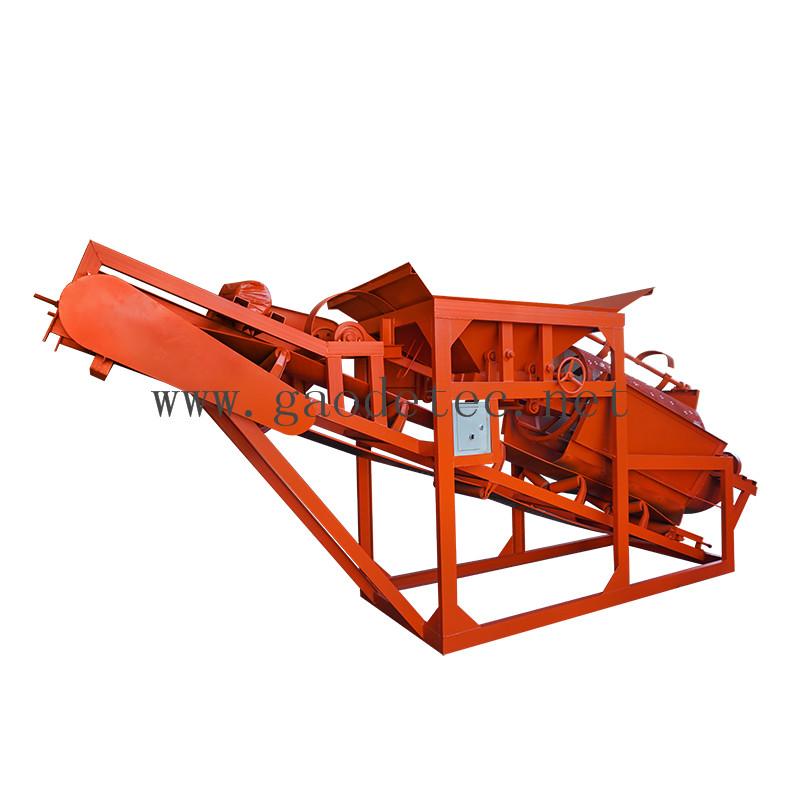

Widely used in coal yard electric sand grading machine manufacturer
Product description:
Roller coal, coke and sand grading machine is widely used in power plants, coking plants, building materials, metallurgy, chemical, mining and other industries, roller coal,coke and sand grading machine improve the output and reliability of screening system. Our roller coal,coke and sand grading machine is suitable for screening different materials and coal, coke, lime, etc.wet material which is easy to jam. The mesh size can be customized according to your requriement, usually our mesh size is 1mm-50mm.
Feature of roller coal,coke and sand grading machine:
1. Adopt rolling conveyor, small friction, light wear, not easy to jam.
2. Smooth running, no vibration, low noise.
3. The internal screen parts adopt seperate design, simple structure, quick replacement and easy maintenance.
4. The roller body adopt sealed structure, no dust, no pollution.
5. Safe and reliable operation, the use of slow transmission, high transmission efficiency, small equipped with power, low energy consumption, energy-saving effect.
6. Can supply different screen material, mesh size, high efficiency, long life
Product parameter:
|
Model
|
GSE-16E
|
GSE-20E
|
GSE-25E
|
GSE-30E
|
GSE-50E
|
|
Hopper(L*W)
|
1600*1000mm
|
2000*1100mm
|
2500*1150mm
|
3000*1450mm
|
3800*1700mm
|
|
Screen
|
φ60*1000mm
|
φ60*1500mm
|
φ60*1500mm
|
2000*800mm
|
2500*800mm
|
|
Mesh size
|
1-50mm or more(customized)
|
1-50mm or more(customized)
|
1-50mm or more(customized)
|
1-50mm or more(customized)
|
1-50mm or more(customized)
|
|
Engine
|
electric motor
|
electric motor
|
electric motor
|
Electric motor
|
Electric motor
|
|
Motor power
|
1.5kw+1.5kw+0.37kw
|
2.2kw+2.2kw+0.37kw
|
5.5kw+0.37kw
|
7.5kw
|
11kw
|
|
width of the conveyer belt
|
550mm
|
550mm
|
550mm
|
800mm
|
1000mm
|
|
Output
|
20m3/h
|
25m3/h
|
30m3/h
|
60-80m3/h
|
100-120m3/h
|
|
Overall dimension
|
3300*1000
*2150mm
|
4500*1100
*2200mm
|
6000*1150
*2600mm
|
7500*1450
*2650mm
|
7500*1450
*2650mm
|
We cancustomize as per your requirement. Please tell us your requirements and we will provide you with the corresponding product parameters and quotations. If you have any questions, please contact us.
