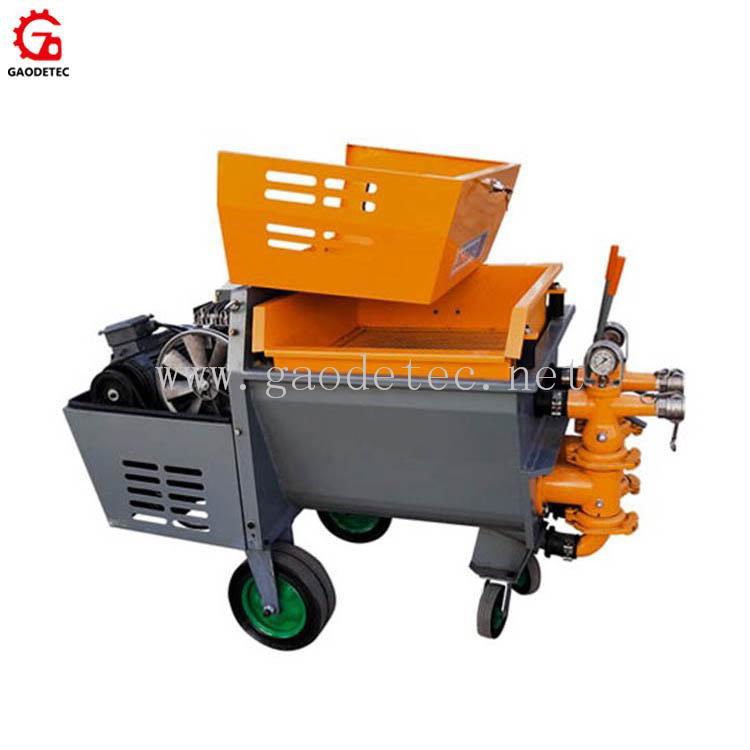

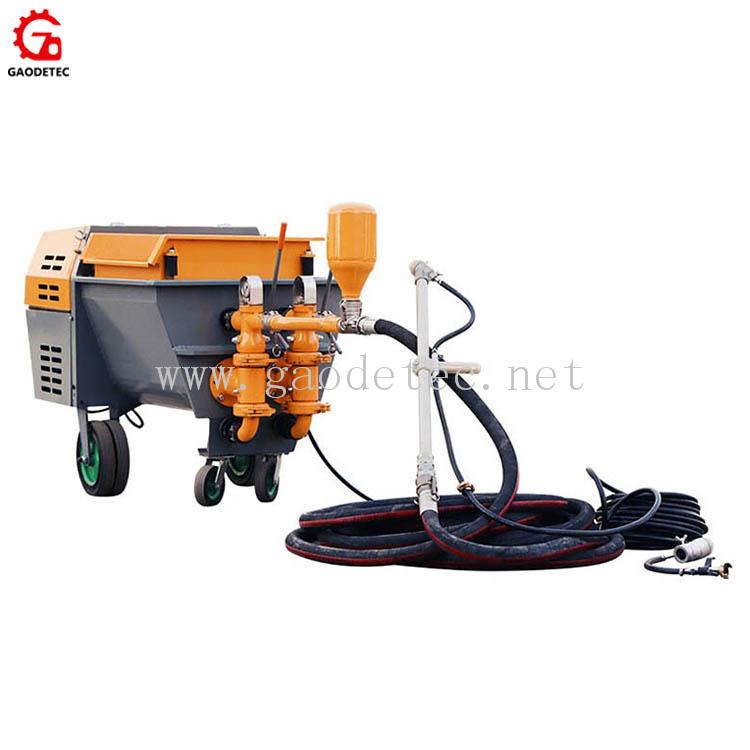

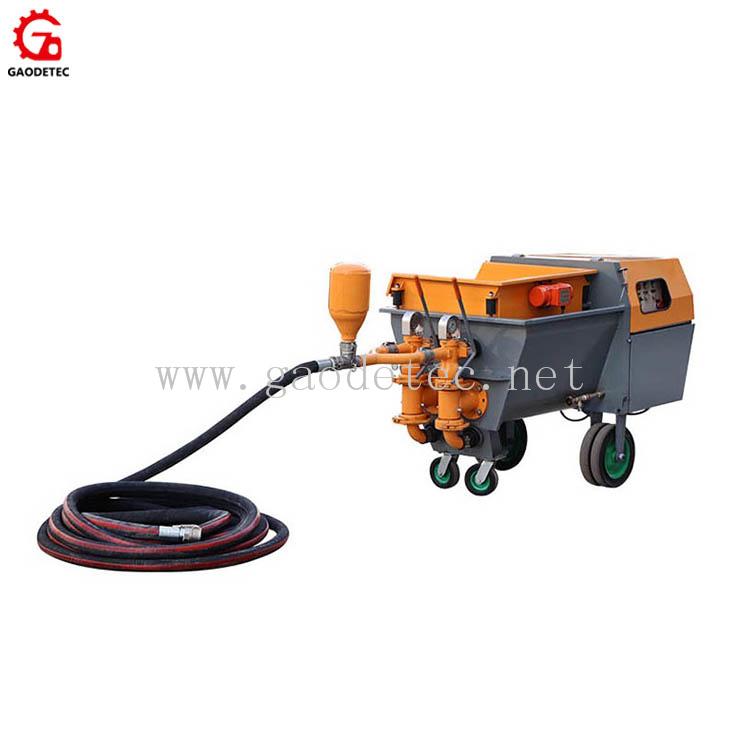

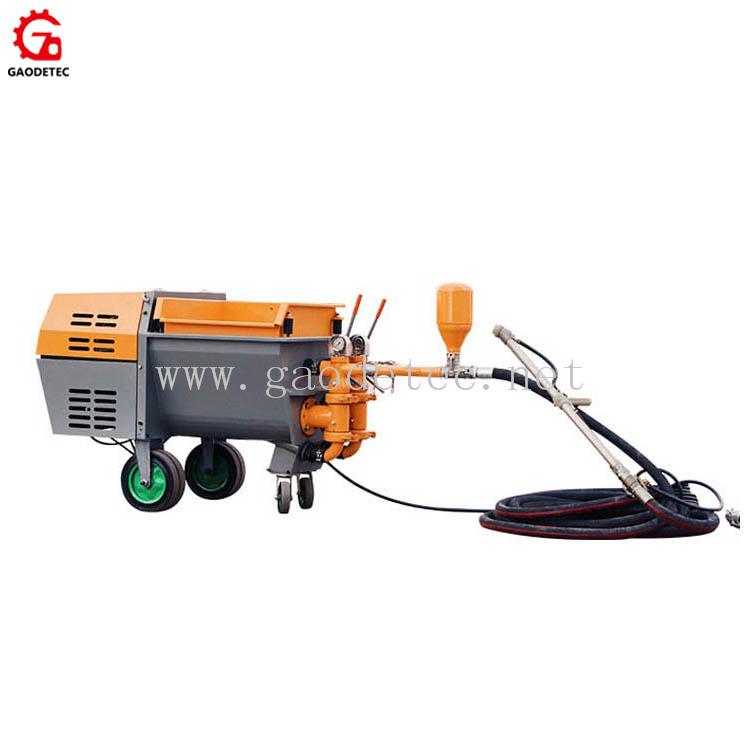

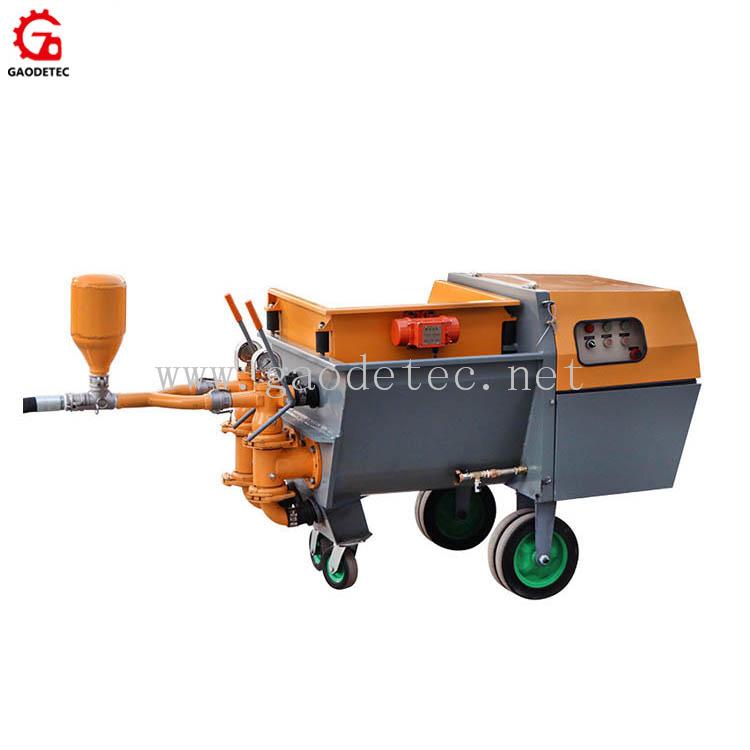

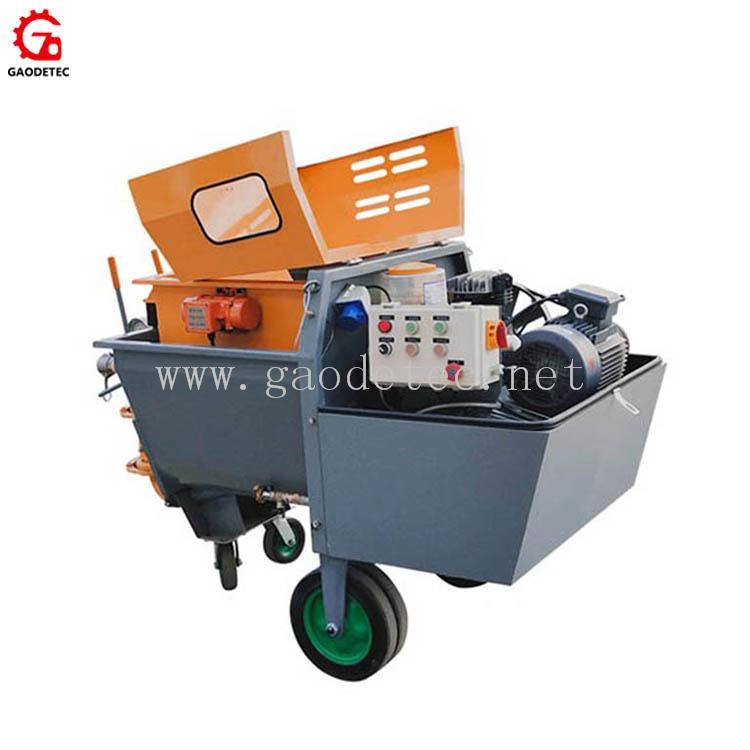

Double piston mortar spraying machine factory price
Product description:

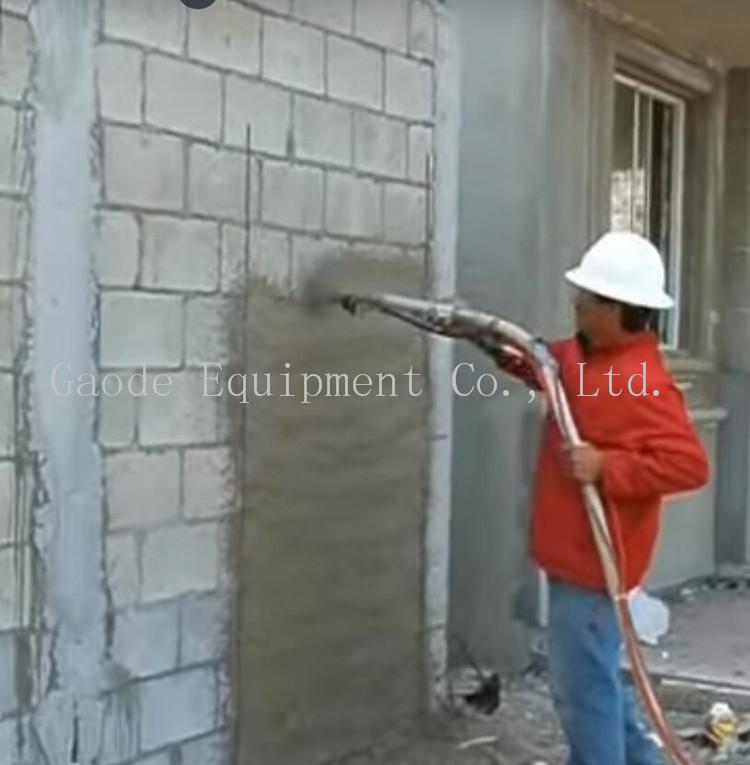

GMP70/30, the double piston pump can handle aggregates with a particle size up to a maximum of 5 mm, ensuring high efficiency, low maintenance costs and low energy consumption. Thanks to pump unique design inspiration is equipped with 2 pistons. Machine guarantees uniform and continuous spray pattern.
Product parameter:
|
Model
|
GMP70/30
|
|
Electric motor
|
4kw
|
|
Output
|
70L/min
|
|
Max. aggregate size
|
5mm
|
|
Max. working pressure
|
30bar
|
|
Compressor
|
200L/min
|
|
Hopper capacity
|
0.28m3
|
|
Convey distance
|
90m
|
|
Delivery height
|
28m
|
|
Dimension
|
200x86x88cm
|
|
Weight
|
360kgs
|
Feature:

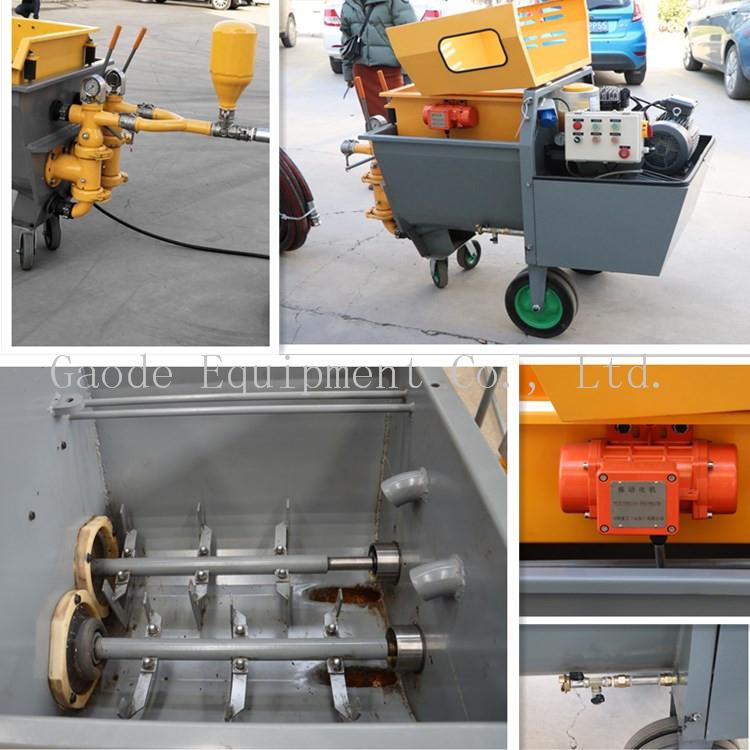

1.Double cylinder & double-acting, ball valve, quick clamp connection, operation and cleaning conveniently. Paddles in hopper with Reciprocating movement, prevent hopper materials deposition .
2.The screen adopts rubber spring with cone bolt installation, convenient disassembly;
3.Equipped with double special mortar nozzles, making spraying operation more smoothly, continuously and reducing the rebound effectively.
4.Machine light, 1-2 person can easily move the machine.

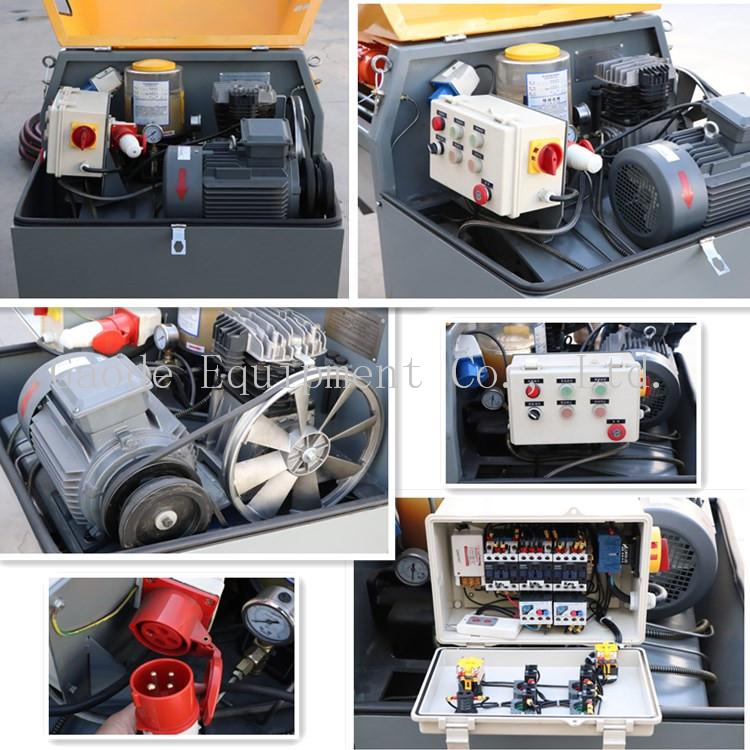

5.Independent electric control box and remote control system, machine operation is safer. Waterproof vibrator.
6.Quick installation and rubber piston long work life and low maintenance cost.
Contact Supplier:
Many thanks for visiting our web, we can supply mortar pump for you. Before we send quotation, please let me know the following question:
1. what is output of mortar pump do you want?
2. what is max. aggregate?
3. what is max. vertical and horizontal conveying distance?
4. which engine do you prefer? Electric motor or diesel engine. If electric motor, please let me know your local voltage.
We can customize according to your requirements, just tell us the application of the product or the parameter information you need.
