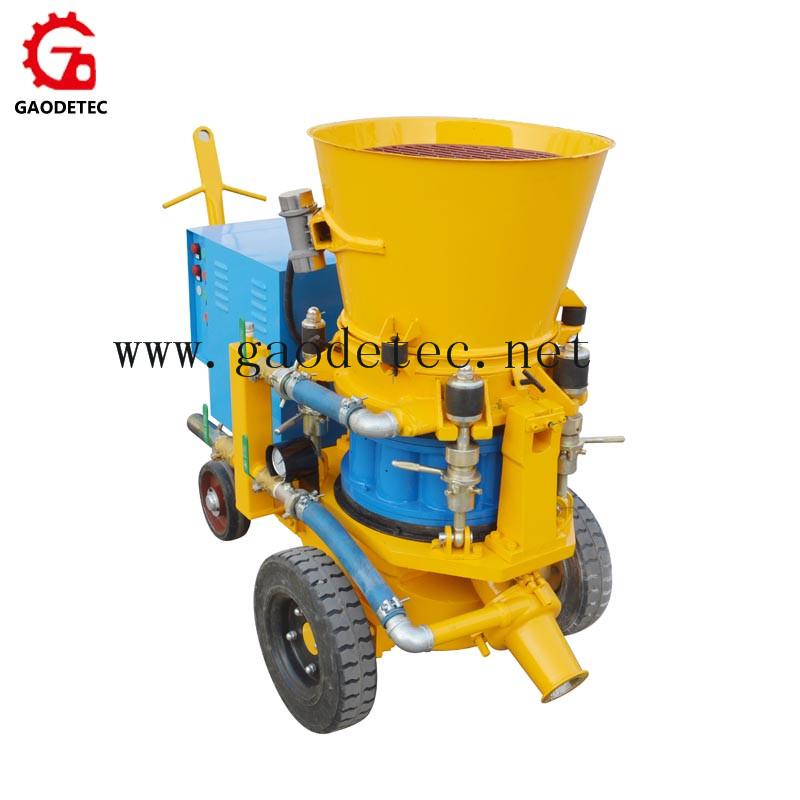

5m3/h Dry Shotcrete Concrete Spraying Refractory Gunning Machine
Please copy the link to the product website for more products and information
Our website: www.gaodetec.net
Description:
GZ-5ER is specifically designed for Refractory Dry-mix shotcrete applications, as well as for concrete shotcrete application.
With this GZ-5ER, you can get low dust and high performance spraying flow in nozzle.
GZ-5ER is straight chamber rotor type refractory gunning machine.
Technology Sheet:
|
Specification (with Electric motor drive):
|
|
Rated output
|
2-5m3 /h(2-10 ton/h)
|
|
Max. Horizontal conveying distance
|
100m
|
|
Max. Aggregate size
|
Φ15 mm
|
|
Conveying hose inner diameter
|
51mm
|
|
Operating air pressure
|
0.2-0.4MPa(29-58PSI)
|
|
Air consumption
|
8~9m3/min(285-325CFM)
|
|
Motor power
|
5.5kW
|
|
Voltage
|
3 phase,380V,50Hz
|
|
Material charging height
|
1.1m
|
|
Rotor speed
|
0~13.2r/min
|
|
Overall dimension(L×W×H)
|
1.35×0.75×1.2m
|
|
Weight
|
720kg
|

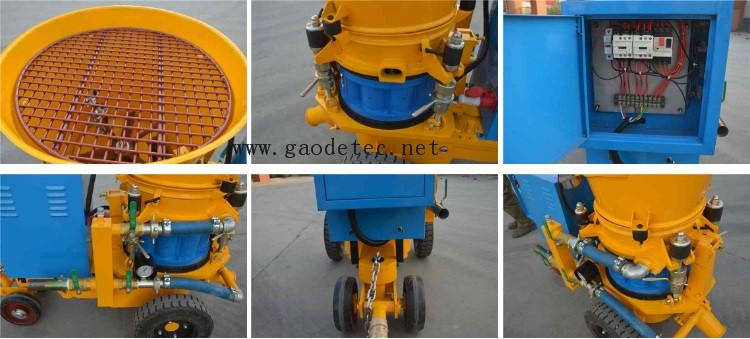

Product Feature:
1. Variable output with variable-frequency drive
2. High hopper with vibrator
3. Collecting dust bag
4. Cleaning dust gun
5. Electric vibrator
6. Protect frame
7. Heavy-duty solid wheels
8. Coupling and clamp
9. Light weight pre-dampening nozzle
10.Blast rubber hose
11.High pressure water pump
Contact Supplier:
Many thanks for visiting our web, we can supply refractory shotcrete machine for you. Before we send quotation, please let me know the following question:
1. What's the project you will use the machine do ?
2. What is the output do you need, 3m3/h, 5m3/h ?
3. Drive type mode? Do you want electric or air motor ?
4. Do you have any other special requirments for this machine ?
We can customize according to your requirements, just tell us the application of the product or the parameter information you need.
