foam cement clc brick making machine cellular foam plate making machine

foam plate making machine
  • foam plate making machine
  • foam concrete machine
  • clc brick making machine
  • foam plate making machine
  • foam concrete machine
  • clc brick making machine
Model No.︰GF15
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰-
Minimum Order︰1 pc
Share on:

 Total 40 Related Items
12345Next

Product Description

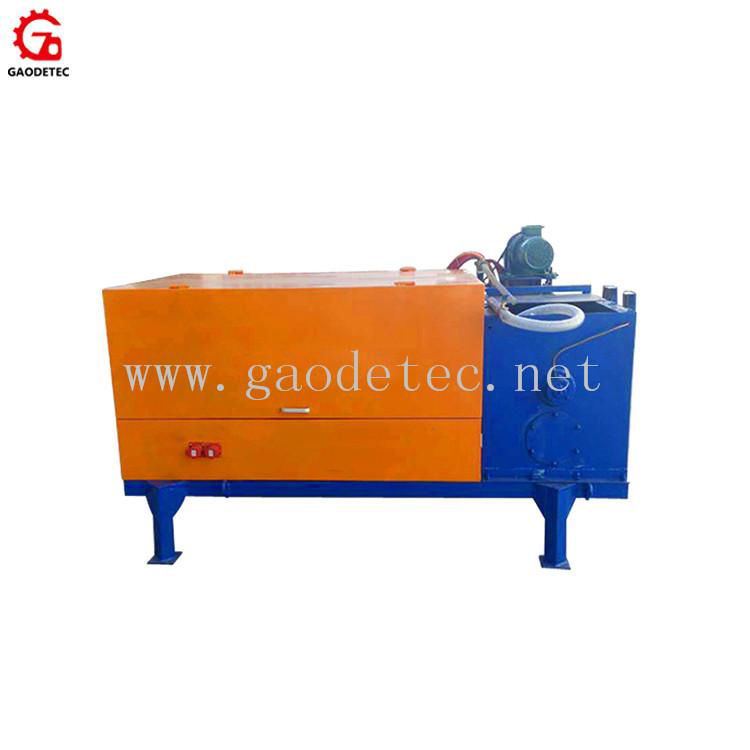

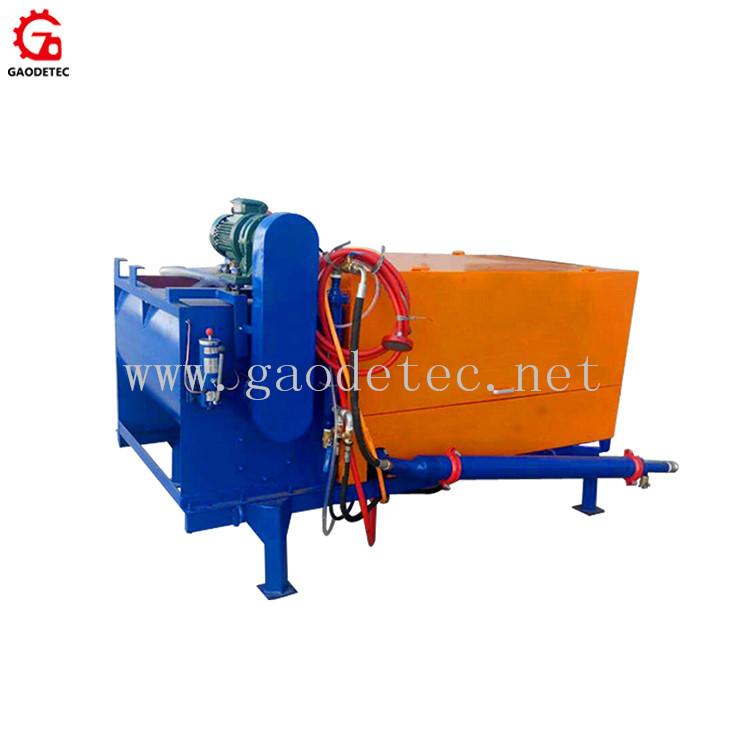

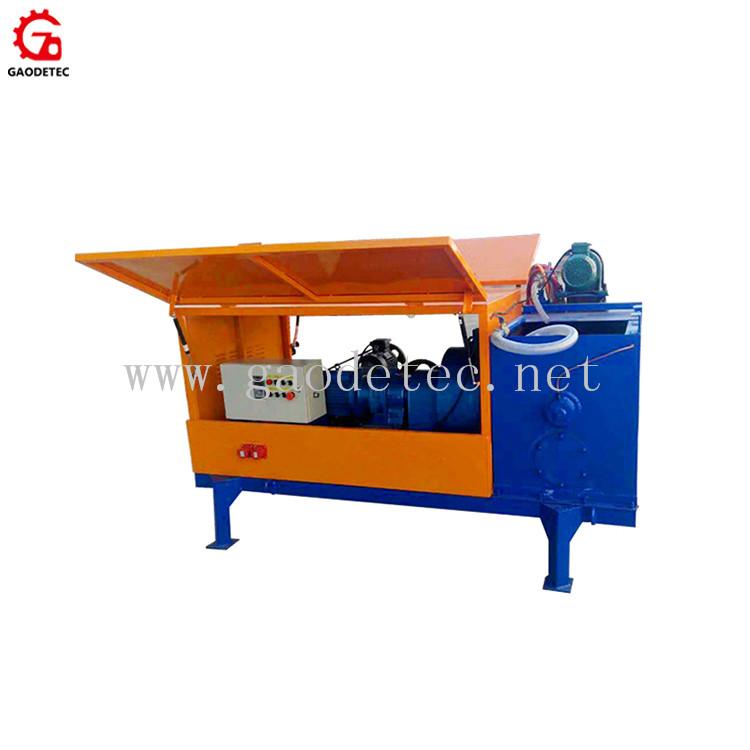

GF15 intergrated cellular foam plate making machine is a middle scale foam concrete machine.The mixer and pump system are designed to a whole body so that it become smaller and easy to carry and transport.



Please copy the link to the product website for more products and information

Our website: www.gaodetec.net

There is an automatic foaming system inside of this machine, so you need no foam generator extra. This machine can draw water and foam agent automatically and then mix them in a set proportion, so it is very labor saving and easy operation. We adopt hose pump to transfer the foam concrete, which can minimize the damage to bubble.

Name

unit

 Parameter

Foam cement throughput

m³/h

15

Max convey height

m

100

Max convey level

m

500

Motor power of mixer

kw

1.5

Motor power of pump

kw

4

Volume of mixer tank

0.4

Weight

 kg

1400

Dimension

mm

1850*1000*1400

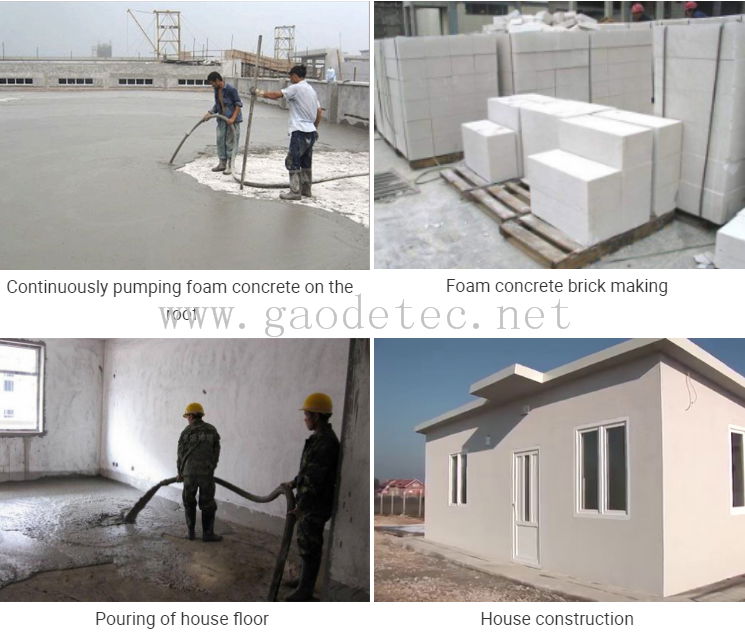

Appliacation:

1. Cellar, basement and arch filling

2. Sewers and Drains filling

3. Horizontal floor heightening

4. Water tank and fuel tank building

5. Platform filling and mending

6. Garden and rockeries

7. Foam concrete block

8. Foamed concrete precasting ,hollow wallboard casting

9. External wall thermal insulation

10. Thermal insulation roofing

11. Thermal flooring

12. Upstanding beam foundation ditches filling

13. Sound insulation and fire protection walls

14. Playground and track construction

15. Sound insulation layer, tunnel lining filling



Contact Supplier:

Before we send quotation, please let me know the following question:


1. What project you will do? CLC , walls, floor, roof, or other?
2. How much capacity do you need?  We have 5m3/h, 10m3/h, 20m3/h, 30m3/h, 40m3/h for your choice.
3 .What materials you use to make foam concrete? Cement, sand, foam agent, water?
4. How much density of the foam concrete you want to make? We always make 400-1600kg/m3.


We have now developed full series of products with different of models. Max. output from 5-40m3 /h. Power , output, pressure and voltage are available options for customization. Of course, we also provide foam agent and foam concrete pump. I sincerely want to do business with you. If you have any questions, please contact us.



Payment Terms︰TT / LC / DP / DA
Packing︰Wooden packing
Lead Time︰7-10days
Standards Certificate︰ISO CE
Product Image

foam plate making machine
foam plate making machine

foam concrete machine
foam concrete machine

clc brick making machine
clc brick making machine

foam plate making machine
foam plate making machine

foam concrete machine
foam concrete machine

clc brick making machine
clc brick making machine
