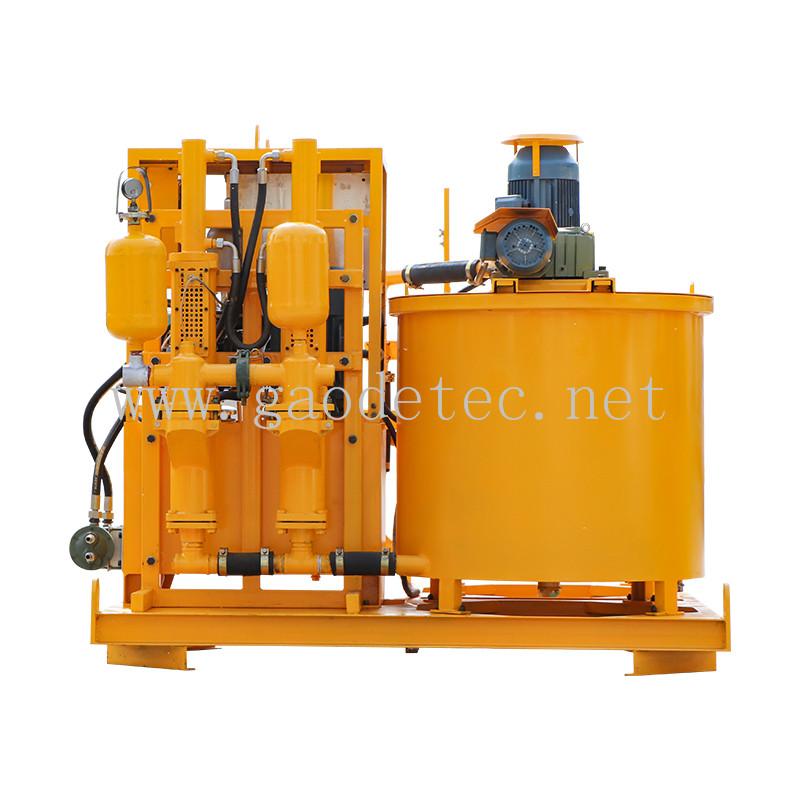

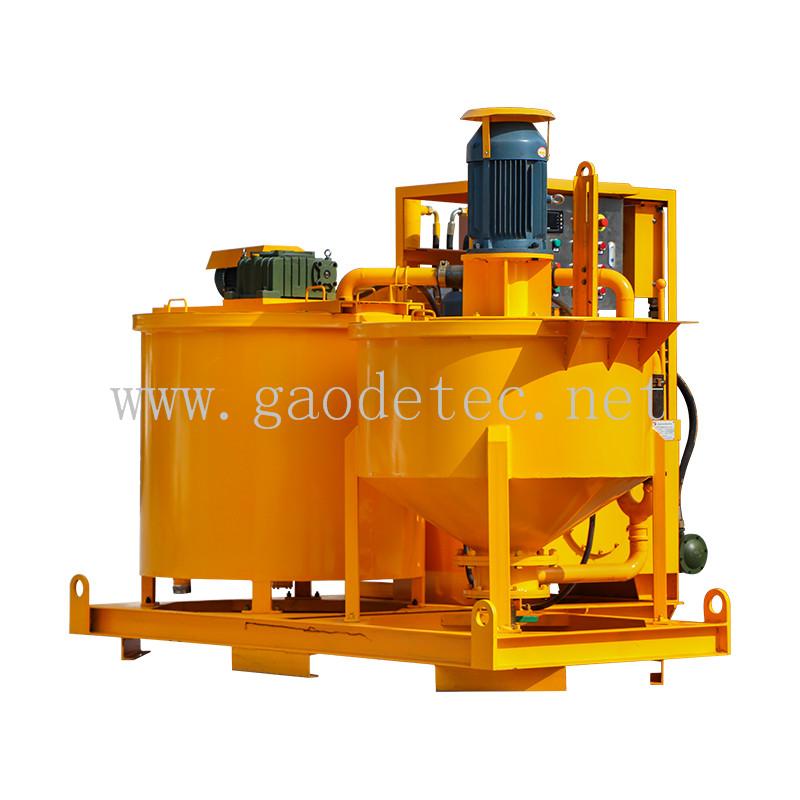

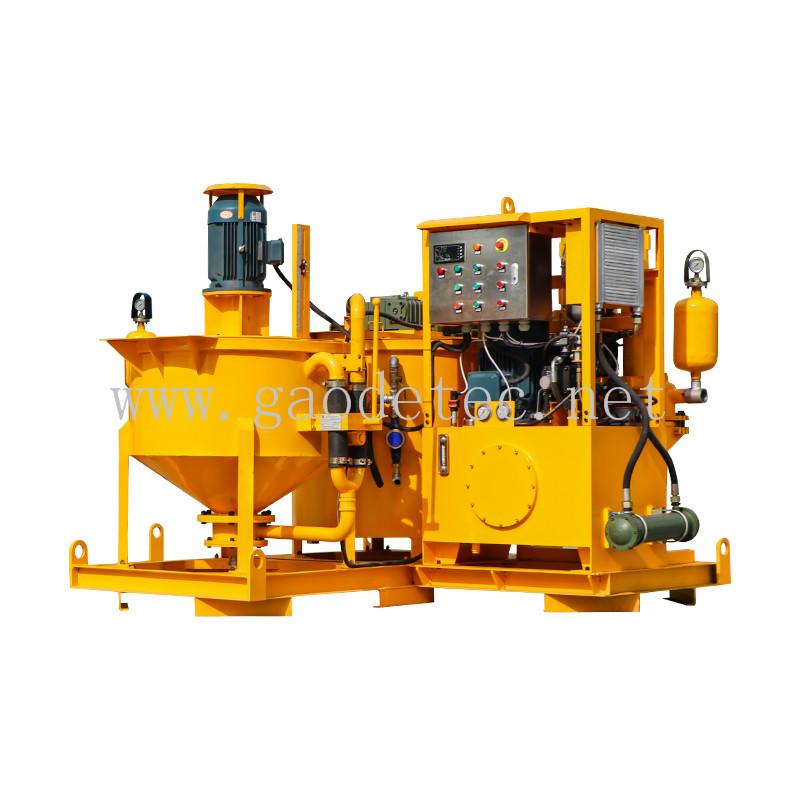

GGP400/700/80DPL-E electric grouting mixer pump grout station
1. GGP400/700/80DPL-E grout station is a combination of mixer, agitator and grout pump in one base frame. It is mainly used to be made bentonite slurry, cement slurry, etc., in the application highway, railway, hydropower, construction, mining and other ground and underground construction.
2. GGP400/700/80DPL-E grout station, mixer capacity is 400L, agitator capacity is 700L, pump output is 80L/min. If the output of this product is not satisfactory, we can also customize it according to your needs.
3. High speed vortex mixer ensures mix quickly and evenly. Water, cement or bentonite is quickly mixed into homogeneous slurry. Then the mixed slurry was delivered to the agitator. Grout pump injects from the mixing drum (storage tank). This ensures a continuous mixing and grouting operations.
What's more, the double-plunger pump together with the pressure-holding system is used, so that the pump automatically stops and maintains the very little pressure impulse (1-4bar with 50bar grouting pressure) to ensure that the grouting hole is completely filled. The grouting plant is hydraulic drive with electric motor. Grouting pressure and displacement is adjustable. Compact size and it is easy to operate. It also takes up a small space.
Please copy the link to the product website for more products and information
Our website: www.gaodetec.net
|
Description
|
Data
|
|
Grout Station model
|
GGP400/700/80DPL-E
|
|
Dimensions
|
2350*2100*1830mm
|
|
Weight
|
1530kg
|
|
Mixer
|
|
Capacity
|
400L
|
|
Recycling discharge
|
1100L/min
|
|
Suitable water/cement ratio
|
≥0.5:1
|
|
Motor power
|
7.5Kw
|
|
Rated Rev.
|
1450rpm
|
|
Agitator
|
|
Capacity
|
700L
|
|
Motor model
|
1.5Kw
|
|
Rated Rev.
|
36rpm
|
|
Pump(vertical compact hydraulic grout pump)
|
|
Output/pressure
|
Low pressure: 0-80L/min, 0-25bar
High pressure: 0-58L/min, 0-40bar
|
|
Power
|
11Kw
|
|
We could also customize according to your demands.
|
|
Feature:
1. High-speed colloidal grout mixer
2. With the liquid level of the mixer tank

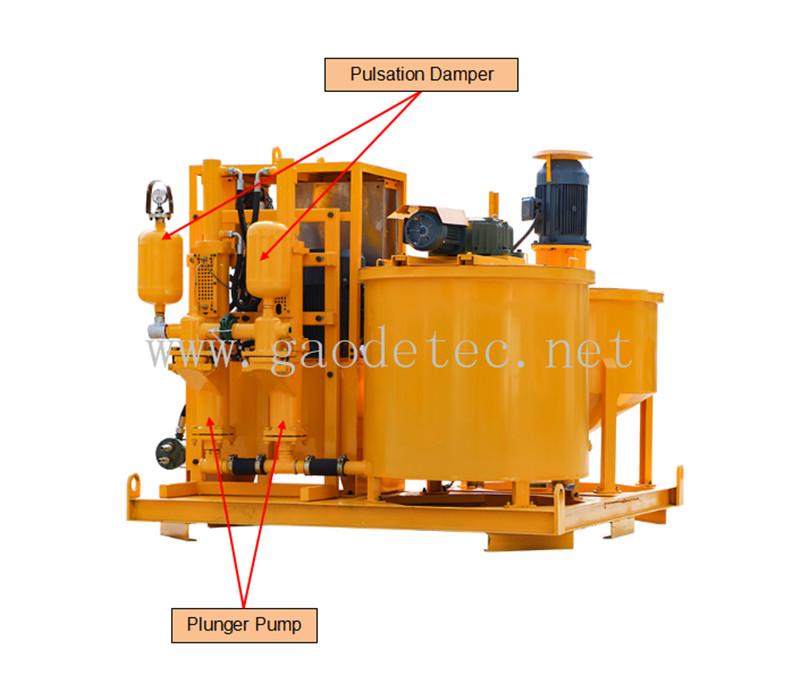

3. Double plunger pump
4. Vertical type pump with compact size
5. Hydraulic drive (safely releasing pressure when pumping block)
6. Hydraulic system with high temperature warning and protection system
7. Pressure holding system
8. Low flow pressure surge system
9. Air cooler and water cooler (suitable for working in tropical and sub-hot areas)
10. Up to 5mm particle size
Application:
It is mainly used in highway, railway, hydropower, construction, mining and other ground and underground construction.
Ø Civil engineering - dam, tunnel, subway, mine, soil nailing wall, curtain, anchor, cable trench and anchor grouting
Ø Building structure - building and bridge repair, foundation reinforcement, slope support, soil compaction, terrg grouting
Ø Engineering - underwater foundation, offshore platform, coast foundation grouting reinforcement
Ø Mine application - roadway reinforcement, backfill, waterproof grouting
Ø Acted as a grouting plant in the Pipe Jacking Machine
Contact Supplier:
Many thanks for visiting our web, we can supply grout station for you. Before we send quotation, please let me know the following question:
1. How about the flow and pressure of the pump you want, please?
2. How about the water and cement ratio, does any sand in?
3. About the power: electric (voltage and frequency) or diesel?
Please tell us your requirements and we will provide you with the corresponding product parameters and quotations. If you have any questions, please contact us.
