China manufacturer cement grout mixer and agitator grouting pump plant for backf

cement grout mixer
  • cement grout mixer
  • grouting pump plant
  • grout equipment
  • grouting pump plant
  • cement grout mixer
  • cement grout mixer
Model No.︰GGP500/2000/165
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰-
Minimum Order︰1 pc
Share on:

 Total 64 Related Items
Prev12345Next

Product Description

GGP500/2000/165H-E Grout Station is a combination of the mixer, agitator and grouting pump in one plant, mainly used to mix cement, bentonite slurry for grout and Backfill Grout Injection in ground/underground construction or TBM tunnel construction, such as highways, railways, water and electricity, construction, mining etc. This station is equipped the automatically batching weight system and PLC control system to automate operations.



Please copy the link to the product website for more products and information

Our website: www.gaodetec.net

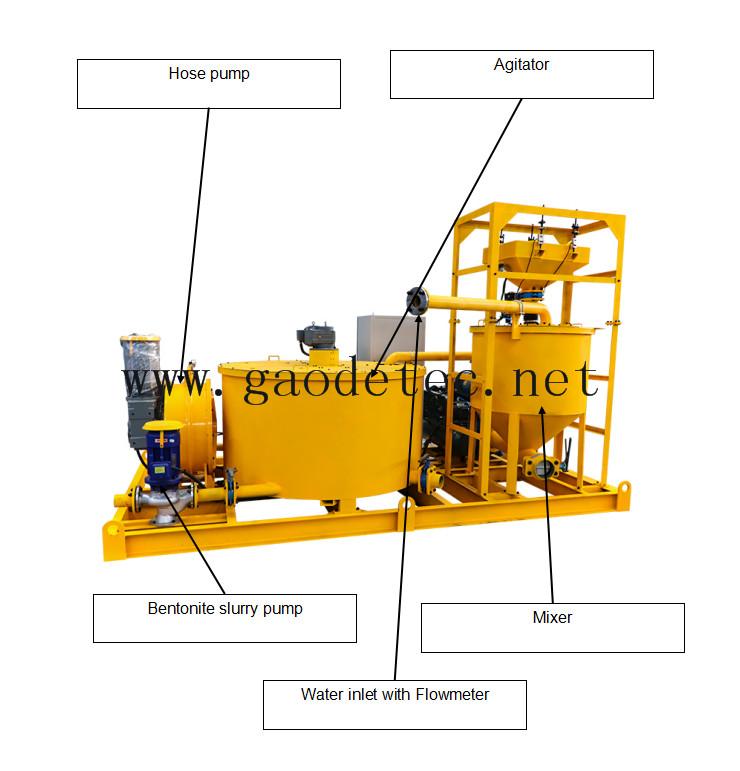

High speed vortex mixer ensures mix quickly and evenly. Water, cement or bentonite is quickly mixed into a homogeneous slurry. Then the mixed slurry was delivered to the agitator. Grout pump injects from the mixing drum (storage tank). This ensures a continuous mixing and grouting operations. The grouting plant is hydraulic drive with electric motor. Grouting pressure and displacement is adjustable. Compact size and it is easy to operate. It also takes up a small space.

Name

Data

Type

GGP500/2000/165H-E

Weighting

Sensor

S-type tension pressure sensor

Load

200Kg

Output Signal

Current signal

Vibration Motor

24V, 4KN, 0.37Kw

Mixer

Volume

500L

Slurry Pump Power

11Kw

Output

80m3/h

Agitator

Volume

2000L

Geared Motor Power

3Kw

Speed

45rpm

Water Pump Output

15m3/h

Water Pump Power

5.5Kw

Hose pump

Output

165L/min

Pressure

1.0MPa

Power

 7.5Kw

Air compressor

2.2Kw

Power supply

220V(380V, 415V Multiple choices)

Dimension

4100×2100×2500mm

Weight

3200kg

We could also customize according to your demands.



Cement grouting station feature:

1. Automatically batching and automatically mixing system.

2. High turbulence mixing.

3. PLC control system, operation mode can be operated automatically and manually.

4. Mixer, agitator, hose pump in one frame base, compact size.

5. Heavy duty industrial hose pump.



Application:

1. Civil engineering - dam, tunnel, subway, mine, soil nailing wall, curtain,      anchor, cable trench and anchor grouting;

2. Building structure - building and bridge repair, foundation reinforcement, slope support, soil compaction, rock grouting;

3. Engineering - underwater foundation, offshore platform, coast foundation grouting reinforcement

4. Mine application - roadway reinforcement, backfill, waterproof grouting.

5. Acted as a grouting plant in the Pipe Jacking Machine.



Contact Supplier:

Many thanks for visiting our web, we can supply grout station for you. Before we send quotation, please let me know the following question:


1. How about the flow and pressure of the pump you want, please?
2. How about the water and cement ratio, does any sand in?
3. About the power: electric (voltage and frequency) or diesel?


Please tell us your requirements and we will provide you with the corresponding product parameters and quotations. If you have any questions, please contact us.





Payment Terms︰TT / LC / DP / DA
Packing︰Wooden packing
Lead Time︰7-10days
Standards Certificate︰ISO CE
Product Image

cement grout mixer
cement grout mixer

grouting pump plant
grouting pump plant

grout equipment
grout equipment

grouting pump plant
grouting pump plant

cement grout mixer
cement grout mixer

cement grout mixer
cement grout mixer
