Advanced technology grout plant for ground construction

  • Advanced technology grout plant for ground construction
  • Advanced technology grout plant for ground construction
  • Advanced technology grout plant for ground construction
  • Advanced technology grout plant for ground construction
  • Advanced technology grout plant for ground construction
  • Advanced technology grout plant for ground construction
  • Advanced technology grout plant for ground construction
Model No.︰GGP
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 15999 / pc
Minimum Order︰1 pc
Share on:

 Total 73 Related Items
Prev12345Next

Product Description

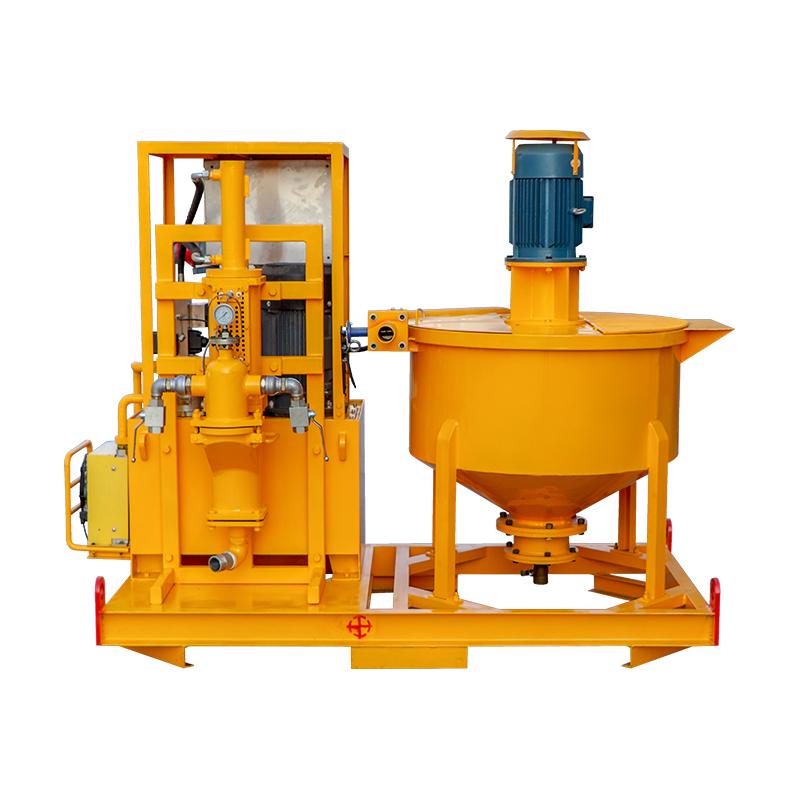

Advanced technology grout plant for ground construction

Product Description

GGP400/80PL-E grout station is a combination of mixer and grout pump in one base frame. It is mainly used to be made bentonite slurry, cement slurry, etc., in the application highway, railway, hydropower, construction, mining and other ground and underground construction.

High speed vortex mixer ensures mix quickly and evenly. Water, cement or bentonite is quickly mixed into a homogeneous slurry. Then the grout pump injects from the mixer drum. This ensures a continuous mixing and grouting operations. The grouting plant is driven by an electric motor. Grouting pressure and displacement is adjustable. Compact size and it is easy to operate. It also takes up a small space.

Main Features

  • Grouting pressure and displacement is adjustable.
  • The function switch between mixer and grout pump is realized by using squeeze switch.
  • The vertically plunger pump is a universal application for grouting.
  • Easy to operate and maintain.
  • Up to 5mm particle size.

Specification

Name

Data

Type

GGP400/80PL-E Grout station

Mixer

Volume(L)

400

Speed(rpm)

1450

Grouting pump

Stroke (mm)

220

Cylinder diameter (mm)

120

Flow(L/min)

80

60

Pressure(MPa)

2.4

5

Power(KW)

15

Dimension

Dimension(mm)

2450×1200×1750

Weight(KG)

980

Payment Terms︰TT / LC / DP / DA
Packing︰standard export packing or as your request
Lead Time︰15
Standards Certificate︰CE.ISO
