CE hydroseeder spray grass seeds hydroseeding equipment price

  • CE hydroseeder spray grass seeds hydroseeding equipment price
  • CE hydroseeder spray grass seeds hydroseeding equipment price
  • CE hydroseeder spray grass seeds hydroseeding equipment price
  • CE hydroseeder spray grass seeds hydroseeding equipment price
  • CE hydroseeder spray grass seeds hydroseeding equipment price
  • CE hydroseeder spray grass seeds hydroseeding equipment price
Model No.︰GHS15190
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 39998 / pc
Minimum Order︰1 pc
Share on:

 Total 9 Related Items
Prev12345Next

Product Description

CE hydroseeder spray grass seeds hydroseeding equipment price

Description

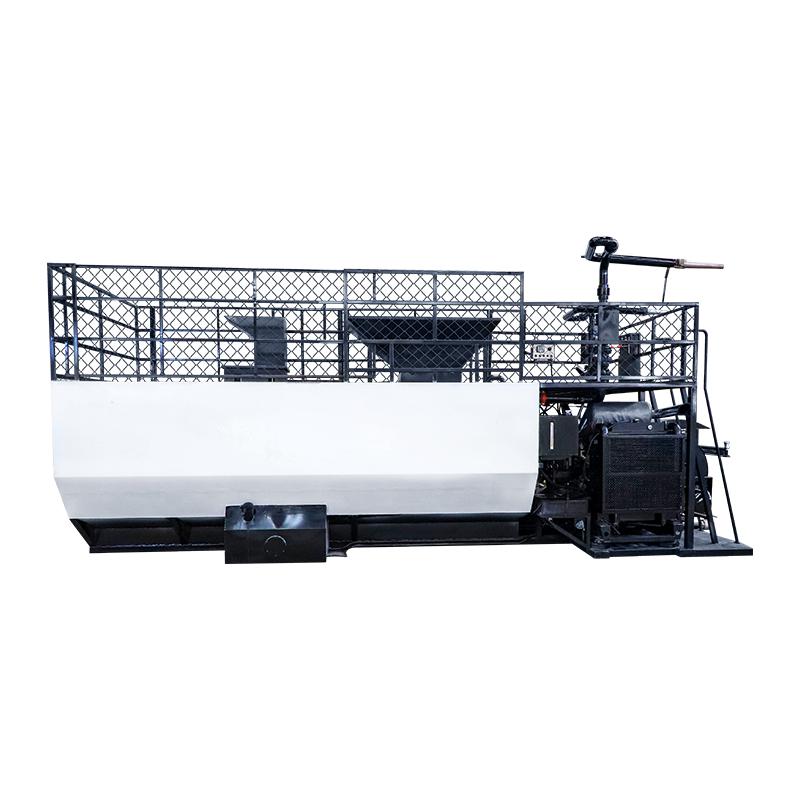

GHS15190 hydroseeder machine is a new, big capacity, wide applicability, simple operation and maintenance hydroseeder.

GHS series hydroseeding machine is driven by diesel engine. Tank capacity is 2000L, 3000L, 6000L, 8000L, 13000L or 15000L. Our machine is equipped with a specially designed centrifugal pump to handle the thickest slurries.



Application

GHS Series hydroseeding machine and hydroseeder technology is more and more applied in road greening, expressway slope greening, erosion control, landfill cover, mine reclamation, dust control, landscaping, etc. projects and also involves in planting permanent vegetation, spraying slurry, slope protection, grassing and erosion prevention.



Features

1. More horsepower with high efficiency: 190kw Cummins diesel engine, Air-controlled over-center clutch;

2. Specially design centrifugal pump: 6’’x3’’, capacity is 120m³/h;

3. Spraying distance of up to 85m from cannon;

4. Dual cannons design for spraying on both sides of the machine for hard-to reach areas;

5. Swivelable hydraulic hose reel with reel in and reel out functionality;

6. Twin mechanical agitators with helical paddle orientation and liquid recirculation;

7. Removable hoppers for mulch hatch and normal fill well;

8. Centralized electronic control to improve work efficiency;

9. Wireless remote control makes operate more easily during work.



Technical data

Model

GHS15190

Power

190KW, Cummins engine, water-cooled

Tank Size

Liquid capacity: 15000L

Working capacity: 13500L

Pump

Centrifugal pump: 6’’x3’’ (15.2X7.6cm), 120m³/h@14bar, 32mm solid clearance

Agitation

Twin mechanical agitators with helical paddle orientation and liquid recirculation

Rotating speed of mixer shaft

0-130rpm

Maximum horizontal conveying distance

85m

Spraying guns type

fixed standing gun and pipe gun

Height of fence

1100mm

Dimensions

7200x2500x2915mm

Weight

8500kg

Options

Stainless steel material for whole unit

Hose Reel with hose

Remote control unit



Payment Terms︰TT / LC / DP / DA
Packing︰Chinese soil spraying seeds grass planting machine: one 20" container
Lead Time︰7-15days
Standards Certificate︰ISO CE
