high speed face cocnrete planetary concrete mixer

  • high speed face cocnrete planetary concrete mixer
  • high speed face cocnrete planetary concrete mixer
  • high speed face cocnrete planetary concrete mixer
  • high speed face cocnrete planetary concrete mixer
  • high speed face cocnrete planetary concrete mixer
  • high speed face cocnrete planetary concrete mixer
  • high speed face cocnrete planetary concrete mixer
  • high speed face cocnrete planetary concrete mixer
  • high speed face cocnrete planetary concrete mixer
  • high speed face cocnrete planetary concrete mixer
Model No.︰GCPM
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 12999 / pc
Minimum Order︰1 pc
Share on:

 Total 4 Related Items
Prev1234

Product Description

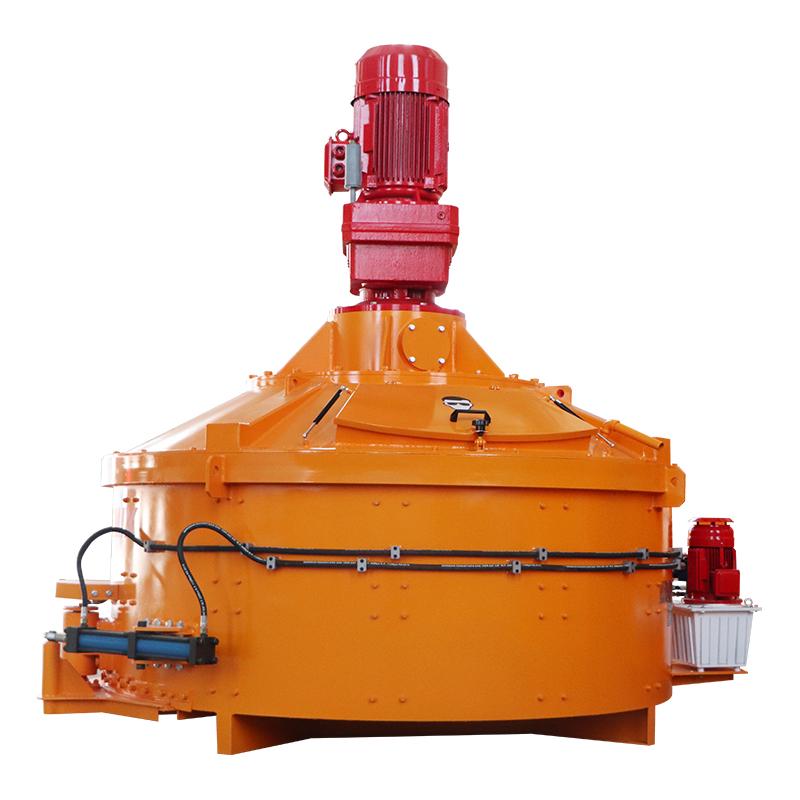

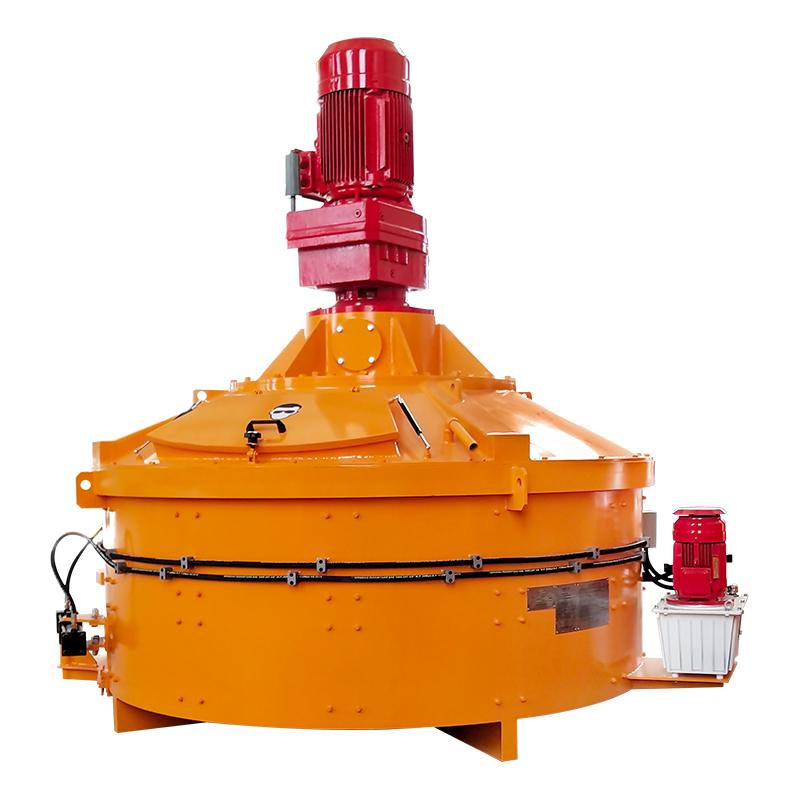

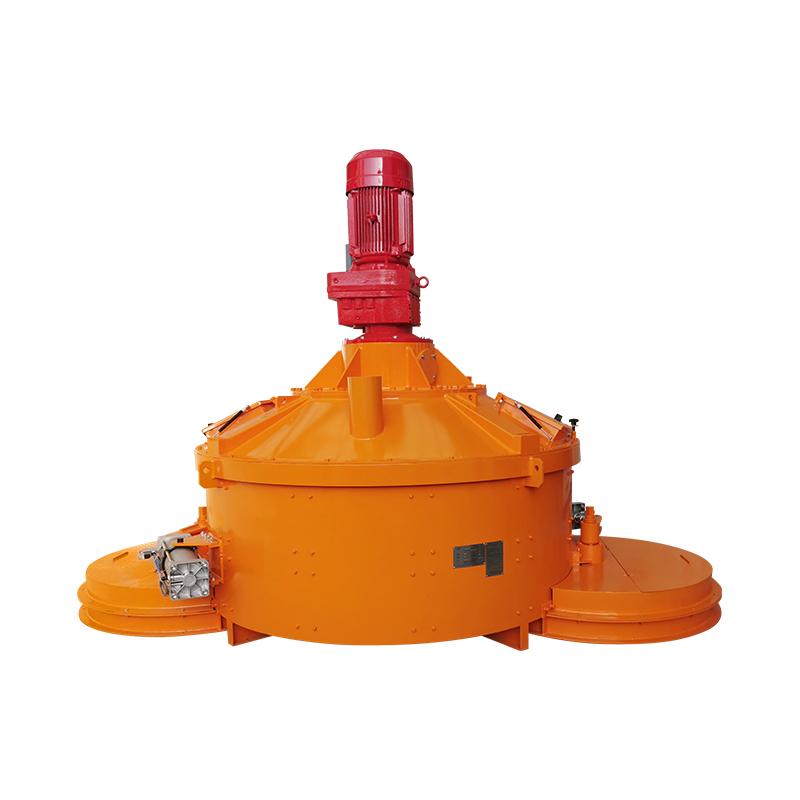

high speed face cocnrete planetary concrete mixer

Description

GCPM counter-current planetary mixer can mix all kinds of high-quality and high-performance concrete, and which can reach homogenous mixing at shortest time. It can also be widely used for glass, ceramics, refractories, fertilizer and concrete, etc.

Counter-current Gearing System

The rotate direction of mixing stars is reversed with revolution direction, and each mixing star’s direction is also different. The circulation movement and convective movement make the material severely mixing and achieve the uniform distribution.

Convection Mixing Device

★High mixing efficiency, low energy consumption.

★Compared with traditional planetary mixer, the mixing time of GCMP could be reduce 15~20%.

★The no-load current and load current with same material can be 15~20% lower.

Counter Current Planetary Mixer Technical Parameter

Item

GCPM50

GCPM100

GCPM150

GCPM250

GCPM330

GCPM500

GCPM750

GCPM1000

GCPM1250

Feeding Volume (L)

75

150

225

375

500

750

1125

1500

1875

Feeding Capacity (Kg)

120

240

360

600

790

1200

1800

2400

3000

Output Volume  (L)

50

100

150

250

330

500

750

1000

1250

Mixing Power (Kw)

3

5.5

7.5

11

15

18.5

30

37

45

Mixing Star*Blade

1*2

1*2

1*2

1*2

1*2

1*3

1*3

2*3

2*3

Side Scraper

1

1

1

1

1

1

1

1

1

Discharge Scraper

-

-

1

1

1

1

1

1

1

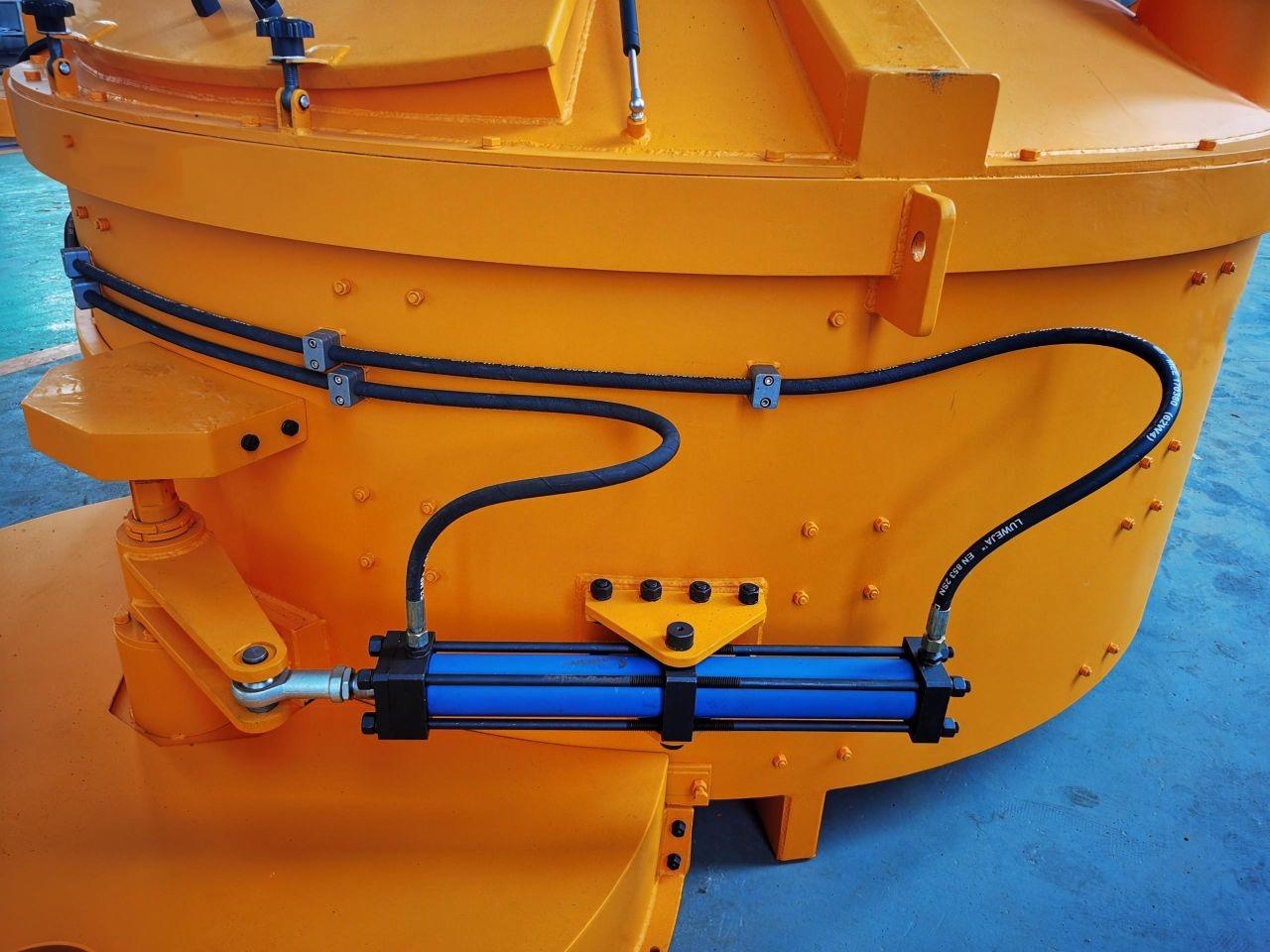

Discharging Power (KW)

Pneumatic Discharging

2.2

2.23

2.2

3

3

3

Weight (Kg)

750

1000

1300

1500

2000

2400

3900

5500

6000



Item

GCPM1500

GCPM2000

GCPM2500

GCPM3000

Feeding Volume (L)

2250

3000

3750

4500

Feeding Capacity (Kg)

3600

4800

6000

7250

Output Volume (L)

1500

2000

2500

3000

Mixing Power (Kw)

55

75

90

110

Mixing Star*Blade

2*3

3*3

3*3

3*3

Side Scraper

1

1

1

1

Discharge Scraper

1

2

2

2

Discharging Power (Kw)

3

4

4

4

Weight (Kg)

6500

9200

11000

12000

Mixing Locus Diagrams

The diagram show the prefect mixing action of the counter-current planetary mixer from 6 to 60 seconds after materials added. Note that the floor is completely swept by the mixing star’s action every 4 revolutions (6 seconds) and that each zone is covered at regular interval in time.

Application

Concrete

Other Construction Material

Refractory Materials

Others

Ready-mixed Concrete

Dry Mortar

Shaped refractory

Glass

Precast Concrete

Wet Mortar

Unshaped refractory

Fertilizer

Foam Concrete

Gypsum



Water treatment

Color Concrete

Aggregate Mixing



Mine backfill

Light Concrete

Emulsified asphalt





Shotcrete

Cement adhesive





Payment Terms︰TT / LC / DP / DA
Packing︰standard export packing or as your request
Lead Time︰15
Standards Certificate︰CE.ISO
