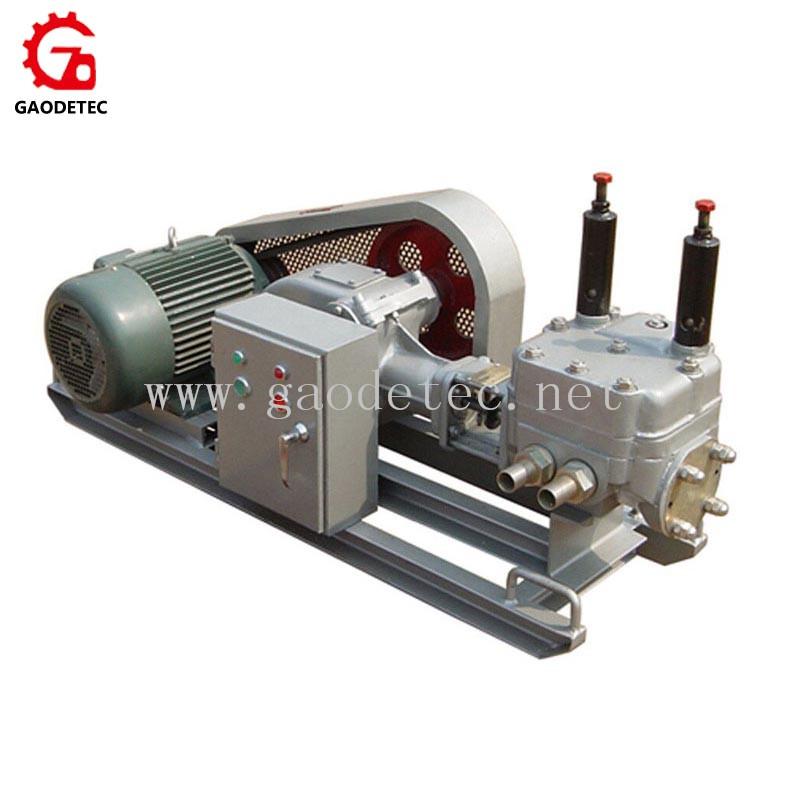

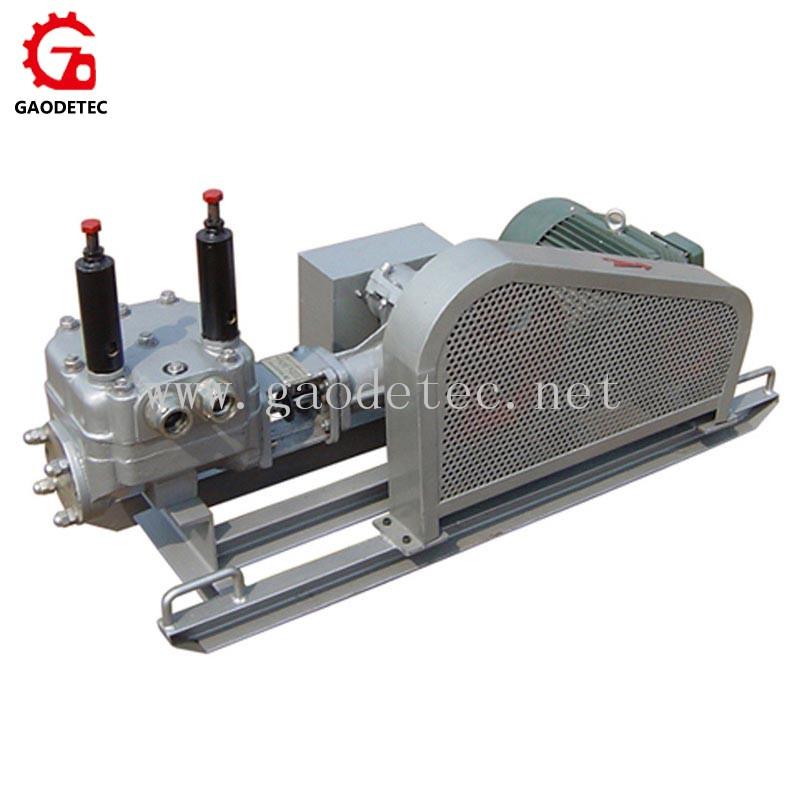

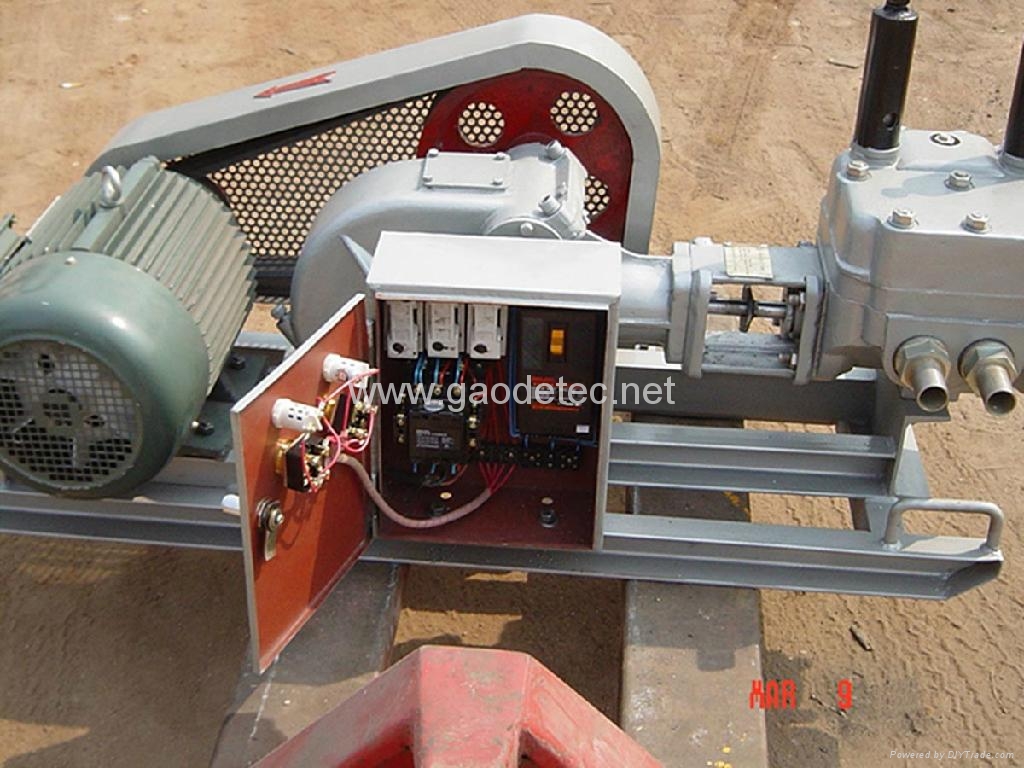

Newly Dual-slurry GDM60/40 Jet Injection Pump
Describe
Our jet injection pumps provide widely range grouting pressure selection as well as the dependability and durability required on your job site.
The jet injection pumps are ideal for grouting-process in underground and civil applications.
Features
1. Dual-slurry grout pump
2. Single piston with double-acting
3. Gear reducer
4. Ball valve
5. Compact size
6. Iron-casting pump house
Technical data
|
Specification:
|
|
|
Rated Output
|
60L/min
|
|
Rated Pressure
|
4MPa(40bar/580psi)
|
|
Cylinder Dia.
|
75mm
|
|
Piston Stroke
|
85mm
|
|
Stroke/Minute
|
85/min
|
|
Inlet diameter
|
38mm
|
|
Outlet diameter
|
32mm
|
|
Power unit
|
5.5KW(Electric) 10hp(Diesel)
|
|
Transmission
|
V-belt+gearbox
|
|
Chassis
|
Skid
|
|
Weight
|
210kg
|
|
Overall Dimensions
|
1280x485x645mm
|
|
Note: Single or Double Passageway are optional; Chassis: Skid or Tyre
|
A complete set of GDM 60 /40
|
No.
|
Description
|
Qty.
|
Unit
|
|
1
|
60 GROUT PUMP
|
1
|
set
|
|
2
|
Rubber piston
|
2
|
piece
|
|
3
|
Sucking hose ID51mm/2inch, L=2m
|
1
|
pcs
|
|
4
|
ID38 conveying hose,Length 10m
|
1
|
pcs
|
|
5
|
Accessorial tools
|
1
|
set
|
|
6
|
Seal parts kit
|
1
|
set
|
|
