GZ-5A Shotcrete machine for sale in Philippines
Please copy the link to the product website for more products and information
Our website: www.gaodetec.net

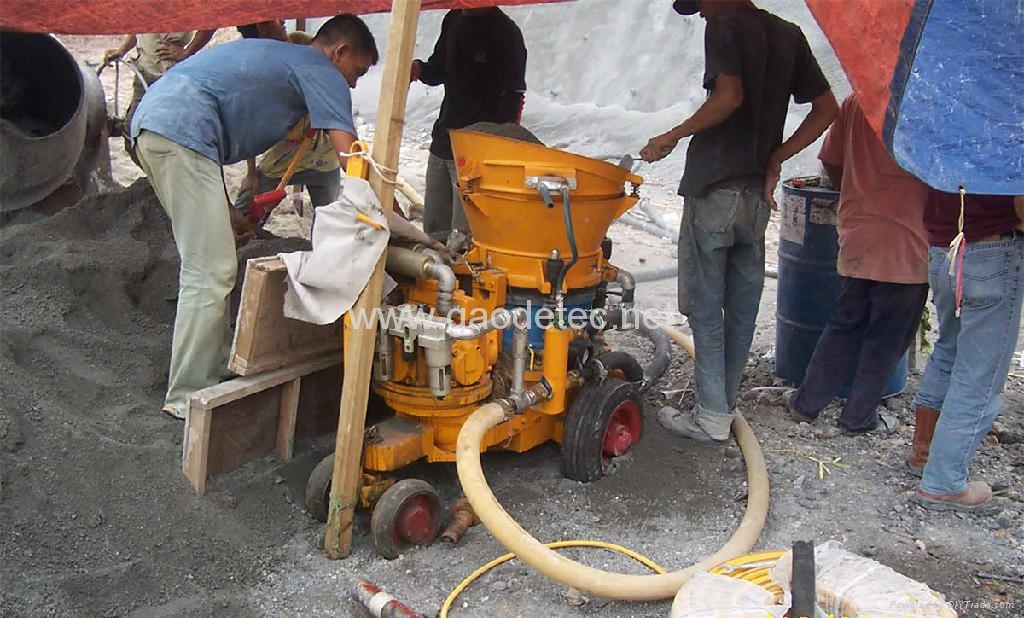

GZ-5 Series Shotcrete machine/Gunite/Concrete Spraying Machine is BMC medium-sized shotcrete machine for the processing of dry mix. And it is widely used by so many contractors.

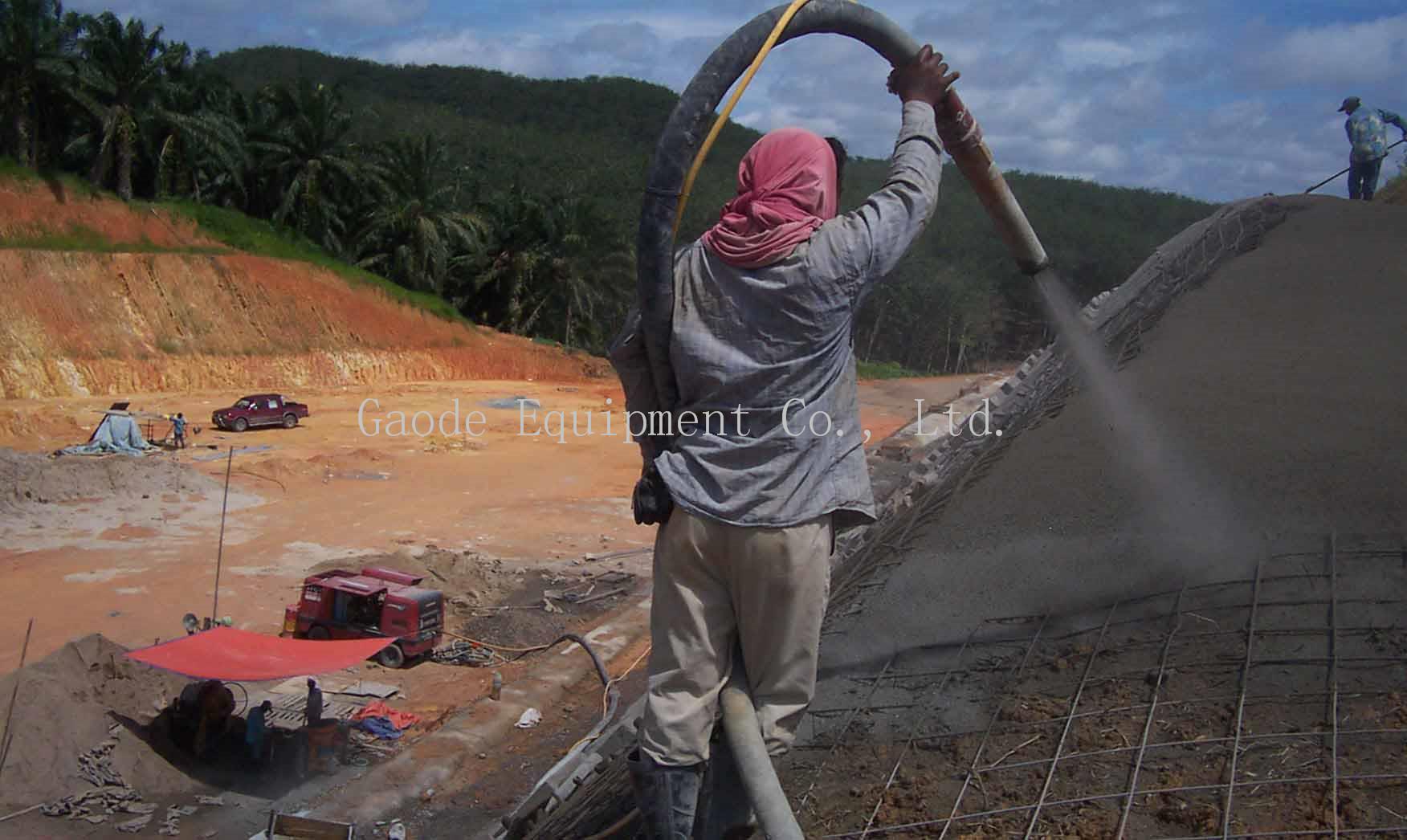

GZ-5A can be used for tunneling, mining operations, hydropower projects and hillside protection, etc.
Features:
Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
Thin flow conveying method with vortex flow, so the spraying flow is even continuous and steady, to improve the shotcrete quality.
Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life
Main Technical Data:
Air motor:
|
Output Capacity
|
2.5-5.5m3 /h
|
|
Max. Horizontal Conveying Distance
|
200m
|
|
Suitable Mix Ratio(Cement/Sand)
|
≤1:3~5
|
|
Max. Aggregate Size
|
Φ15 mm
|
|
Conveying Hose Inner Diameter
|
Φ51 mm
|
|
Conveying Pressure
|
0.2-0.4MPa
|
|
Air Consumption For Conveying Material
|
7~8m3/min
|
|
Air Motor Air Pressure
|
0.5MPa
|
|
Material Charging Height
|
1.1m
|
|
Rotor Speed
|
11rpm
|
|
Air Motor Type
|
TMH6A
|
|
Air Motor Air Consumption
|
7.5m3/min
|
|
Overall Dimension(length×width×height)
|
1.35×0.75×1.2m
|
|
Net Weight
|
720kg
|
Electric motor:
|
Rated Output
|
5m 3 /h
|
|
Max. Horizontal Conveying Distance
|
200m
|
|
Suitable Mix Ratio(Cement/Sand)
|
≤ 1:3~5
|
|
Water Cement Ratio
|
< 0.4
|
|
Max. Aggregate Size
|
Φ 15 mm
|
|
Conveying Hose Inner Diameter
|
51mm
|
|
Operating air Pressure
|
0.2-0.4MPa(29-58PSI)
|
|
Air Consumption
|
8~9m 3 /min(285-325CFM)
|
|
Motor Power
|
5.5kW(7.5hp)
|
|
Voltage
|
220V, 380V, 440V, 660V, 50Hz/60Hz
|
|
Material Charging Height
|
1.1m
|
|
Rotor Speed
|
11r/min
|
|
Overall Dimension(L× W× H)
|
1.35× 0.75× 1.2m
|
|
Net Weight
|
720kg
|
Diesel engine:
|
Output Capacity
|
3-5.5m3 /h
|
|
Max. Horizontal Conveying Distance
|
200m
|
|
Suitable Mix Ratio(Cement/Sand)
|
≤1:4~5
|
|
Water cement ratio
|
<0.4
|
|
Max. Aggregate Size
|
Dia.15 mm
|
|
Conveying Hose Inner Diameter
|
Dia.51 mm
|
|
Operating air Pressure
|
0.2-0.4MPa(29-58PSI)
|
|
Air Consumption
|
9m3/min(325CFM)
|
|
Material Charging Height
|
1.1m
|
|
Rotor Speed
|
11r/min
|
|
Diesel Type
|
CF1105M
|
|
Power
|
13kw/18hp
|
|
Overall Dimension(L× W× H)
|
2.2×0.96×1.2m
|
|
Net Weight
|
850kg
|
Contact Supplier:
Many thanks for visiting our web, we can supply shotcrete machine for you. Before we send quotation, please let me know the following question:
1. What's the project you will use the machine do, for slope protect, or other?
2. Do you need dry-mix shotcrete machine or wet-mix shotcrete machine?
3. What's the output you need, 3m3/h, 5m3/h, 9m3/h, or other?
4. What's the maximum particle size of the material, less than 10mm, 15mm, or 20mm?
5. About the engine, do you need air motor, electric or diesel ? What voltage it is on your local? It is 3 phase 380V 50Hz in China.
We have many standard models for your option, and we also could customize as per your requirement. Please tell us your requirements and we will provide you with the corresponding product parameters and quotations. If you have any questions, please contact us.
