Model No.︰GSZ3000A
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 9500 / set
Minimum Order︰1 set
Share on:

 Total 24 Related Items
Prev1314151617Next

Product Description

GSZ3000A Pneumatic wet-mix and dry-mix shotcrete machine

1.GSZ3000A shotcrete machine Introduction

GSZ3000A wet-mix and dry-mix shotcrete machine is a full pneumatic driven unit. And it mainly is used for wet spraying concrete. Its advantages are easy sealing, smooth stream and uniform spraying. It also has some obvious advantages such as advanced technology, Perfect structure, stable performance, convenient operation and longevity of service etc. It is widely employed in mining, tunnel, culvert, subway, hydropower engineering, underground excavation engineering etc.

Due to its full pneumatic driven unit, for the required anti-explosion applications, such as coal mining, tunnel and underground engineering, this unit is perfect and specific one.

2.GSZ3000A shotcrete machine Main Technical Data

Rated output

5m3/h

Max. horizontal conveying distance

35m

Max. aggregate size

Dia.15mm

Concrete slump

8~15cm

Conveying hose

Dia.50/65mm

Operating air pressure

0.2~0.6MPa

Air consumption

22m3/min (12+10)

Loading height

1.17m

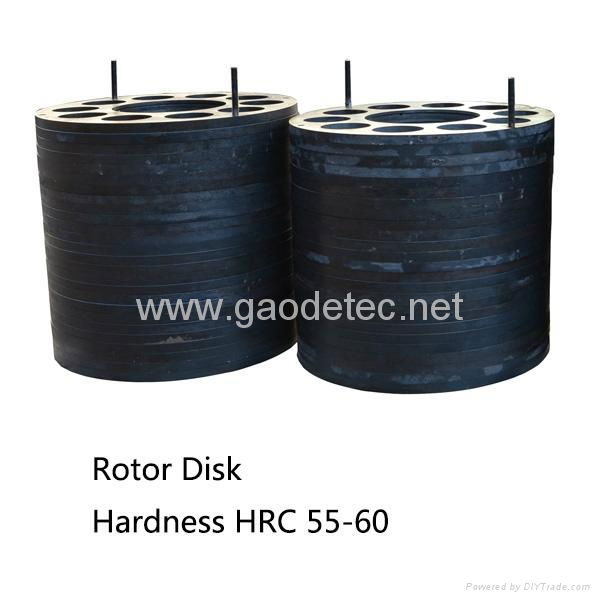

Rotor Rev.

11r/min

Rebound

≤10 %

Air motor power

8kW

Dosing pump model

BHA530 Dosing pump

Dosing pump rated pressure

0.5MPa

Dosing pump output

0~100L/h

Overall dimension(L×W×H)

                                                                                                                                                                                        1950×1050×1360mm

Weight



1200Kg

Payment Terms︰TT/LC
Packing︰plastic wrap, plywood case, free-gumigation, standard export packing. as shown below. Or customized.
Lead Time︰in stock. common type:7 working days after confirm
Standards Certificate︰CE ISO
Product Image

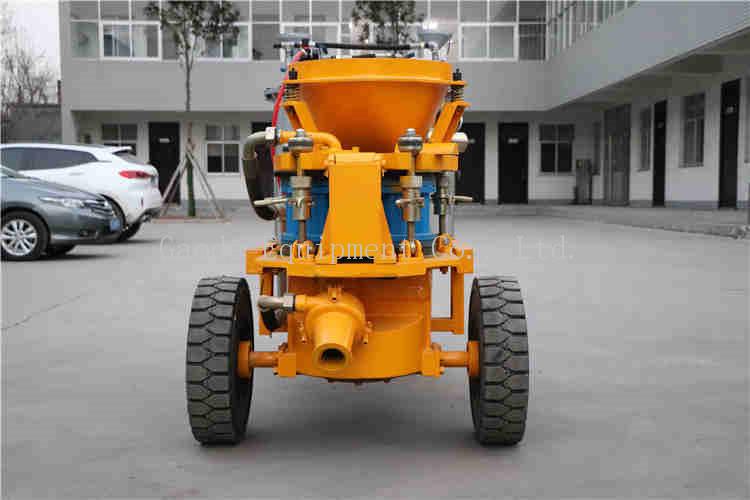

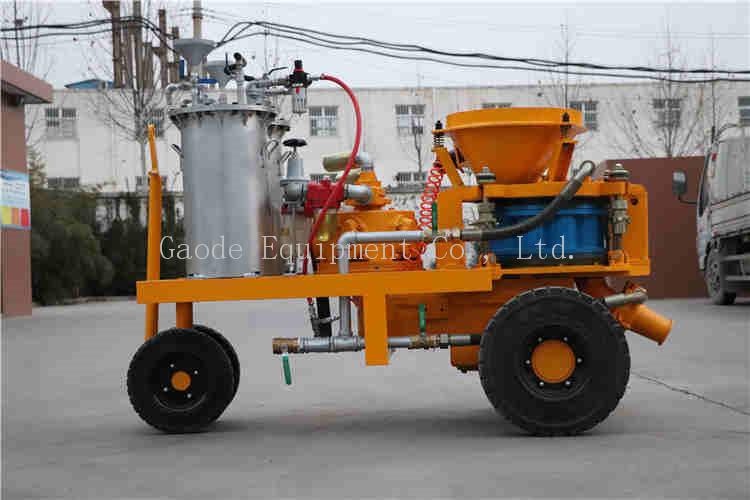

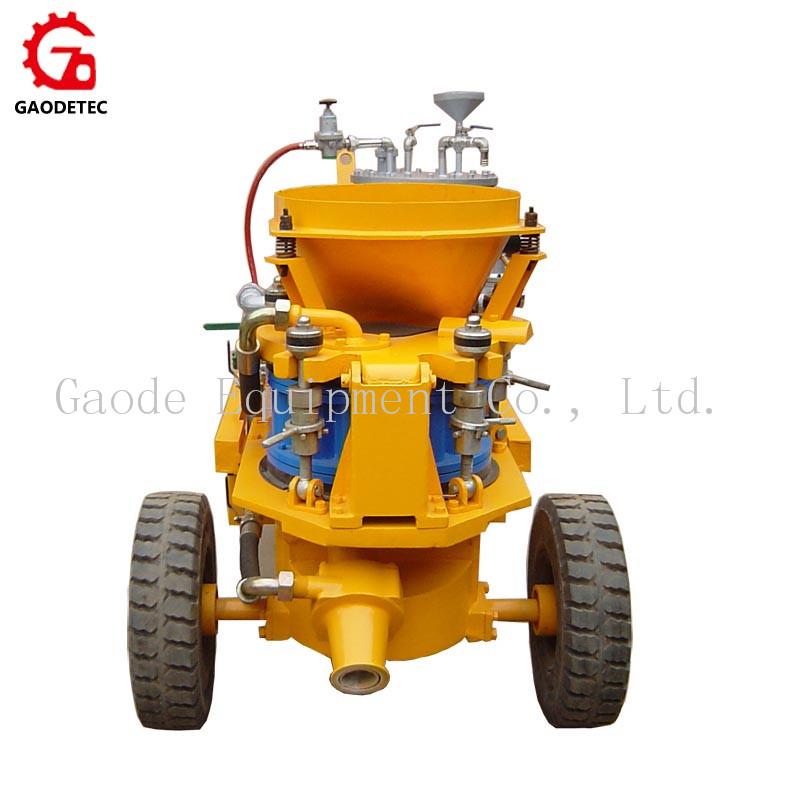

shotcrete machine
