Model No.︰GZ-3ER
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 5500 / set
Minimum Order︰1 set
Share on:

 Total 14 Related Items
Prev45678Next

Product Description

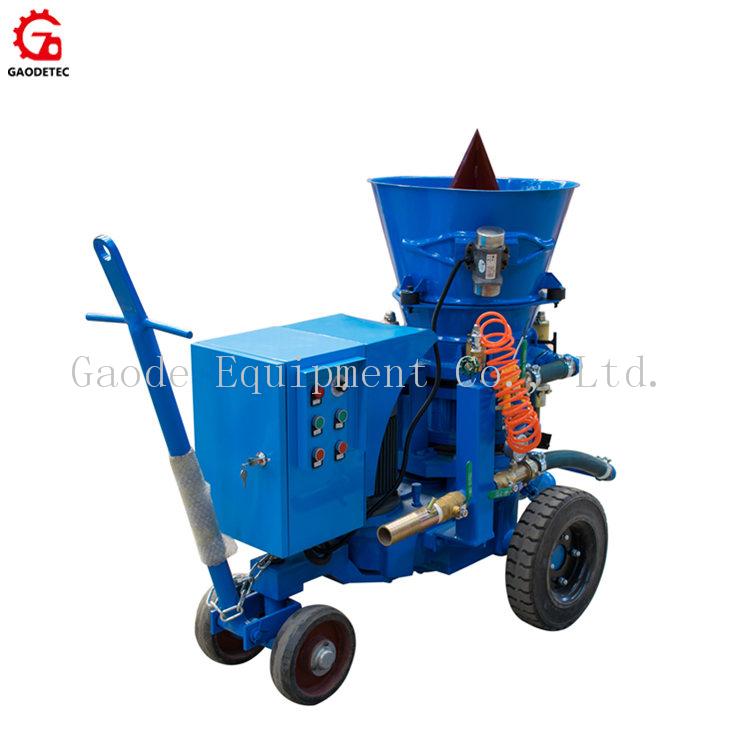

 GZ-3ER Refractory Spray Machine

Please copy the link to the product website for more products and information

Our website: www.gaodetec.net



Describe:

GZ-3ER is specifically designed for Refractory Dry-mix shotcrete applications, as well as for concrete shotcrete application.

With this GZ-3ER, you can get low dust and high performance spraying flow in nozzle.



Application:

1. Gunite Swimming Pool Construction

2. Soil Retention and Retaining Walls

3. Rocks aping

4. Refractory Spraying

5. Mine Support

6. Tunnel Linings

7. Concrete Repair

8. Artificial Rocks and Caves

9. Low-volume Refractory Spraying

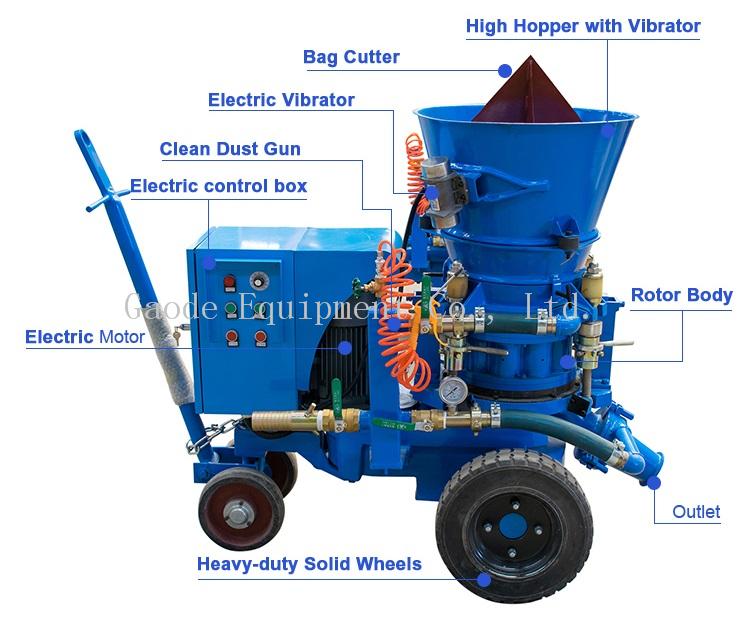

Features:

1. Variable output with variable-frequency drive.

2. Bag cutter and flat hopper with vibrator.

3. Collect dust bag.

4. Clean dust gun.

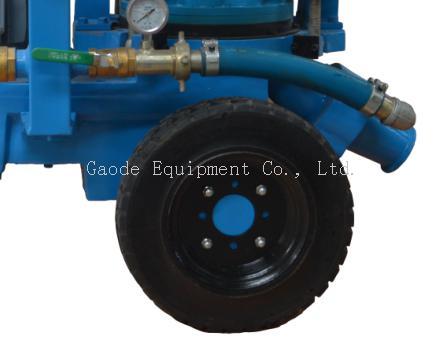

5. Heavy-duty solid wheels.

6. Coulping and clamp.

7. Light weight nozzle.

8. Blast rubber hose.



Advantages:

1. High quality, reliable performance .

2. Good seal performance, little dust.

3. Reasonable design, convenient to move

4. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.

5. Thin follow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.

6. We make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.

7. Widely used in mining, tunnel, culvert, revetment, etc



 Technical Data:

Specification (with Electric motor drive):

Rated Output

1-3m3 /h

Max. Horizontal Conveying Distance

100m

Max. Aggregate Size

Dia.10 mm

Conveying Hose Inner Diameter

38mm

Operating air Pressure

0.2-0.4MPa(29-58PSI)

Air Consumption

5~6m3/min(180-215CFM)

Motor Power

4kw

Voltage

3 phase,380V,50Hz

Material Charging Height

1.1m

Rotor Speed

13.2r/min

Overall Dimension(L×W×H)

1130*540*1100mm

Weight

430kg



Contact Supplier:

Many thanks for visiting our web, we can supply refractory shotcrete machine for you. Before we send quotation, please let me know the following question:


1. What's the project you will use the machine do ?
2. What is the output do you need, 3m3/h, 5m3/h ?
3. Drive type mode? Do you want electric or air motor ?
4. Do you have any other special requirments for this machine ?


We can customize according to your requirements, just tell us the application of the product or the parameter information you need.



A complete set of GZ-3ER refractory spray machine:

No.

Description

Quantity

Unit

Remarks

1

GZ-3ER Main Machine

1

set



2

Nozzle Assy.

1

set



3

Conveying Hose, ID38mm, 50ft.Length

1

piece



4

Water hose with hose hoop

1

piece



5

Rubber Hose Joint(long)

1

piece

Fitting

6

Rubber Hose Joint(short)

2

piece

Fitting

7

Quick Coupling

3

piece



8

Upper Sealing Plate

1

piece



9

Lower Sealing Plate

1

piece



Payment Terms︰TT/LC
Packing︰plastic wrap, plywood case, free-gumigation, standard export packing. as shown below. Or customised.
Lead Time︰in stock. common type7 working days after confirm
Standards Certificate︰CE ISO
