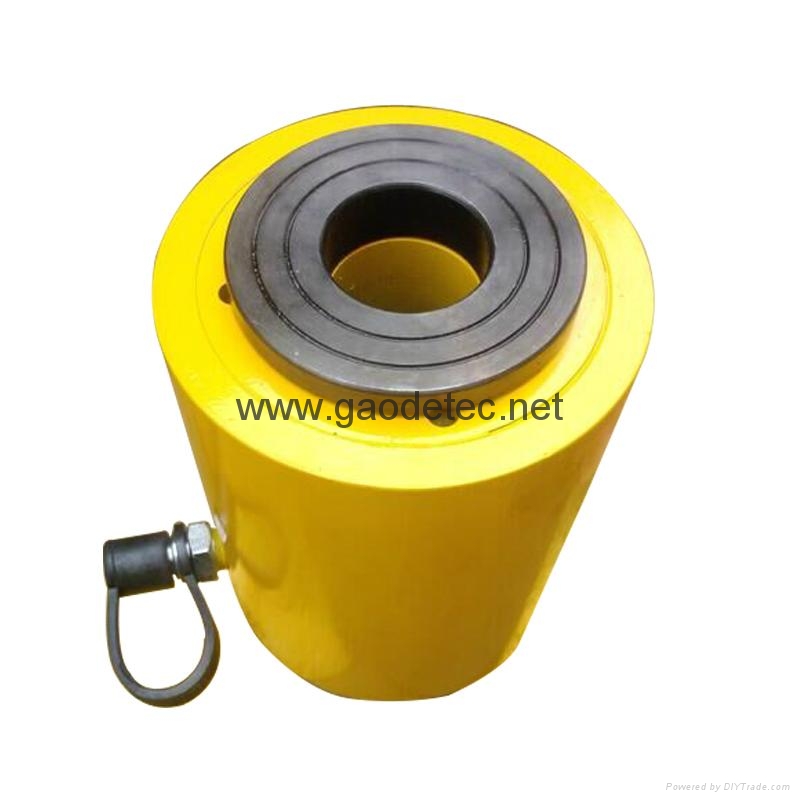

Single Acting Hydraulic Hollow Cylinder
1. describe:
RCH series of single acting hydraulic hollow cylinder, it has safe protect pressurizer, built-in pressure relief valve in order to protecting over loading, and it is good for safe operate. All the model can be customized according to client’s requirements. The hydraulic cylinder is main used for electric power, building, machine manufacturer, mining, subway, bridge and shipbuilding and kinds of industry for installing, lifting and tear down.
2. features:
1) Single acting design, spring rebound.
2) Stoving varnish has more better anti-corrosion.
3) Dustband can reduce pollution, it can extend hydraulic cylinder’s usage life.
3. technology data:
|
Model
|
Capacity
ton(KN)
|
Stroke
(mm)
|
Efficiency area
(cm2)
|
Capacity of hydraulic oil
(cm3)
|
Closed height
A
(mm)
|
Extend height
B
(mm)
|
Outer diameter
D
(mm)
|
Center hole
Y
(mm)
|
Weight
(Kg)
|
|
RCH-120
|
12(128)
|
8
|
17.9
|
14
|
56
|
63
|
70
|
19.6
|
1.5
|
|
RCH-121
|
41
|
17.9
|
73
|
121
|
162
|
70
|
19.6
|
2.8
|
|
RCH-1211
|
41
|
17.9
|
73
|
121
|
162
|
70
|
19.6
|
2.8
|
|
RCH-123
|
76
|
17.9
|
136
|
184
|
260
|
70
|
19
|
4.4
|
|
RCH-202
|
20(196)
|
51
|
30.5
|
156
|
162
|
213
|
99
|
26.9
|
7.7
|
|
RCH-206
|
155
|
30.5
|
473
|
306
|
461
|
99
|
26.9
|
14.1
|
|
RCH-302
|
30(294)
|
63
|
46.6
|
294
|
179
|
242
|
127
|
33.3
|
10.9
|
|
RCH-306
|
156
|
46.6
|
727
|
330
|
486
|
127
|
33.3
|
21.8
|
|
RCH-603
|
60 (588)
|
76
|
82.2
|
625
|
248
|
324
|
159
|
53.8
|
28.1
|
|
RCH-606
|
152
|
82.2
|
1249
|
324
|
476
|
159
|
53.8
|
35.4
|
|
RCH-1003
|
100(980)
|
76
|
133.1
|
1012
|
254
|
330
|
213
|
79
|
59.9
|
