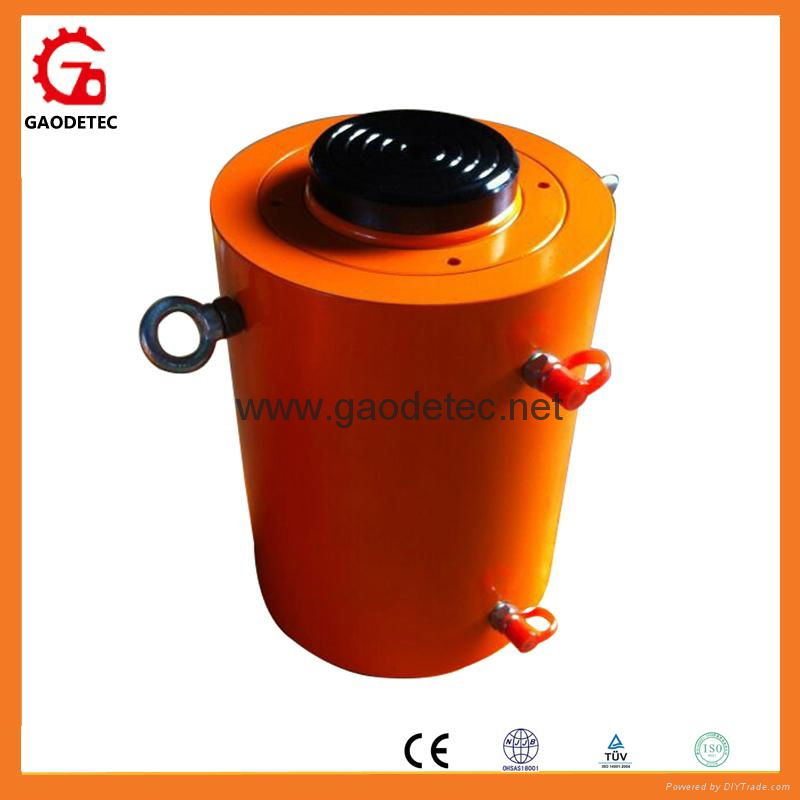

Double Acting Hydraulic Lifting Jack
1. describe:

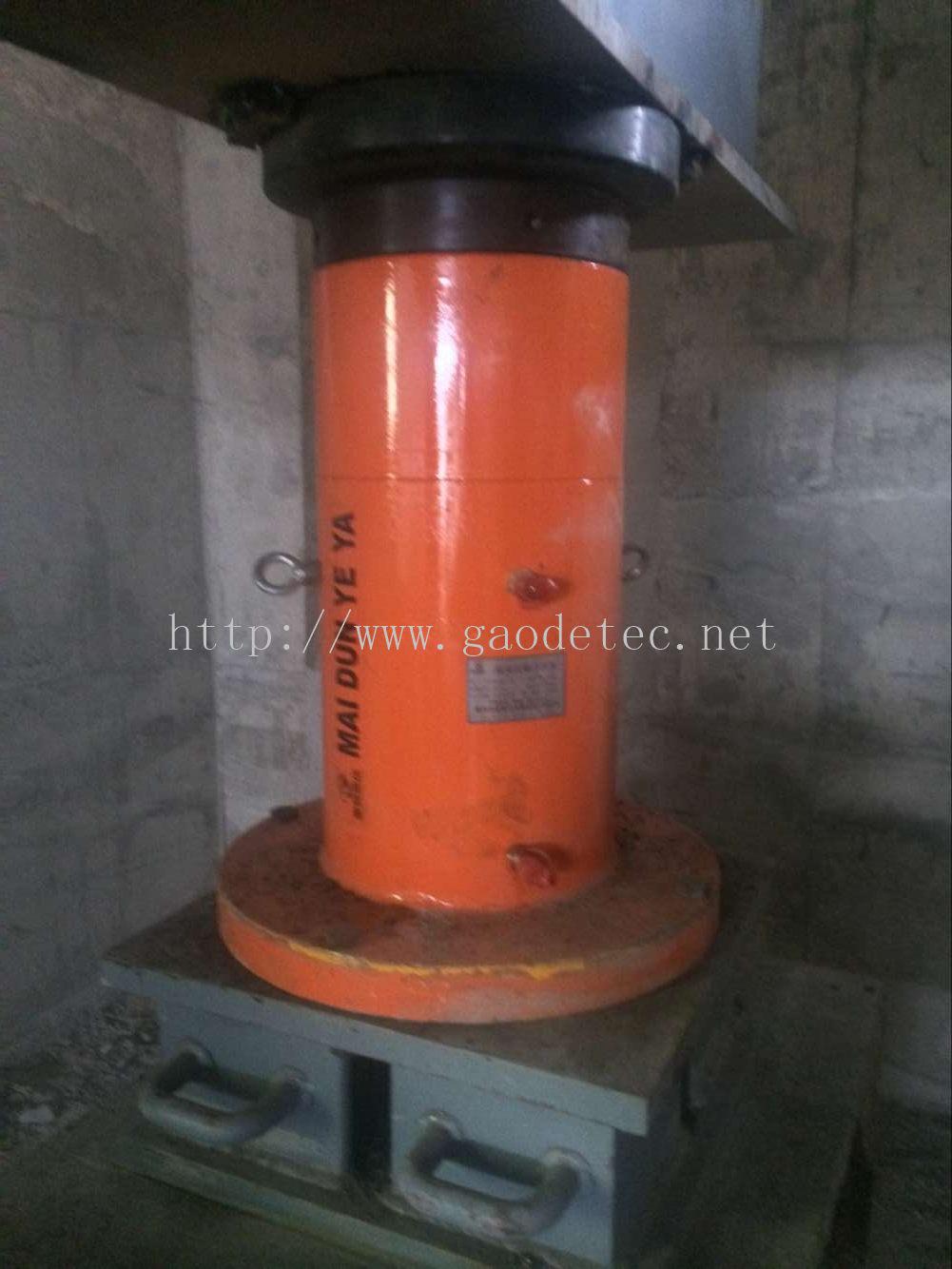

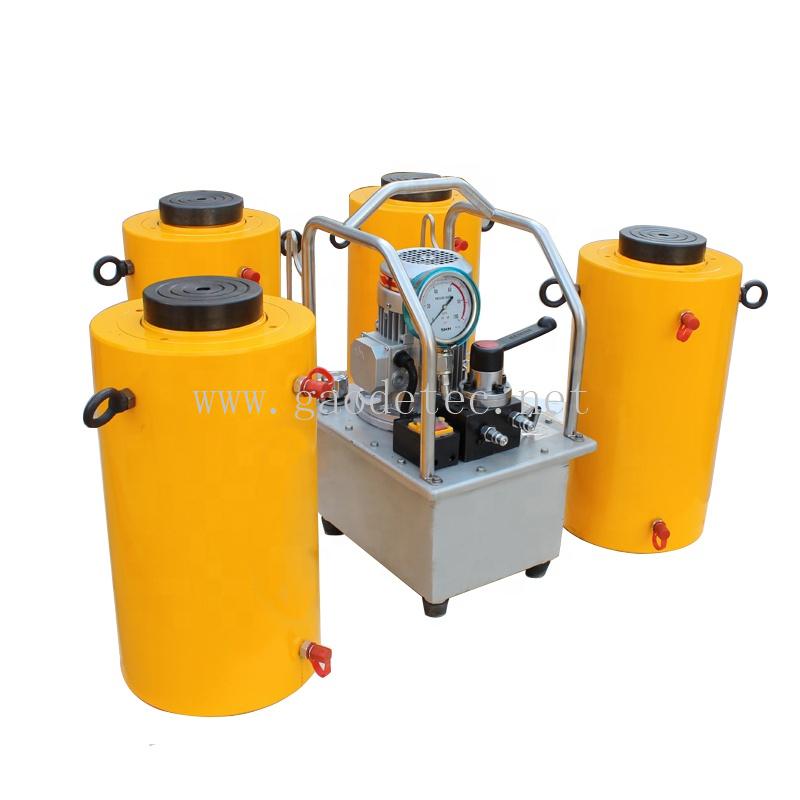

High pressure dobule acting hydraulic lifting jack is powered by ZB series of high pressure electric oil pump, the function for oil pressure rebound, overflow, it is designed a safe protect pressurizer, it can protect emergent over pressure, especial construction can protect cylinder. Hydraulic cylinder can bear partial loading is 5% of rated pressure. High pressure alloy cylinder is very durable, especially in the larger project, it is easily to be operated and control. It can be used for lifting heavy machine, bridge project, hydraulic engineering, harbour construction and other equipment. It has large output, light weight, remote control and other advantages, it can match with our high pressure oil pump, it can reach jack, push, pull and extrusion and kinds of working.
2. features:
1) Double acting design.
2) Stoving varnish has more better anti-corrosion.
3) Dustband can reduce pollution, it can extend hydraulic cylinder’s usage life.
3. technology data:
Model
|
Tonnage
T
|
Stroke
B-A mm
|
Closed height
A mm
|
Extend height
B mm
|
Outer diameter of oil cylinder
mm
|
Dimension of plunger
mm
|
Dimension of oil pump
mm
|
Weight
kg
|
Pressure
|
Recommend electric oil pump
|
STQ50-100
|
50
|
100
|
225
|
325
|
127
|
70
|
100
|
35
|
63MPA
|
50T-200T
0.55KW 0.75KW
1.5KW 3KW
4KW 5.5KW
|
STQ50-160
|
160
|
285
|
445
|
39
|
STQ50-200
|
200
|
325
|
525
|
46
|
STQ50-300
|
300
|
425
|
725
|
48
|
STQ50-500
|
500
|
625
|
1125
|
63
|
STQ100-100
|
100
|
100
|
250
|
350
|
180
|
100
|
140
|
58
|
63MPA
|
STQ100-160
|
160
|
310
|
470
|
63
|
STQ100-200
|
200
|
350
|
550
|
78
|
STQ100-300
|
300
|
450
|
750
|
96
|
STQ100-500
|
500
|
650
|
1150
|
130
|
STQ150-100
|
150
|
100
|
260
|
360
|
219
|
125
|
180
|
58
|
63MPA
|
STQ150-160
|
160
|
320
|
480
|
69
|
STQ150-200
|
200
|
360
|
560
|
86
|
STQ150-300
|
300
|
460
|
760
|
103
|
STQ150-500
|
500
|
660
|
1160
|
255
|
STQ200-100
|
200
|
100
|
285
|
385
|
240
|
150
|
200
|
96
|
63MPA
|
STQ200-160
|
160
|
345
|
505
|
103
|
STQ200-200
|
200
|
385
|
585
|
116
|
STQ200-300
|
300
|
485
|
785
|
161
|
STQ200-500
|
500
|
685
|
1185
|
221
|
STQ320-100
|
320
|
100
|
310
|
410
|
330
|
180
|
250
|
196
|
63MPA
|
1.5KW 3KW
4KW 5.5KW
|
STQ320-160
|
160
|
370
|
530
|
240
|
STQ320-200
|
200
|
410
|
610
|
258
|
STQ320-300
|
300
|
510
|
810
|
311
|
STQ320-500
|
500
|
710
|
1210
|
456
|
STQ400-100
|
400
|
100
|
355
|
455
|
380
|
200
|
290
|
198
|
63MPA
|
3KW 4KW
5.5KW 7.5KW
|
STQ400-160
|
160
|
415
|
575
|
231
|
STQ400-200
|
200
|
460
|
660
|
264
|
STQ400-300
|
300
|
555
|
855
|
367
|
STQ400-500
|
500
|
755
|
1255
|
456
|
STQ500-100
|
500
|
100
|
360
|
460
|
430
|
200
|
320
|
323
|
63MPA
|
3KW 4KW
5.5KW 7.5KW
|
STQ500-160
|
160
|
420
|
580
|
330
|
STQ500-200
|
200
|
460
|
660
|
420
|
STQ500-300
|
300
|
560
|
860
|
581
|
STQ500-500
|
500
|
760
|
1260
|
599
|
STQ630-100
|
630
|
100
|
417
|
517
|
500
|
250
|
360
|
560
|
63MPA
|
4KW 5.5KW
7.5KW 11KW
|
STQ630-160
|
160
|
477
|
637
|
633
|
STQ630-200
|
200
|
517
|
717
|
696
|
STQ630-300
|
300
|
617
|
917
|
898
|
STQ630-500
|
500
|
817
|
1317
|
1250
|
STQ800-100
|
800
|
100
|
488
|
588
|
560
|
300
|
400
|
896
|
63MPA
|
7.5KW 11KW
|
STQ800-200
|
200
|
598
|
798
|
1040
|
STQ800-300
|
300
|
698
|
998
|
1380
|
STQ800-500
|
500
|
898
|
1398
|
1520
|
STQ1000-100
|
1000
|
100
|
530
|
630
|
600
|
320
|
450
|
1286
|
63MPA
|
7.5KW 11KW
|
STQ1000-200
|
200
|
630
|
830
|
1332
|
STQ1000-300
|
300
|
760
|
1060
|
1663
|
