Double Acting Hydraulic Hole Jack

  • Double Acting Hydraulic Hole Jack
  • Double Acting Hydraulic Hole Jack
  • Double Acting Hydraulic Hole Jack
  • Double Acting Hydraulic Hole Jack
  • hydraulic hole jack
  • hydraulic hole jack
  • Double Acting Hydraulic Hole Jack
  • double acting hydraulic hollow jack
  • double acting jack with electric oil pump
Model No.︰RRH
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 100 / set
Minimum Order︰1 set
Share on:

 Total 30 Related Items
Prev1112131415Next

Product Description

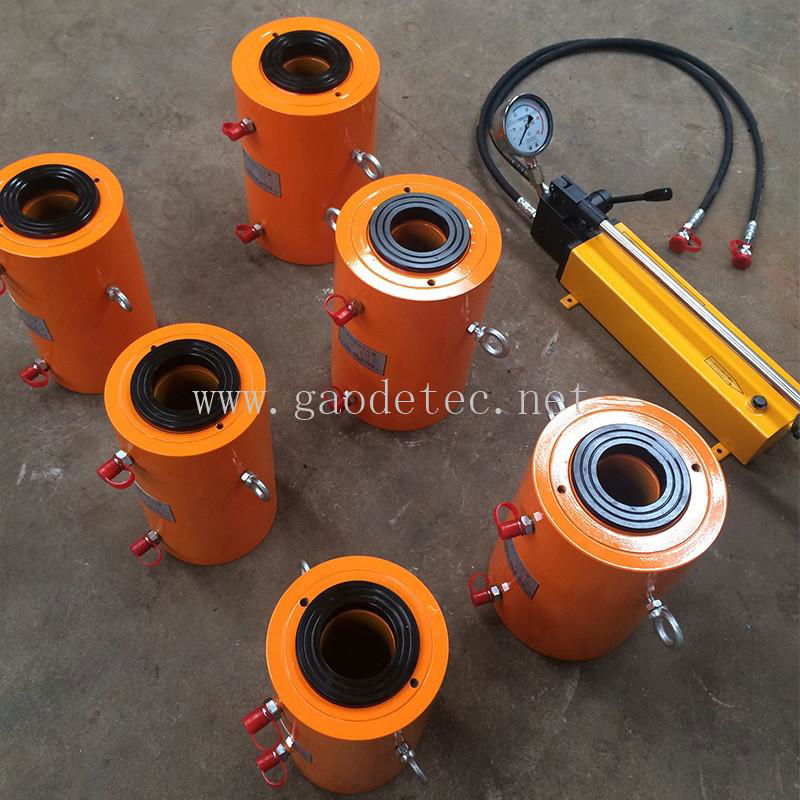

Double Acting Hydraulic Hollow Jack

1. Describe:

  RRH series of double acting hollow hydraulic jack has all the function of general hydraulic jack, and it also has the function of pulling. It also used for tension PC strands, steel wire, axle and drill rod.



2. Features:

1) Double acting design can highly improve the convenience.

2) Built-in safe valve can protect jack when over loading.

3) Cylinder can bear Max loading when Max stroke.

4) High quality seal ring make the jack’s life more long, no oil leakage.

3. technology data:



Model

Capacity

T

Stroke

B-A

mm

Closed height

A

mm

Extend height

B

mm

Outer diameter

mm

Center hole

mm

Weight

Kg

RRH-307

30

178

330

508

114

33.3

22

RRH-3010

257

432

689

114

33.3

27

RRH-603

60

89

248

337

159

53.8

28

RRH-606

165

324

489

159

53.8

35

RRH-6010

257

438

695

159

53.8

46

RRH-1001

100

38

165

203

213

79.2

39

RRH-1003

76

254

330

213

79.2

61

RRH-1006

152

342

495

213

79.2

79

RRH-10010

257

460

718

213

79.2

107

RRH-1508

150

203

349

552

248

79.5

111

Payment Terms︰TT / LC / DP / DA
Packing︰Wooden case or carton
Lead Time︰5 working days
Standards Certificate︰CE ISO
Product Image





hydraulic hole jack
hydraulic hole jack

hydraulic hole jack
hydraulic hole jack

Double Acting Hydraulic Hole Jack
Double Acting Hydraulic Hole Jack

double acting hydraulic hollow jack
double acting hydraulic hollow jack

double acting jack with electric oil pump
double acting jack with electric oil pump
