Low cost foam concrete brick cutting machine price

foam concrete brick
  • foam concrete brick
  • foam concrete brick
  • foam concrete brick
  • foam concrete brick
  • foam concrete brick
  • foam concrete brick
  • foam concrete brick
  • foam concrete brick
  • foam concrete brick
  • foam concrete brick
Model No.︰GF20
Brand Name︰Gaode
Country of Origin︰China
Minimum Order︰1 pc
Share on:

 Total 40 Related Items
Prev2324252627Next

Product Description

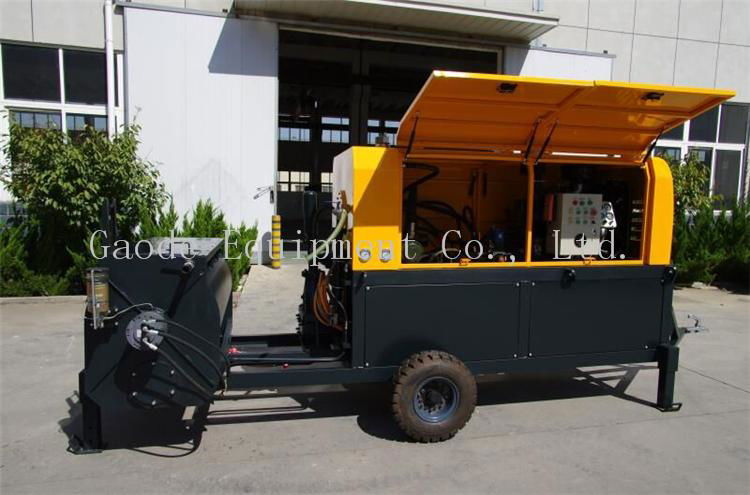

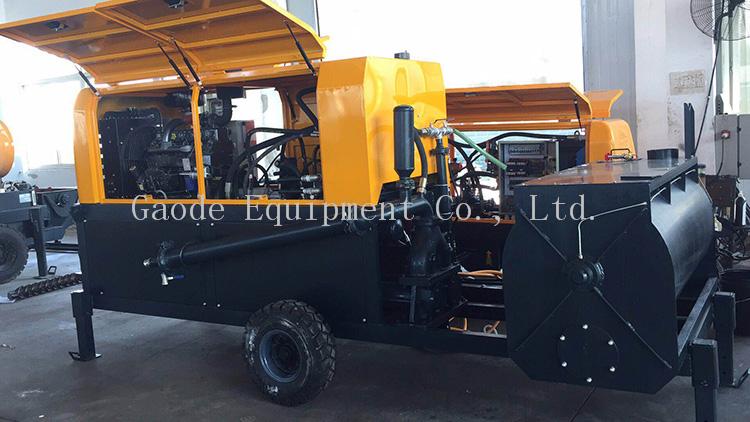

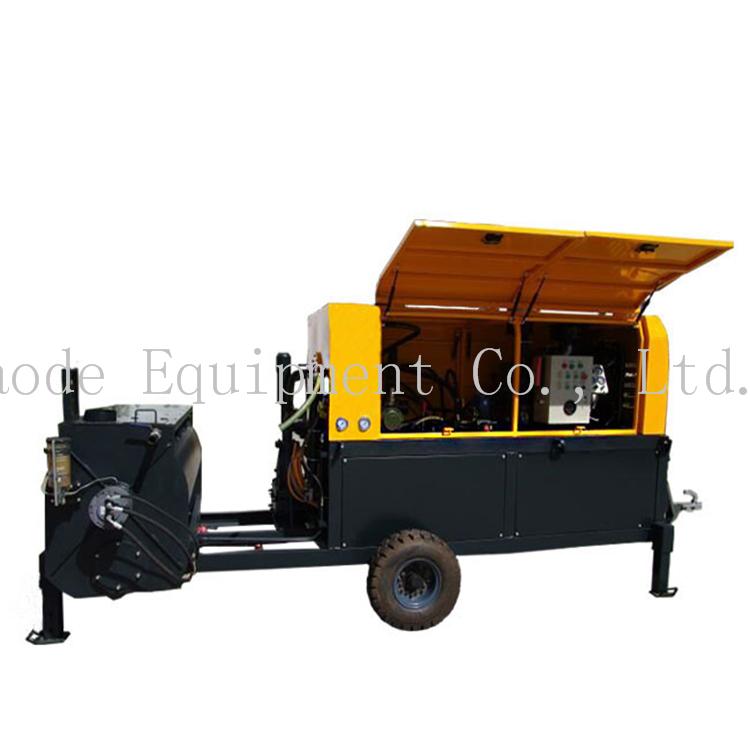

GF20 diesel foam concrete machine



Foam concrete, also called Cellular Light weight Concrete, has been used in over 40 countries for building houses, apartments, schools, hospitals, industrial buildings, etc.



Brief Instruction:

GF20D diesel foam concrete machine is a kind of middle one according our many years of working experience. It includes a feeder, a mixer, a set of foaming system and a pump, adopts digital control technology, can exactly adjust foam cement density. This machine capacity is 20 cubic meters per hour. At present, our products have already big batch export to overseas market, achieving a historic breakthrough that China cement foam machine from import to export.



Working Principle:

Foam concrete specially made by foam concrete mixer is a kind of advanced lightweight and insulated material. And this material has a great number of closed pores. With the help of foaming system of foaming machine, foam agent can foam fully and mechanically. Then foam and cement paste are mixed evenly. Next, the mixture will be out from pumping system to cast in place construction or form mold. After natural conservation, foam concrete forms.



Features:

1. GF20D foam concrete machine is a middle-sized one, designed for bricks production, which is easy to operate and mobile.

2. It is specially designed to use where there is no power, no electricity, using diesel to drive the machine.

3. Pumping, foaming and mixing system assembles as a whole, convenient to use.

4. It has the continuous feeding system and water supply system, with high pumping height and low power requirement.



Technical parameters:

Model No./Cement foam machine

GF20D

Max. theoretical concrete put(m³/h)

20

Diesel engine power(kw)

53

Theoretical vertical conveying height(m)

80

Theoretical level transmission distance(m)

500

Mixer tank capacity(L)

580

Filling height(mm)

1100

Mixer size(mm)

1940*780*1470

Feeder size(mm)

3990*760*830

Main part overall dimension(mm)

4000*1500*1900

Weight of main part(kg)

3000

Payment Terms︰TT / LC / DP / DA
Packing︰Wooden packing
Lead Time︰15
Standards Certificate︰ISO CE
Product Image

foam concrete brick
foam concrete brick

foam concrete brick
foam concrete brick

foam concrete brick
foam concrete brick

foam concrete brick
foam concrete brick

foam concrete brick
foam concrete brick

foam concrete brick
foam concrete brick

foam concrete brick
foam concrete brick

foam concrete brick
foam concrete brick

foam concrete brick
foam concrete brick

foam concrete brick
foam concrete brick
