Hydraulic High Pressure Cement Mixing Grout Pump Station

  • Hydraulic High Pressure Cement Mixing Grout Pump Station
  • Hydraulic High Pressure Cement Mixing Grout Pump Station
  • Hydraulic High Pressure Cement Mixing Grout Pump Station
  • Hydraulic High Pressure Cement Mixing Grout Pump Station
  • Hydraulic High Pressure Cement Mixing Grout Pump Station
  • Hydraulic High Pressure Cement Mixing Grout Pump Station
Model No.︰GGP
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 9999 / pc
Minimum Order︰1 pc
Share on:

 Total 73 Related Items
12345Next

Product Description

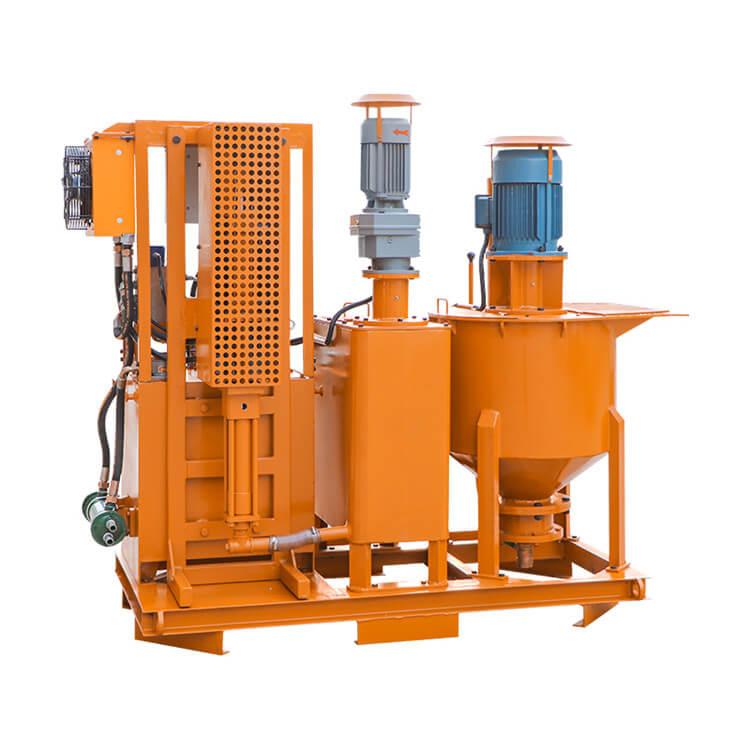

Hydraulic High Pressure Cement Mixing Grout Pump Station

Product Description

GGP100/150/20PI-E grout station is a combination of mixer, agitator and grout pump in one base frame. It is mainly used to be made and grouted the cement slurry in the highway, railway, hydropower, construction, mining and other ground and underground construction applications.



High-speed, high-shear colloidal mixer causes a vortex flow to ensure mix quickly and evenly. Water, cement or bentonite is quickly mixed into homogeneous slurry. Then the mixed slurry was delivered to the agitator. Grout pump injects from the mixing drum (storage tank). This ensures a continuous mixing and grouting operations. The grouting plant is hydraulic drive with electric motor. Grouting pressure and displacement is adjustable. Compact size and it is easy to operate. It also takes up a small space.



Main Features

  • One and two-oil gear pump to get large output and high pressure in the same grout pump.
  • Single piston and two-acting, by our special design to get the same volume in both rod and no rod chamber.
  • Vertical pump with compact size.
  • Hydraulic drive, safely releasing pressure when pumping block.
  • Ball valve.
  • Up to 5mm particle size.
  • Low flow pressure surge system.
  • Lower charging material height for mixer.
  • High-speed colloidal grout mixer.

Specification

Name

Data

Type

GGP100/150/20PI-E Grout Station

Mixer

Volume

100L

Speed

1500rpm

Motor power

5.5kw

Agitator

Volume

150L

Speed

36rpm

Motor power

1.5kw

 Grouting pump

Pump pressure and output

20L/min @ 43bar

10L/min @100bar

Motor power

5.5kw

Dimension

Dimension

2200×1000×1850mm

Weight

900kg





Payment Terms︰TT / LC / DP / DA
Packing︰standard export packing or as your request
Lead Time︰15
Standards Certificate︰CE.ISO

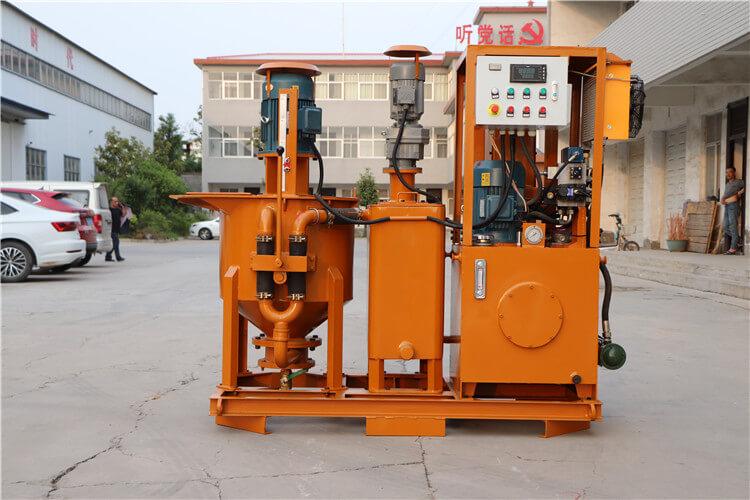

Product Image
