Product Description

Foam Concrete Pump for Sale

Gaode foam concrete pump mainly includes two kinds: hose type foam concrete pump and piston type foam concrete pump.

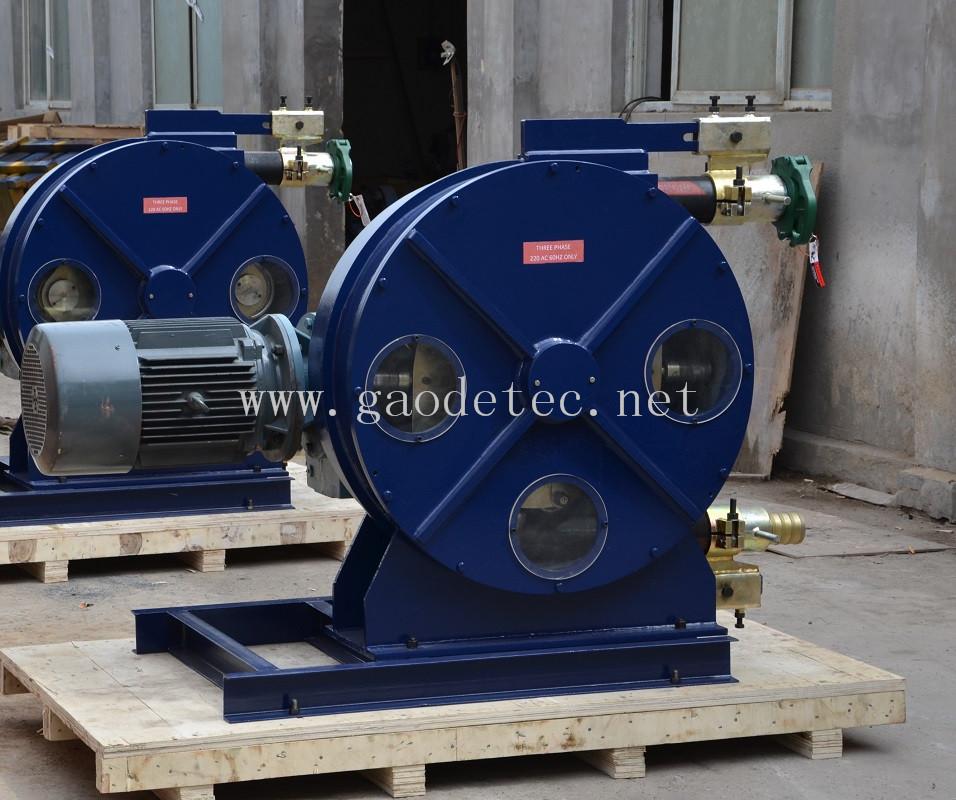

Hose type foam concrete pump:

According to the foam concrete output difference, there are GH50, GH65 GH76 three types for option.

Mainly used for making foam concrete blocks or bricks.

Features:

  1. No valves
  2. Self-priming
  3. Only tube to replace
  4. Spiral bevel gear SEW series
  5. Mainly consists pump house, rotor, idel rotor, squeeze tube, and driving unit
  6. Easy maintance, low cost, short down time

Technical data sheet:

Model

GH76

GH65

GH50

Output

20m3/h

10-15 m3/h

8-10 m3/h

Max. theoretical conveying pressure

1.5MPa

1.5Mpa

1.5Mpa

Hose ID(mm)

76

65

50

Rotation

42r/min

42r/min

35r/min

Max. aggregate Dia ( mm )

15mm

12

10

Max. Suct.Left ( m )

5

5

5

Motor Power (kw)

18.5kw

11

7.5

Also could according to your dmeands, to offer suitable type.

Piston type foam concrete pump:

Mainly used for high pressure and big output, such as foam concrete wall, roof insulation etc.

Model

GP30

Max. Output

30 m3/h

Max. Conveying Pressure

8 MPa

Max. Horizontal Transporting Range

600 m

Max. Vertical Transporting Height

200 m

Max. Particle Size of Aggregates

8 mm

Cylinder Bore

80 mm

Delivery Cylinder Bore

140 mm

Max. Pressure of Hydraulic System

24 MPa

Oil Pressure Box Volume

200 L

Motor Power

30 kW

Total Weight

2200 kg

Overall Dimension

3100x920 x1300mm

Payment Terms︰ TT/LC/DA/DP/IN Cash

Packing︰ contained in a 20 feet container

Lead Time︰ within 7 days after received prepament

Standards Certificate︰ ISO9001 CE
