China supplier vane air motor

6AM vane air motor
  • 6AM vane air motor
  • 4AM vane air motor
  • 4AM-F110 vane air motor
  • 2AM-F114.3-15 vane air motor
  • 4AM-H vane air motor
  • 6AM-ARV-54 vane air motor
  • 6AM-F114.3-158 vane air motor
  • 8AM vane air motor
  • 16AM vane air motor
  • NL32 oilless vane air motor
  • 1AM vane air motor
  • 4AM stainless steel air motor
  • China supplier vane air motor
  • China supplier vane air motor
  • China supplier vane air motor
Model No.︰AM
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 130 / Set
Minimum Order︰1 Set
Share on:

 Total 5 Related Items
Prev12345Next

Product Description

Vane air motor used for air winch

1. Vane air motor description:

With compressed air as actuating medium, vane air motor makes use of the expansion of compressed gases; convert

the pressure energy into mechanical energy. Air motor has simple structure, small size, light weight, high horsepower,

and easy to be operated and maintained. It also has the feature of proof water, fire, moisture and explosion. It can work

in humid, high temperatures, high dust and other proof working environment. Besides mine, rock drilling and loading,

it was also widely used for ships, metallurgical, chemical, paper and other industries.

2. Vane air motor features:

  1. Simple structure, small size, light weight, high horsepower, and easy to be operated and maintained.
  2. proof water, fire, moisture and explosion
  3. can work in humid, high temperatures, high dust and other proof working environment

3. Vane air motor technical data:

Model

Maximum Speed

Maximum Torque

Power

Torque

Rotate Speed

Air consumption



Rotate Speed

Torque

hp

kw

Nm

lb.in.

rpm

m3/h

cfm

rpm

Nm

lb.in.

1AM

0.45

0.33

0.31

2.75

10000

35.1

20.5

650

0.65

5.6

2AM

0.93

0.68

2.20

19.50

3000

49.5

30

350

3.05

26.1

4AM

1.70

1.30

4.10

36.00

3000

132.5

78

300

6.3

56

6AM

4.00

3.00

10.00

84.00

3000

228

128

300

13

115

8AM

5.25

3.90

14.40

132.00

2500

293

175

300

21

185

16AM

9.50

7.00

34.00

290.00

2000

475

275

300

43

372

Payment Terms︰TT / LC / DP / DA
Packing︰Standard export package
Lead Time︰within 7 working days after receiving prepayment
Standards Certificate︰ISO CE SGS
Product Image

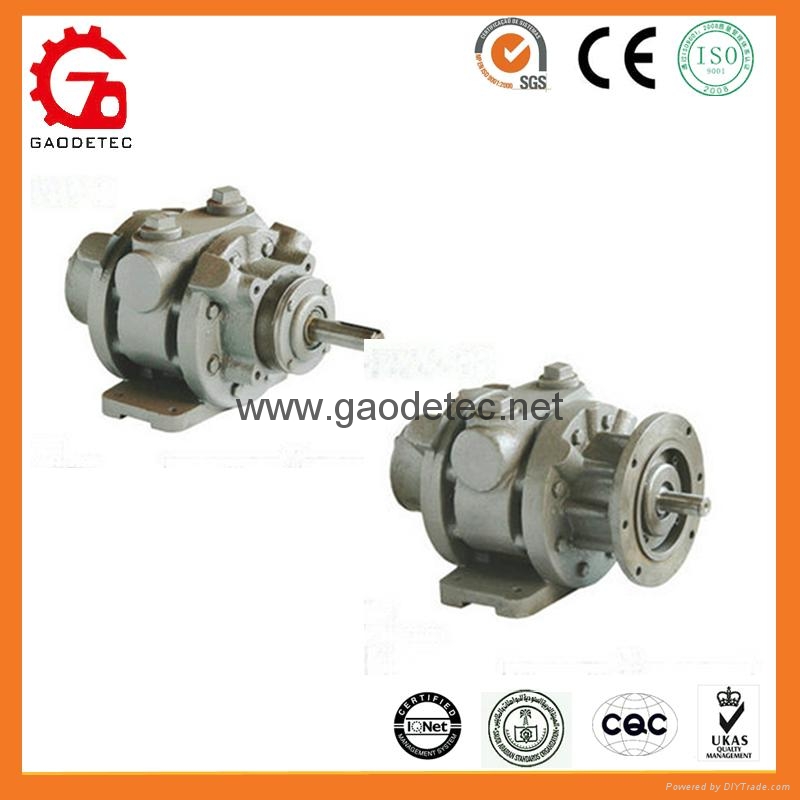

6AM vane air motor
6AM vane air motor

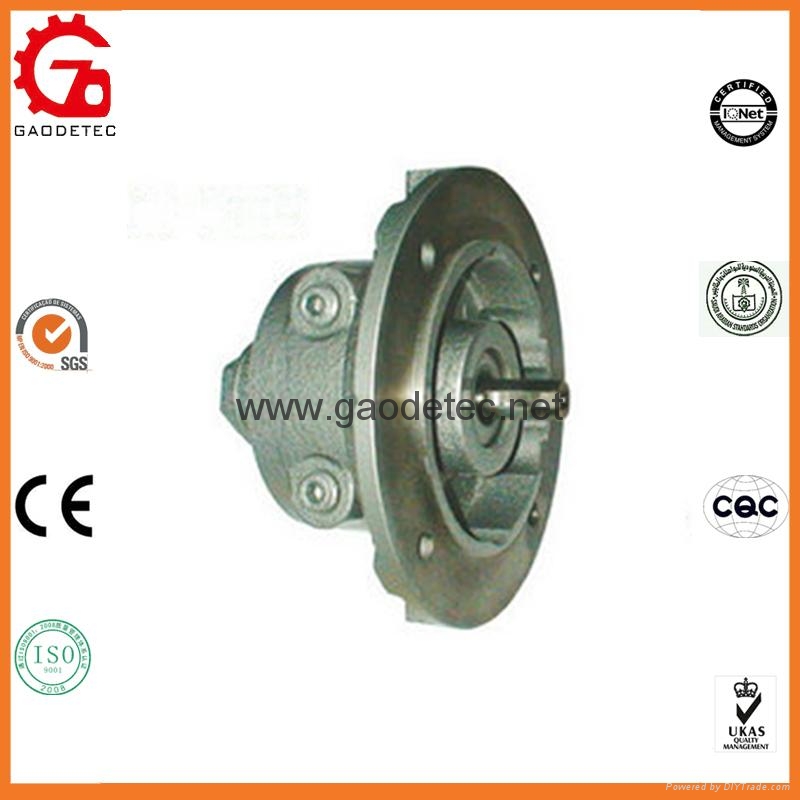

4AM vane air motor
4AM vane air motor

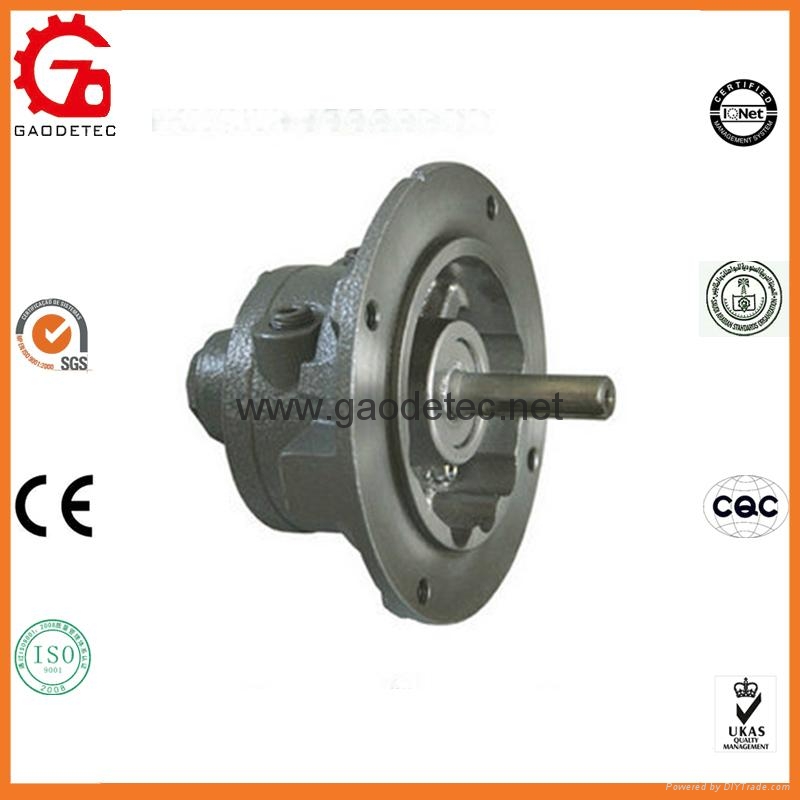

4AM-F110 vane air motor
4AM-F110 vane air motor

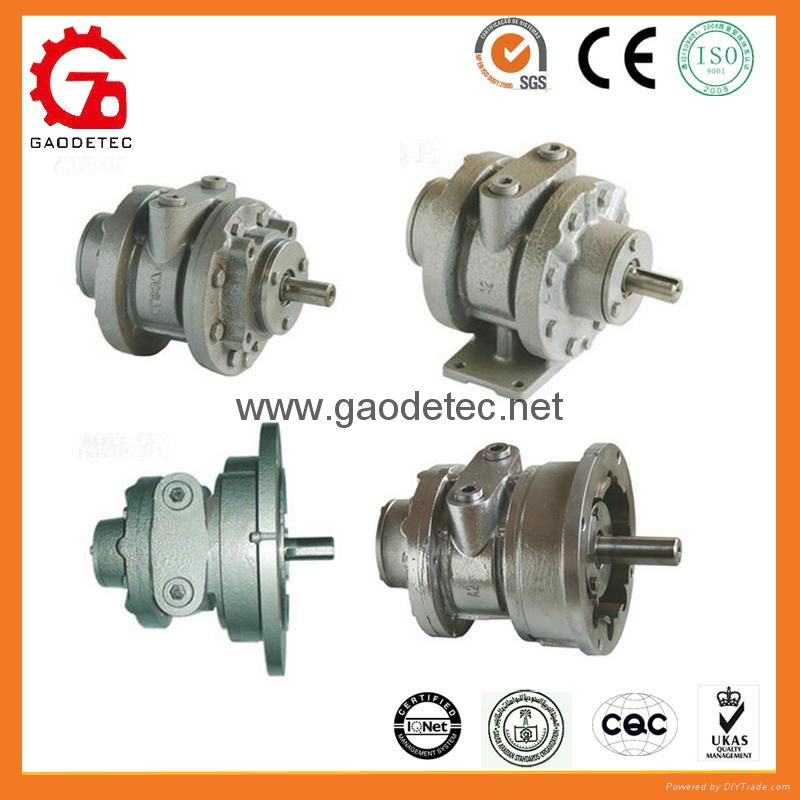

2AM-F114.3-15 vane air motor
2AM-F114.3-15 vane air motor

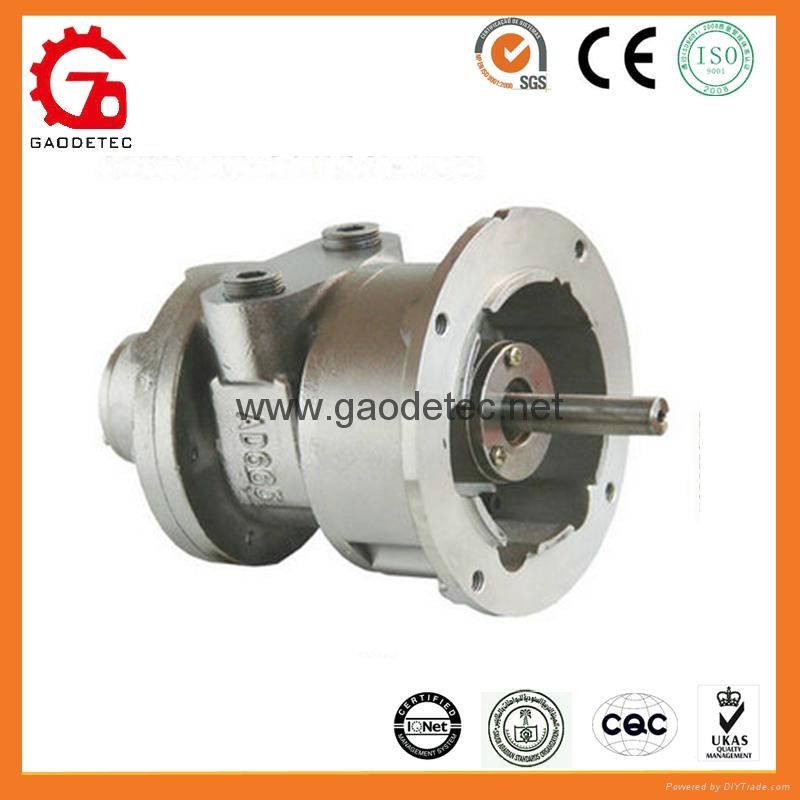

4AM-H vane air motor
4AM-H vane air motor

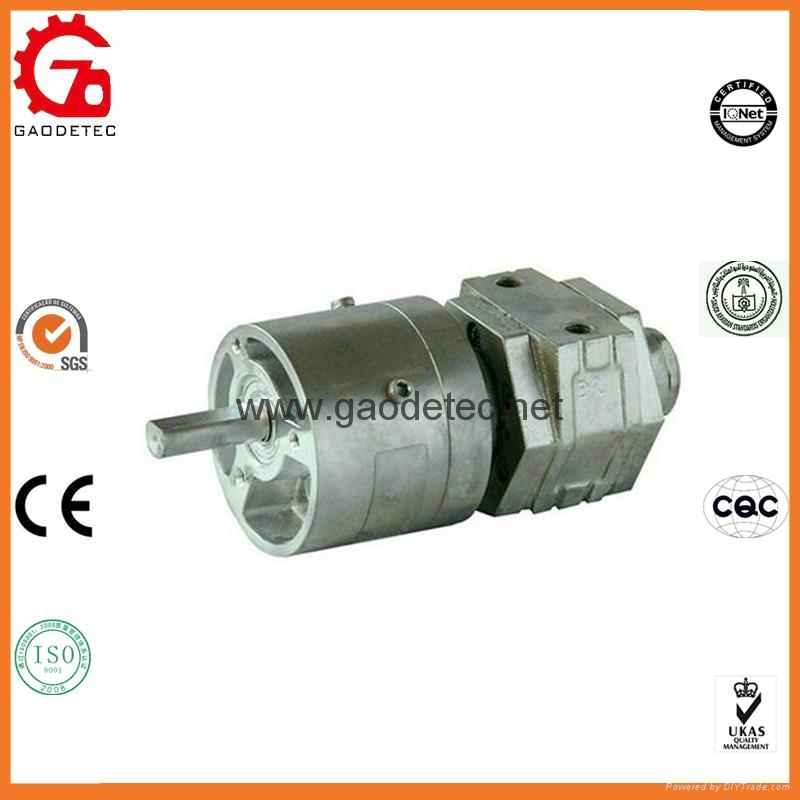

6AM-ARV-54 vane air motor
6AM-ARV-54 vane air motor

6AM-F114.3-158 vane air motor
6AM-F114.3-158 vane air motor

8AM vane air motor
8AM vane air motor

16AM vane air motor
16AM vane air motor

NL32 oilless vane air motor
NL32 oilless vane air motor

1AM vane air motor
1AM vane air motor

4AM stainless steel air motor
4AM stainless steel air motor
