Diesel engine double cylinders piston grout pump station supplier

  • Diesel engine double cylinders piston grout pump station supplier
  • Diesel engine double cylinders piston grout pump station supplier
  • Diesel engine double cylinders piston grout pump station supplier
  • Diesel engine double cylinders piston grout pump station supplier
  • Diesel engine double cylinders piston grout pump station supplier
  • Diesel engine double cylinders piston grout pump station supplier
  • Diesel engine double cylinders piston grout pump station supplier
  • Diesel engine double cylinders piston grout pump station supplier
  • Diesel engine double cylinders piston grout pump station supplier
Model No.︰GGP
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 17999 / pc
Minimum Order︰1 pc
Share on:

 Total 73 Related Items
Prev56789Next

Product Description

Diesel engine double cylinders piston grout pump station supplier

Description

GGP400/700/80/100DPI-D grout station is a combination of mixer, agitator and grout pump in one base frame. It is mainly used to be made bentonite slurry, cement slurry, etc., in the application highway, railway, hydropower, construction, mining and other ground and underground construction.

High speed vortex mixer ensures mix quickly and evenly. Water, cement or bentonite is quickly mixed into a homogeneous slurry. Then the mixed slurry was delivered to the agitator. Grout pump injects from the mixing drum (storage tank). This ensures a continuous mixing and grouting operations. The grouting plant is hydraulic drive with electric motor. Grouting pressure and displacement is adjustable. Compact size and it is easy to operate. It also takes up a small space.



Product Feature

  •  Double cylinders piston pump with single acting to ensure the continuous slurry flowing (small pulse) and not easily leaking compared with the double acting piston pump.
  • Grouting pressure and displacement is adjustable.
  • The function switch between mixer and pulping machine is realized by using squeeze switch.
  • The oil thermometer can automatically control the cooling fan to work within the normal temperature range. If the temperature is too high, the machine will automatically stop working.
  • Full hydraulic drive, three cylinders air cooling diesel engine acted as universal grouting applications.
  • Easy to operate and maintain.
  • Up to 5mm particle size.
  • Air cooling and water cooling for the hydraulic.



Product Specification

We could also customize according to your demands.



Name

Data

Type

GGP400/700/80/100DPI-D grout Station

Mixer

Volume

400L

Speed

1500rpm

Agitator

Volume

700L

Speed

36rpm

 Grouting pump

Pump pressure and output

40bar@80L/min

100bar@40L/min

Dimension

Dimension

2480×1960×1995mm

Weight

1965kg

Payment Terms︰TT / LC / DP / DA
Packing︰standard export packing or as your request
Lead Time︰15
Standards Certificate︰CE.ISO

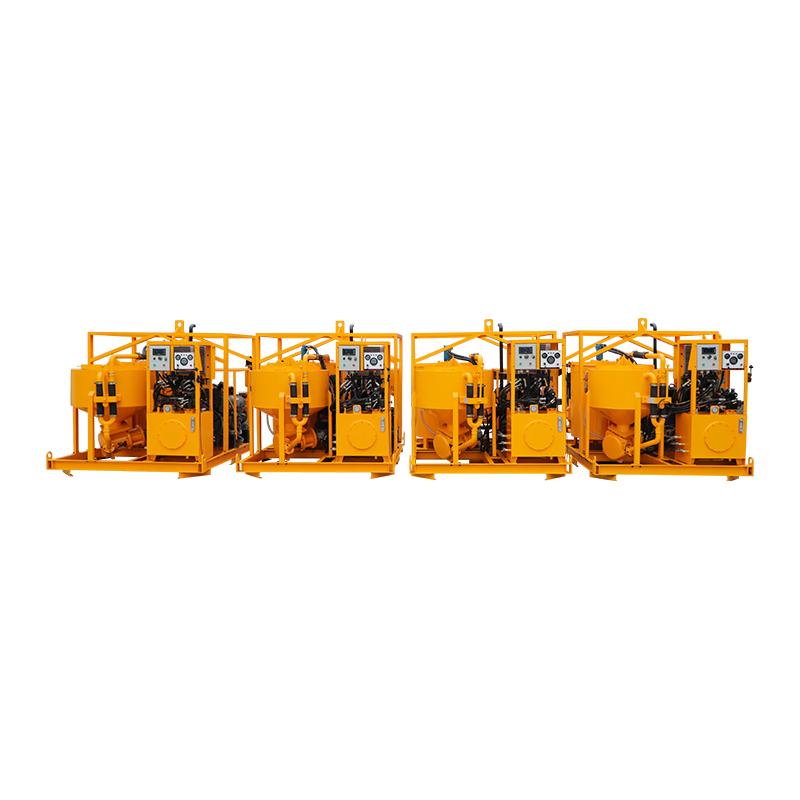

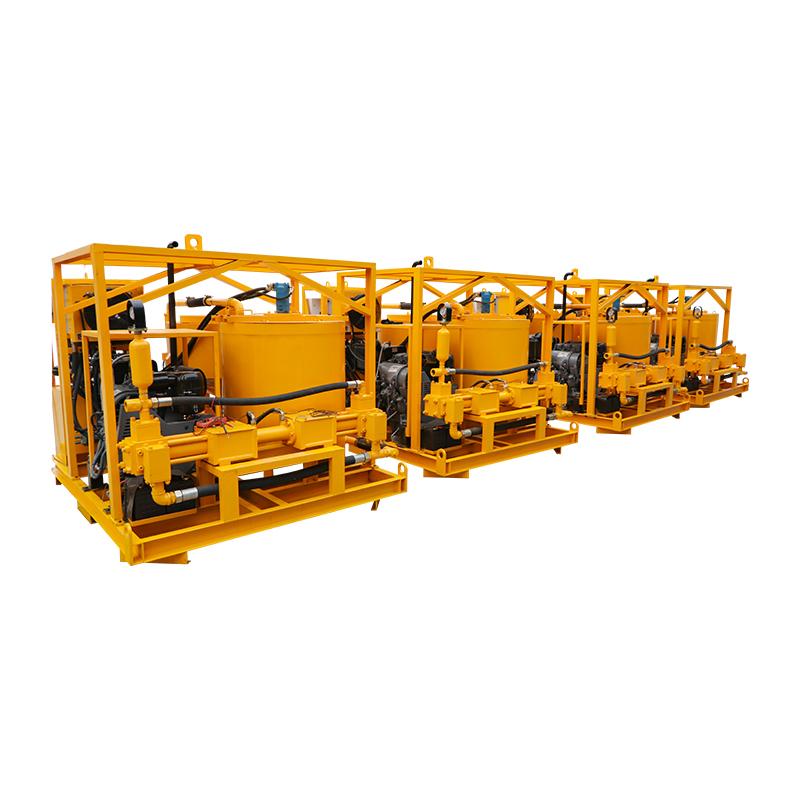

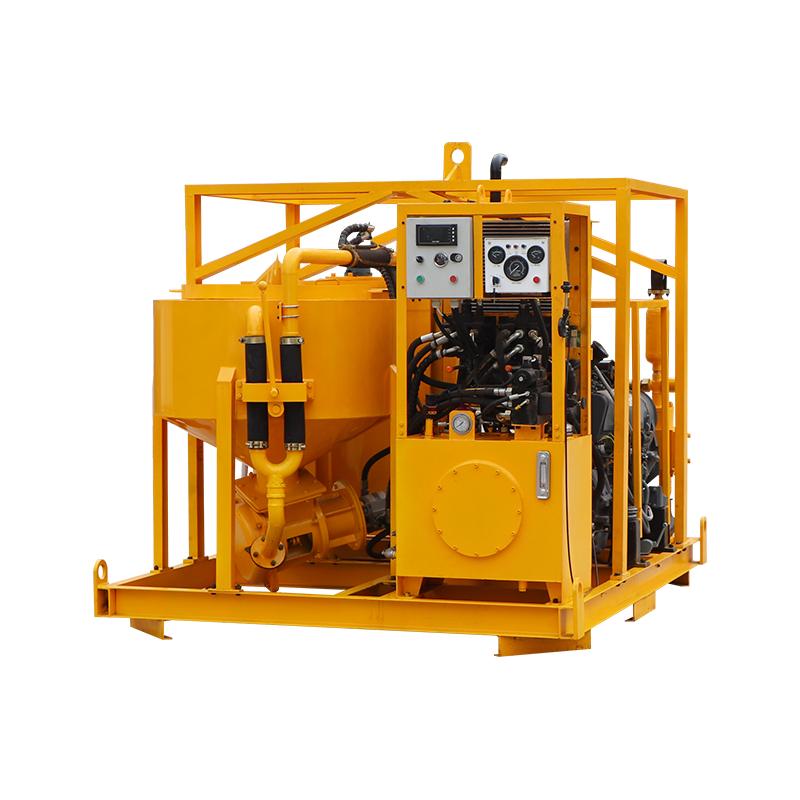

Product Image
