China Supply GGP500/700/100 PI-D Grouting Pump Station

grout pump station
  • grout pump station
  • CE grout plant
  • CE grout plant
  • grout station
  • grout pump station
  • grout pump station
  • grout pump station
  • grout pump station
  • grout pump station
  • grout station
  • grout pump station
Model No.︰GGP500/700/100
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 14500 / set
Minimum Order︰1 set
Share on:

 Total 73 Related Items
Prev6465666768Next

Product Description

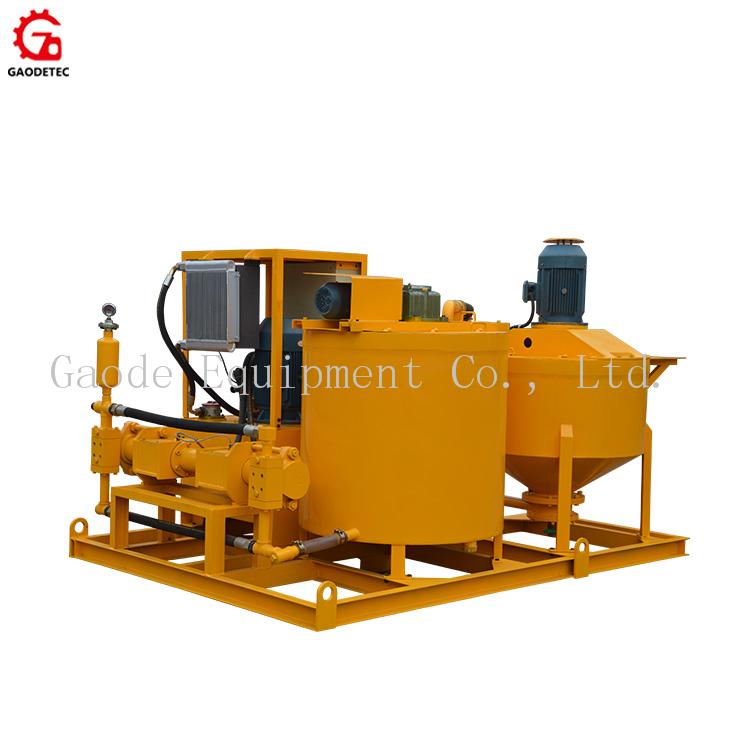

China Supply GGP500/700/100 PI-D Grouting Pump Station

Description:

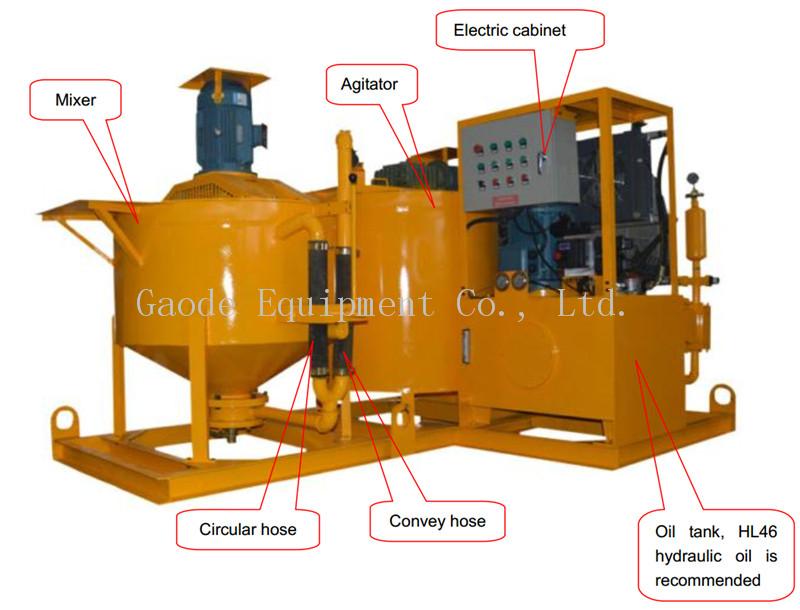

The GGP500/700/100PI-D grout station is combination of mixer, agitator and hydraulic two cylinder piston grout pump in one plant. Mainly suitable for mixing and pumping water, cement, sand, bentonite, filler, clay power, silicates and other additives.

Feature:

1. It is combination of mixer, agitator and hydraulic two cylinders piston grout pump in one base frame, continuous grouting;

2. Pressure and output could be adjustable steplessly;

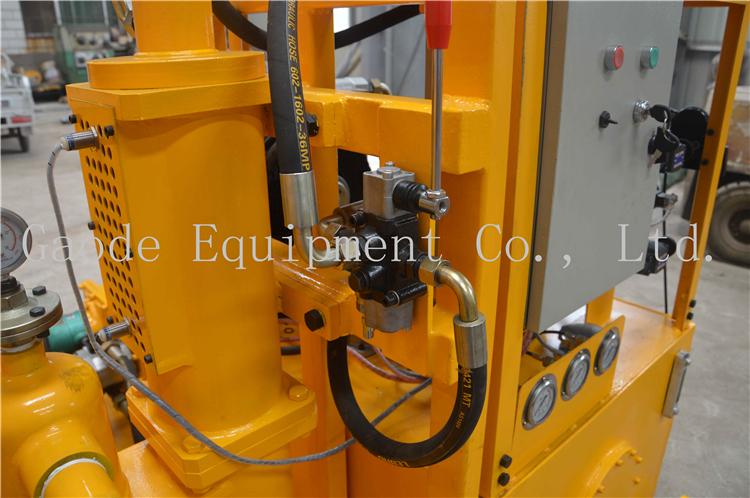

3. Yuken relief valve and directional valve for hydraulic system of grout pump;

4. Butterfly valve of mixer and agitator;

5. Oil temperature gauge can automatically control cooler fan working in normal temperature range, if temperature is too high, the machine will stop work automatically;

6. With metering pump which could metering water;

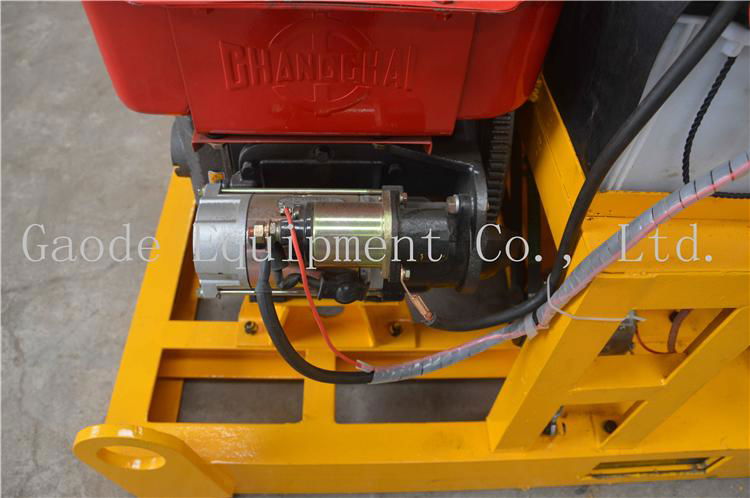

7. Full hydraulic drive, diesel engine.

8. Operation and maintenance are simple;

9. With ISO, CE certificate.

Applications:

  1. Civil Engineering - dam foundations, tunnels, mining, soil nails, tiebacks, earth anchors, cable and rock bolts
  2. Structural – building and bridge restoration, foundation stabilization, foundation raising, soil compaction grouting; soil & rock grouting
  3. Construction - pavement under sealing, slab jacking and slab raising
  4. Marine - underwater foundations, piers, breakers, shoreline foundations
  5. Mining - tunnel lining, contact grouting, shaft waterproofing
  6. Utilities - encasements, waterproofing, slope line grouting
  7. Geotechnical - deep well casing, monitor wells, well sealing and abandonment

Grouting Pump Station Technical data:

Description

Data

Grout Station type

GGP500/700/100 PI-D

Mixer Volume

500L

Mixer production(w/c ratio=1)

10 m3/h

Mixing time

3min per batch

Suitable W/C Ratio

0.5 to 1

Rated Rev.

1500rpm

Agitator Volume

700L

Agitator Speed

36rpm

Grout Pump Type

Hydraulic Two Cylinders Piston Pump

Grout pump output(Max.)

0-100L/min

Grout pump work pressure

0-50Bar

Diesel Engine Power

25kw, 36hp

Grout Station Overall dimension

2900x1960x1550mm

Grout Station Weight

1790kgs

 Contact Supplier:

Many thanks for visiting our web, we can supply grout station for you. Before we send quotation, please let me know the following question:

1. How about the flow and pressure of the pump you want, please?

2. How about the water and cement ratio, does any sand in?

3. About the power: electric (voltage and frequency) or diesel?

Please tell us your requirements and we will provide you with the corresponding product parameters and quotations. We have many standard models for your option, and we also could customize as per your requirement. If you have any questions, please contact us.

Payment Terms︰TT/LC
Packing︰plastic wrap, plywood case, free-fumigation, standard export packing. as shown below. Or customized.
Lead Time︰in stock. common type 7 working days once confirm
Standards Certificate︰CE ISO
Product Image

grout pump station
grout pump station

CE grout plant
CE grout plant

CE grout plant
CE grout plant

grout station
grout station

grout pump station
grout pump station

grout pump station
grout pump station

grout pump station
grout pump station

grout pump station
grout pump station

grout pump station
grout pump station

grout station
grout station

grout pump station
grout pump station
