GDB 180/10 grouting pump for curtain grouting

curtain grouting
  • curtain grouting
  • plunger pumps
  • anchor grouting pump
  • anchor grouting pump
Model No.︰GDB180/10
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 6200 / pc
Minimum Order︰1 pc
Share on:

 Total 33 Related Items
Prev2526272829Next

Product Description

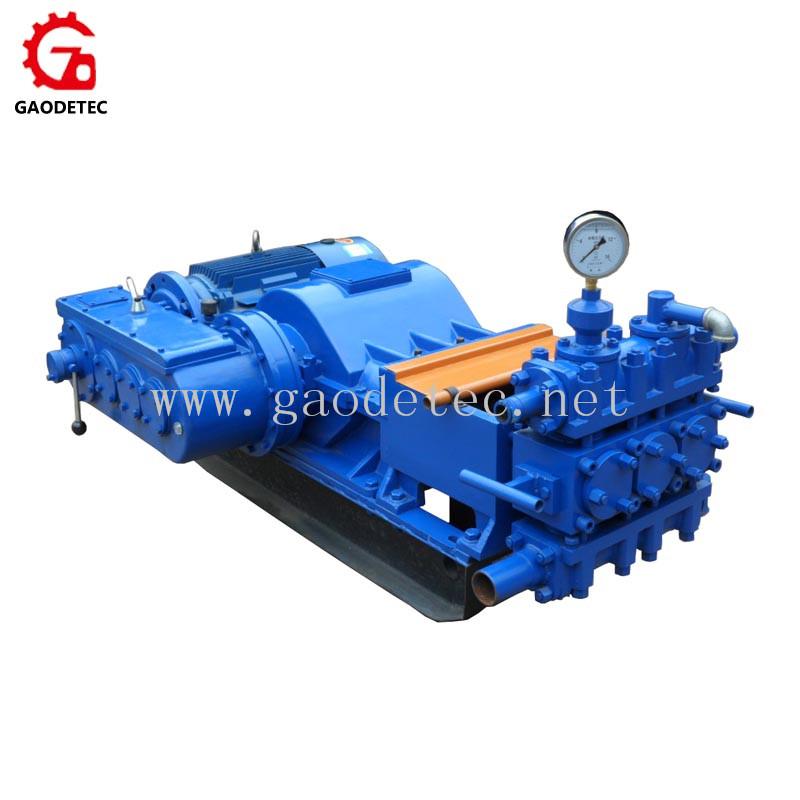

GDB180/10 grouting pump for curtain grouting

Please copy the link to the product website for more products and information

Our website: www.gaodetec.net

Description:

GDB180/10  series variable crankshaft grouting pumps are a kind of the special equipment which are applied in injecting cement paste and mortar in the injecting project.

They are mainly used in curtain grouting of dam foundation, consolidation grouting, anchor grouting and large displacement distance conveying slurry, etc. The pumps have a strong ability to adapt high density & high pressure curtain grouting (work pressure >5 Mpa) and grouting mortar (diameter<2mm). They can widely used in foundation construction project.

Feature:

1. maintenance and changing the components are convenient.

2. The four-gear variance can satisfy methods of multiplexing and technology and the ratio of efficiency to price is optimum to save money.

3.adopting interchangeable parts, such as link lever in the car ,bearing bush ,sheet steel in the autocycle,friction disc and so on.

4.The build-in enclosed construction which combined the clutch and the gearbox have strongly adaptability in the hard condition.

Technical data:

model

GDB180/10

type

single acting pump with three-cylinder

plunger   diameter

55mm

rotating   speed

237r/min

184r/min

130r/min

83r/min

theoretical   displacement

150L/min

110L/min

80L/min

50L/min

pressure

6Mpa

9Mpa

11Mpa

14Mpa

medium   ratio(water:ash:sand)

1:2:2

motor power

18.5kw

inlet pipe diameter

64mm

outlet pipe diamter

25(32)mm

weight

700kg

dimension(L*W*H)

1550*850*685mm

Contact Supplier:

Many thanks for visiting our web, we can supply grout pump for you. Before we send quotation, please let me know the following question:


1. What's pressure and flow of the pump you need ?
2. The water cement ratio, any sand in ?
3. About the power: electric (voltage and frequency) or diesel or air motor ?


We have many standard models for your option, and we also could customize as per your requirement. Please tell us your requirements and we will provide you with the corresponding product parameters and quotations. If you have any questions, please contact us.

Payment Terms︰T/T L/C
Packing︰plastic wrap, plywood case, free-gumigation, standard export packing. as shown below. Or customized.
Lead Time︰in stock. common type 7 working days after confirm
Standards Certificate︰CE ISO
Product Image

curtain grouting
curtain grouting

plunger pumps
plunger pumps

anchor grouting pump
anchor grouting pump

anchor grouting pump
anchor grouting pump
