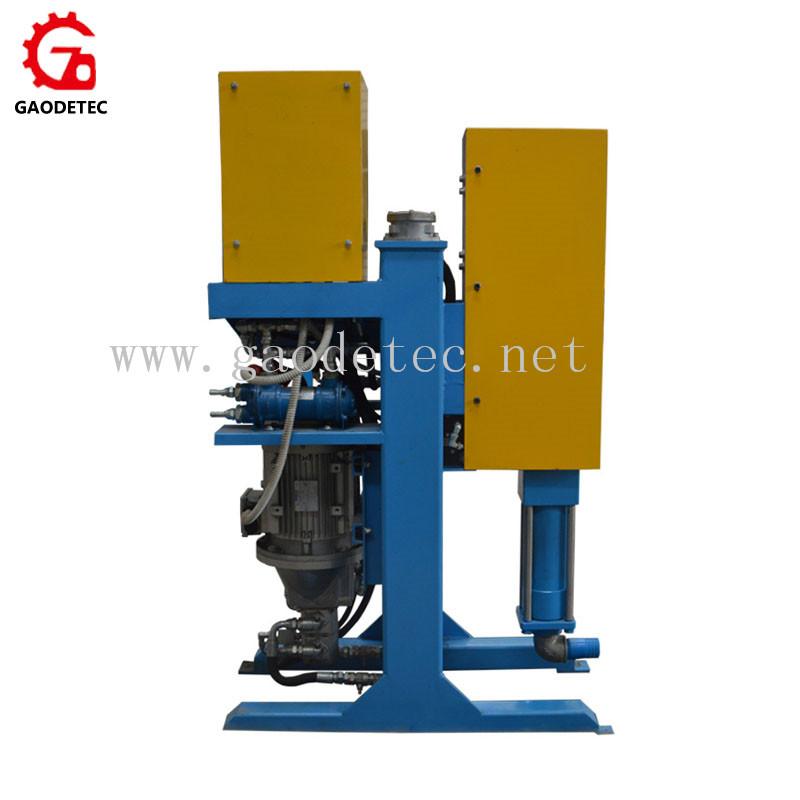

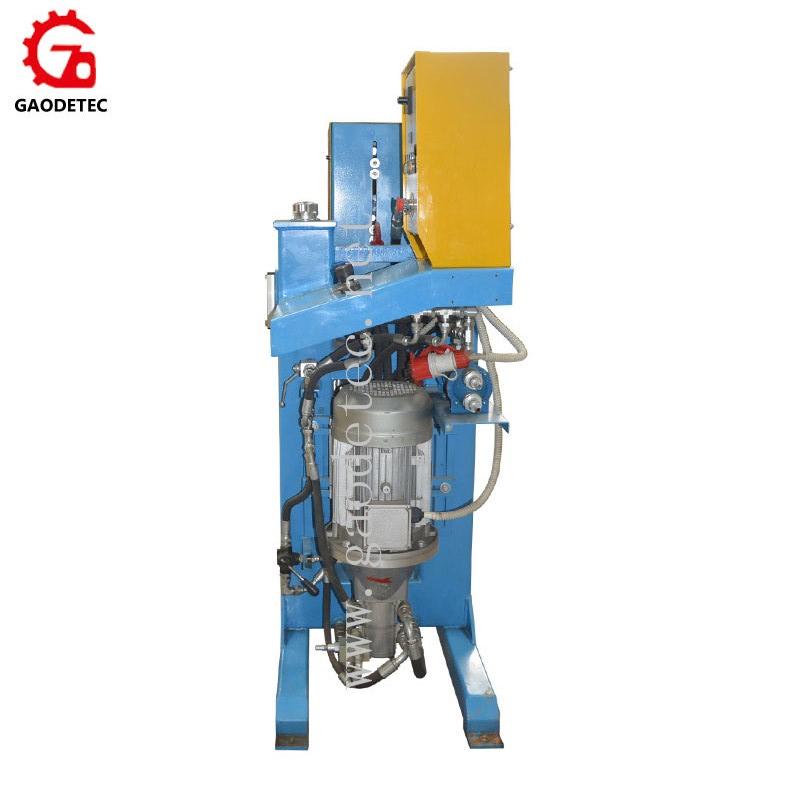

GDH75/100 High Pressure Vertical Grouting Pump

curtain grouting
  • curtain grouting
  • backfill grouting
  • compaction grouting
  • backfill grouting
  • backfill grouting
  • backfill grouting
  • backfill grouting
  • backfill grouting
  • backfill grouting
  • curtain grouting
Model No.︰GDH75/100
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 9980 / pc
Minimum Order︰1 pc
Share on:

 Total 33 Related Items
Prev2324252627Next

Product Description

The GGH 75/100 high pressure vertical grouting pump

Please copy the link to the product website for more products and information

Our website: www.gaodetec.net

Description:

The GGH75/100 high pressure vertical grouting pump is designed and made for permeation grouting, compaction grouting, backfilling grouting, curtain grouting, high pressure split grouting etc, grouting methods.

Grouting material: cement mixture, mortar/plaster, bentonite and other additive.

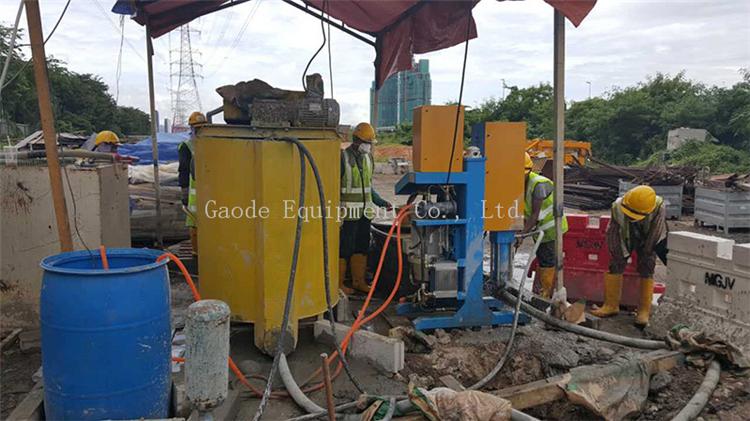

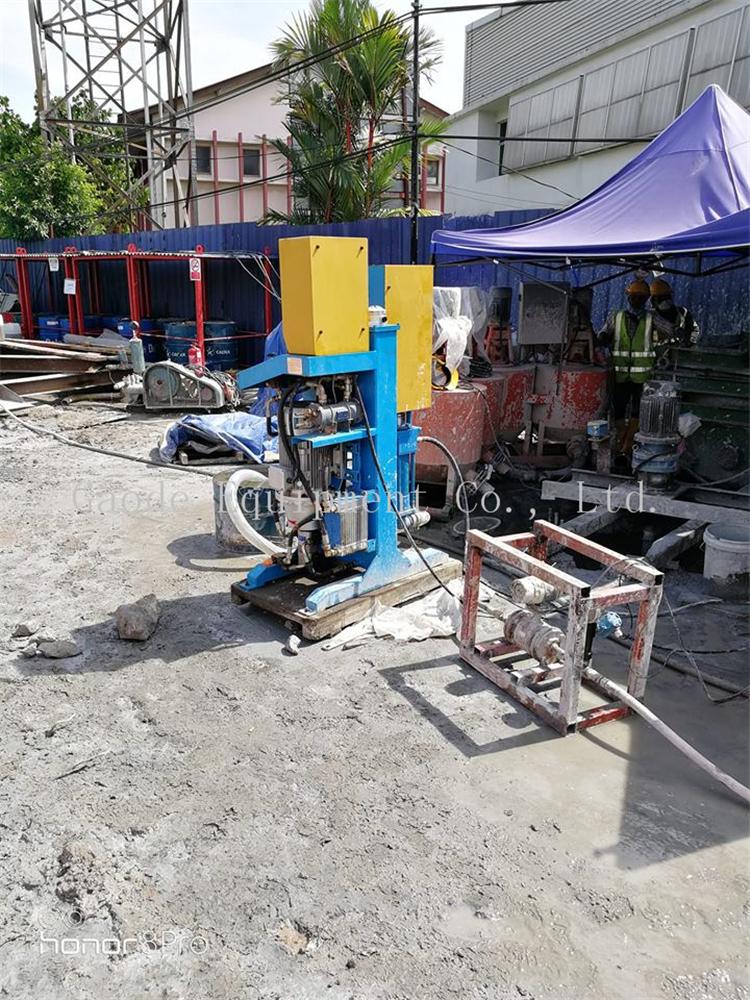

Application:

Ø  Civil Engineering - dam foundations, tunnels, mining, soil nails, tiebacks, earth anchors, cable and rock bolts

Ø  Structural – building and bridge restoration, foundation stabilization, foundation raising, soil compaction grouting; soil & rock grouting

Ø  Construction - pavement under sealing, slab jacking and slab raising

Ø  Marine - underwater foundations, piers, breakers, shoreline foundations

Ø  Mining - tunnel lining, contact grouting, shaft waterproofing

Ø  Utilities - encasements, waterproofing, slope line grouting

Ø  Geotechnical - deep well casing, monitor wells, well sealing and abandonment

Item

GGH75/100PI-E grout pump

Piston diameter

100mm

Piston stroke

150mm

Adjustable pressure ( low pressure)

0-50Bar/725psi

Adjustable flow rate( low pressure)

0-75L/min

Adjustable pressure ( high pressure)

0-100Bar/1450psi

Adjustable flow rate ( high pressure)

0-40L/min

Discharge pipe size

M27x2

Inlet pipe size

G2’’

Power unit

7.5kW

Chassis

Skid

Weight

390Kg

Overall dimension

1040x550x1650mm

Note: Chassis: Skid or Tyre

We also could according to your demands to customize

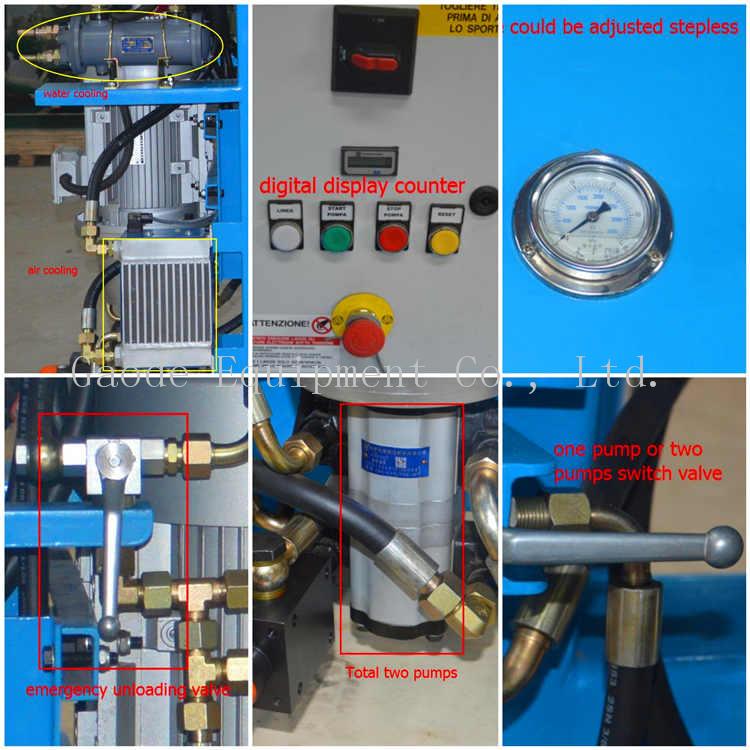

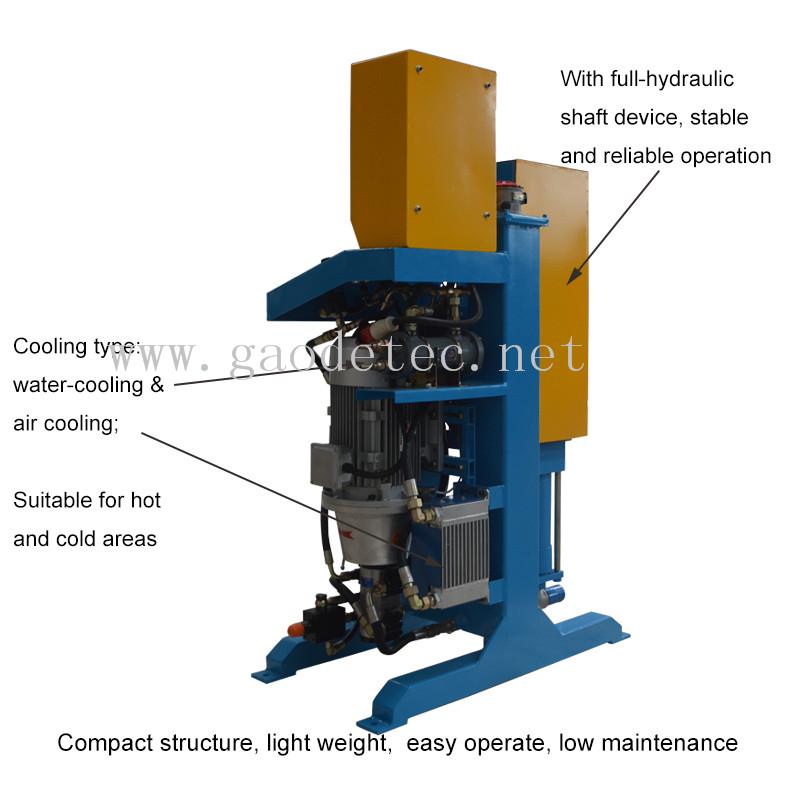

Features:

  1. Compact structure, light weight,  easy operate, low maintenance cost;
  2. With digital display counter: it can display at any time, and can accumulate work times;
  3. Flow and pressure can be adjusted step-less;
  4. Equipped with emergency unloading valve: in case of an emergency, it can be load-off instantly;
  5. In low pressure, it will be flow-converging of  two pumps; In high pressure, there is only one pump work. Low pressure and large flow, high pressure and low output;
  6. With full-hydraulic shaft device, stable and reliable operation;
  7. Cooling type: water-cooling and air cooling; Suitable for hot and cold areas.

 Contact Supplier:

Many thanks for visiting our web, we can supply grout pump for you. Before we send quotation, please let me know the following question:


1. What's pressure and flow of the pump you need ?
2. The water cement ratio, any sand in ?
3. About the power: electric (voltage and frequency) or diesel or air motor ?


We have many standard models for your option, and we also could customize as per your requirement. Please tell us your requirements and we will provide you with the corresponding product parameters and quotations. If you have any questions, please contact us.



Payment Terms︰TT
Packing︰plastic wrap, plywood case, free-gumigation, standard export packing. as shown below. Or customized
Lead Time︰in stock. common type 7 working days after confirm
Standards Certificate︰CE ISO

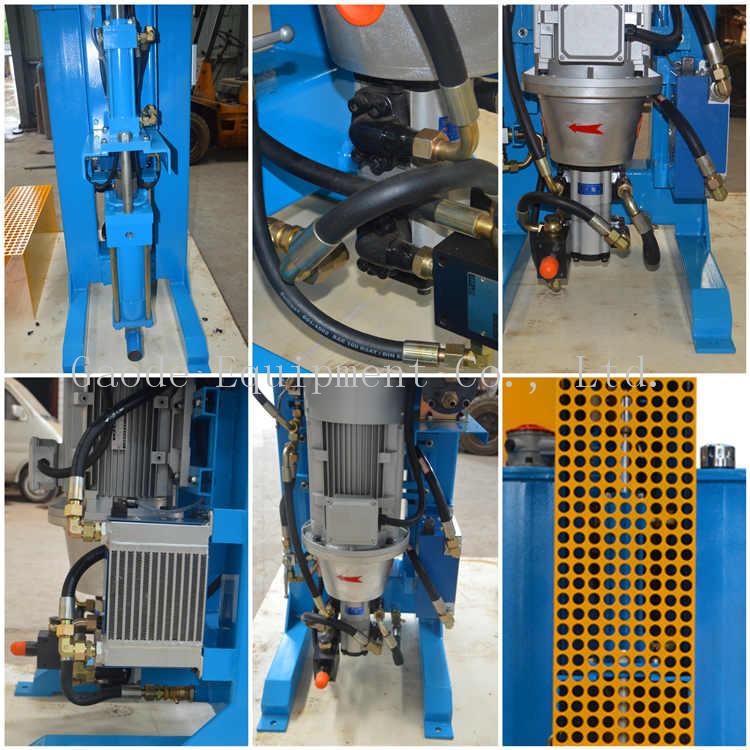

Product Image
