GGP250/700/75PI-E Cement Grout/Injection Plant
Description:

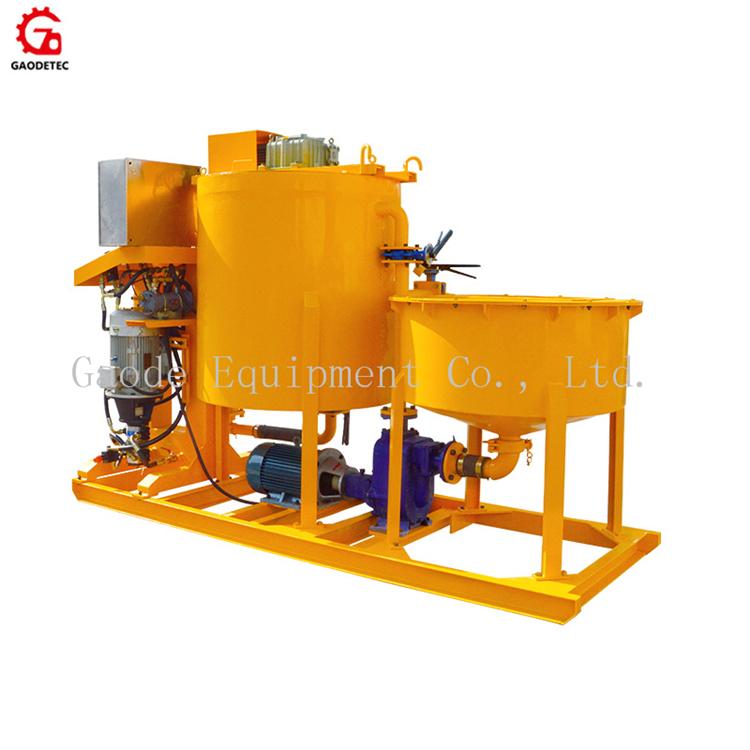

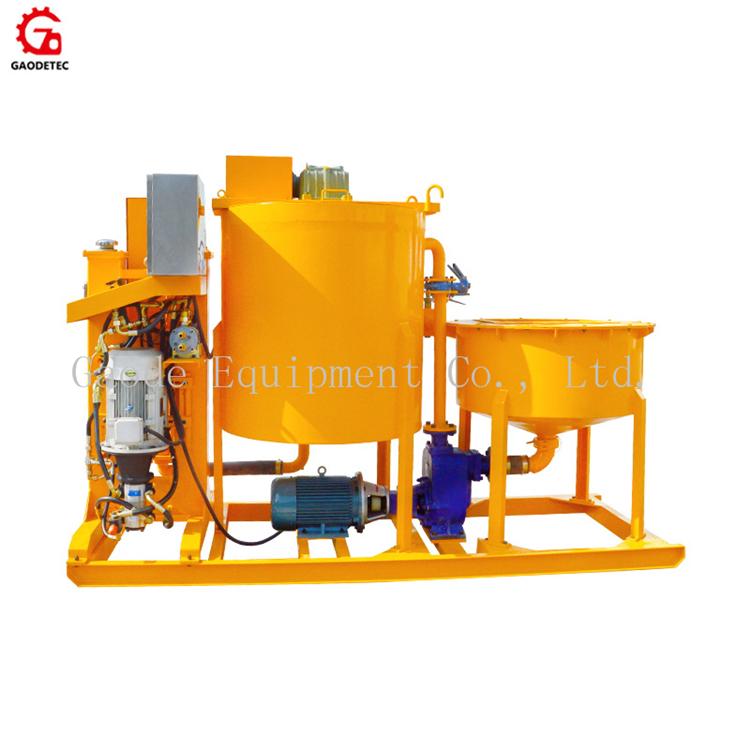

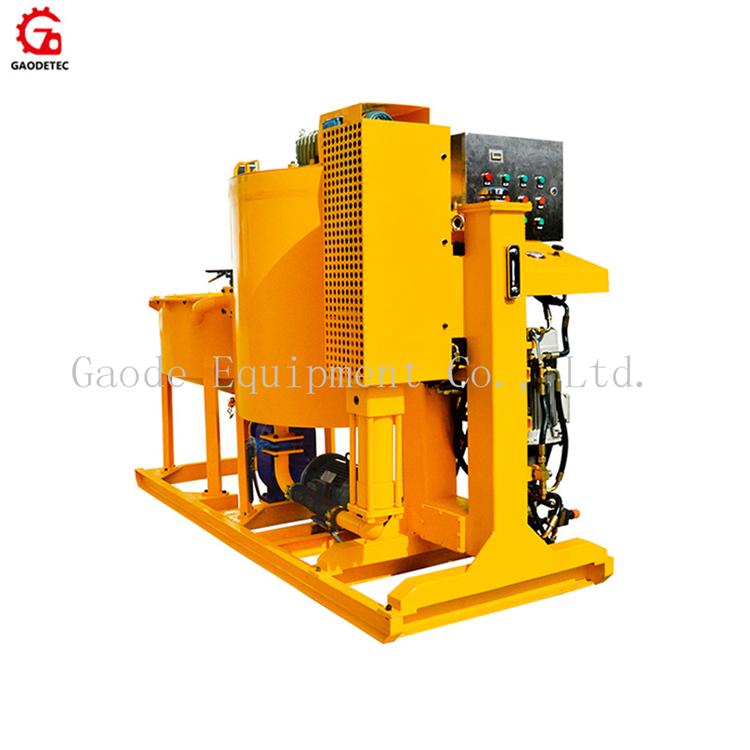

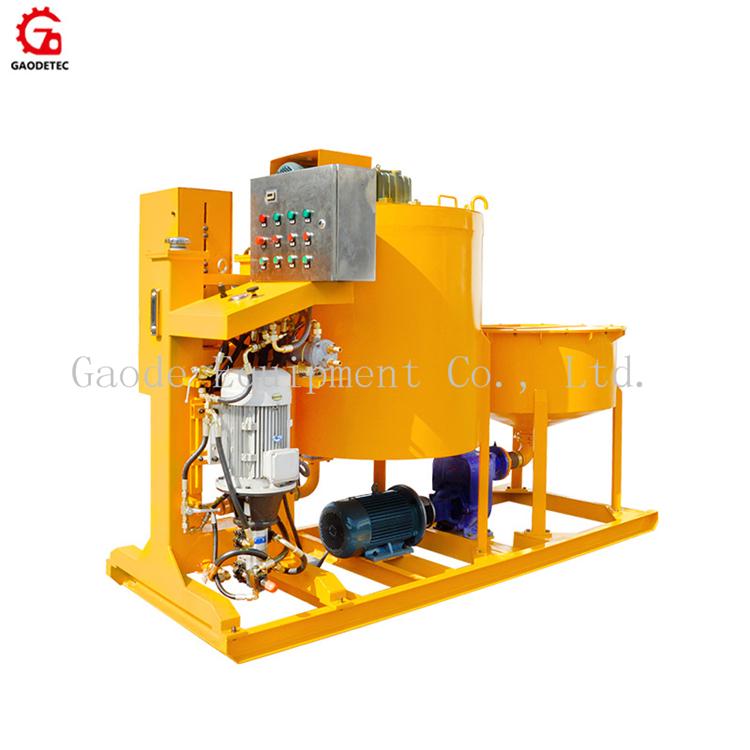

GGP250/700/75PI-E Cement Grout Injection Plant is a combination of mixer, agitator and grout pump in one base frame. It is mainly used to be made bentonite slurry, cement slurry, etc, in the application highway, railway, hydropower, construction, mining and other ground and underground construction.
High speed vortex mixer ensures mix quickly and evenly. Water, cement or bentonite is quickly mixed into a homogeneous slurry. Then the mixed slurry was delivered to the agitator. Grout pump injects from the mixing drum (storage tank). This ensures a continuous mixing and grouting operations. The grouting plant is hydraulic drive with electric motor. Grouting pressure and displacement is adjustable. Compact size and it is easy to operate. It also takes up a small space.
Feature:
- One and Two-oil gear pump to get large output and high pressure in one pump
- Single Piston and two-acting;
- Vertical type pump with compact size
- Hydraulic drive Safely releasing pressure when pumping block
- Ball valve
- up to 5mm particle size
- Low flow pressure surge system
- Lower charging material height for mixer
- High-speed Colloidal Grout Mixer
Specification:
Description
|
Data
|
Grout Station model
|
GGP250/700/77PI-E
|
Dimensions
|
2710*1100*1820mm
|
Weight
|
1060kg
|
Mixer
|
Capacity
|
250L
|
Recycling Pump
|
1100L/min
|
Suitable water/cement ratio
|
≥0.5:1
|
Motor Power
|
7.5Kw
|
Rated Rev.
|
1450rpm
|
Agitator
|
Capacity
|
700L
|
Motor model
|
1.5KW
|
Rated Rev.
|
36rpm
|
Pump(vertical compact hydraulic grout pump, two oil gearbox)
|
Output/pressure
|
Low pressure:0-75L/min, 0-50bar
High Pressure:0-40L/min, 0-100bar
|
Power
|
7.5Kw
|
Contact Supplier:
Many thanks for visiting our web, we can supply grout station for you. Before we send quotation, please let me know the following question:
1. How about the flow and pressure of the pump you want, please?
2. How about the water and cement ratio, does any sand in?
3. About the power: electric (voltage and frequency) or diesel?
Please tell us your requirements and we will provide you with the corresponding product parameters and quotations. We also could customize as per your requirement. If you have any questions, please contact us.
