GMP40/10-H Plaster Spray Pump

GMP40/10-H Hose Plaster Spray pump
  • GMP40/10-H Hose Plaster Spray pump
  • Detailed parts of GMP40/10-H cement plastering machine
  • Application of GMP40/10-H plaster spray pump
  • Detailed pictures of GMP40/10-H mortar spraying pump
  • Packing and delivering of GMP40/10-H mortar pump machine
Model No.︰GMP40/10-H
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 5100 / set
Minimum Order︰1 set
Share on:

 Total 12 Related Items
Prev12345Next

Product Description

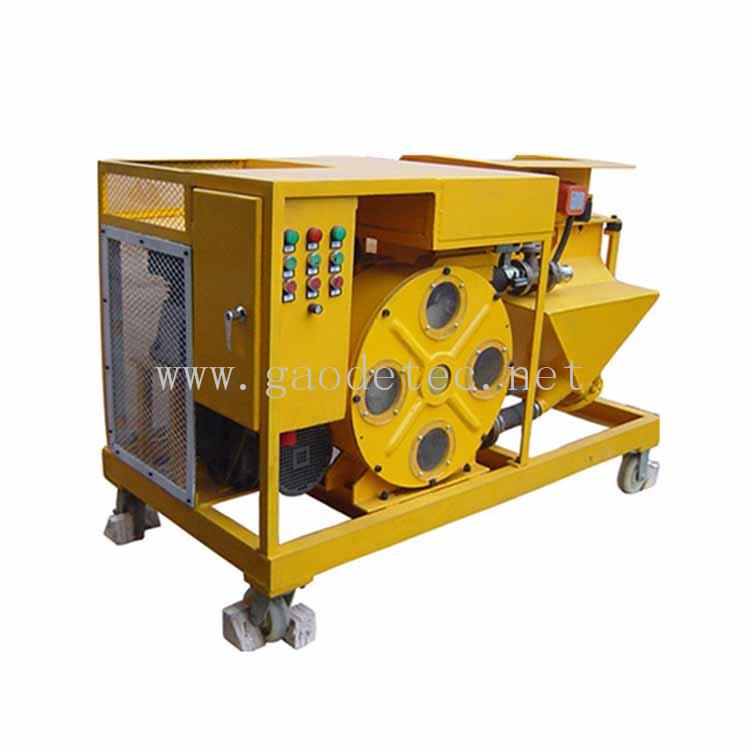

 GMP40/10-H Plaster Spray Pump

Specification: this pump is designed as the combination of GH38-430 hose pump (peristaltic type), mini air compressor and frequency converter.

GH38-430 HEAVY-DUTY HOSE PUMP TECHINCAL DATA

Item

Description

Remarks

Rotor Dia.(D)

430mm



Hose ID

38mm/1.5inch



Rotor Rev.

15-33rpm



Rated Output/Flow

18-40L/min



Rated pressure

10 bar



Motor Power

3 KW /4hp, 3 phase, 380v, 50 Hz,IP55

*

Suck lift

5 meter



Hose material

NR(Natural Rubber)



Overall Dimension

1600x800x1060mm



Weight

440kg



Note:1,the gearbox is heavy -duty Helical-bevel gear                                                                             2,*WEG or China domestic electric motor



Mini Air Compressor

Rated output

300L/min

Rated pressure

7 bar



Frequency Converter

The basic version is one made in China, if you need Siemens, SEW or ABB, please check it from us.



Gearbox

Rigid tooth flank helical gear



Nozzle

Specially design to get continuous spaying flow

Payment Terms︰TT/LC
Packing︰Standard export wooden case
Lead Time︰Within 15 working days after receiving payment.
Standards Certificate︰ISO, CE
Product Image

GMP40/10-H Hose Plaster Spray pump
GMP40/10-H Hose Plaster Spray pump

Detailed parts of GMP40/10-H cement plastering machine
Detailed parts of GMP40/10-H cement plastering machine

Application of GMP40/10-H plaster spray pump
Application of GMP40/10-H plaster spray pump

Detailed pictures of GMP40/10-H mortar spraying pump
Detailed pictures of GMP40/10-H mortar spraying pump

Packing and delivering of GMP40/10-H mortar pump machine
Packing and delivering of GMP40/10-H mortar pump machine
